Presstång APi 35  80KN / >300mm²
Presstång APi 35 / 80KN>300mm²

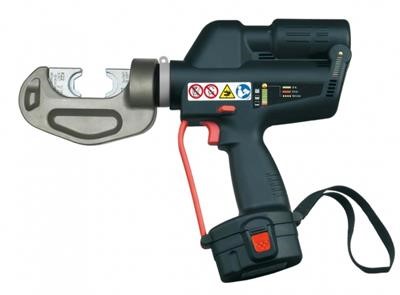

Batt.-powered compression tool

Part No 7584120
Weight (kg) 5.4
Price, VAT excl.32795
Price Incl. VAT40993.75
Base price40993.75
SEK
In stock
Product question
Buy

What would you like to know about Batt.-powered compression tool?

Send

Description

  • C-head, ideally for continous quick working (side loading of connectors)
  • Ideal for series-production
  • Extremely quick processing due to a two-stage hydraulicpump
  • 360° revolving head
  • Application range from 6 up to 300 mm²
  • Integrated pressure relief valve, false pressings cause no damage at tool nor dies
  • Lithium-ionen-battery without memory effect, self-discharges very low
  • High capacity due to 3.0 Ah battery
  • Eyelet balancer and carrying strap available
  • Ergonomic handle with a balanced weight distribution for sure work free of tiredness
  • Case, handle shell and pressure discharge key completely from isolated and push-firm plastic material
  • Integrated electronic module for:
  • Permanent accumulator-loading state control
  • Supervision of the working process and state announcement
  • Announcement of the next service interval
  • Mistake announcement at possible disturbance

Technical Data

  • Press capacity ca 80 kN
  • Operating voltage 14,4 Volt
  • Tool measurements 95x440x310 mm
  • Weight 5,4 kg (1nkl Akku)
  • Battery charger 7,2-18 V
  • Charging time ca 50minutes



More ...Close

Accessories

Number of articles 22
Dies hexagonol -shape  Cu 6mm²
Pris ekl. moms1320
Pris1650
Buy
Dies hexagonol -shape  Cu 10mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 8 hexagonol -shape Cu 16mm²
Pris ekl. moms1320
Pris1650
Buy
Dies hexagonol -shape
Pris ekl. moms1320
Pris1650
Buy
Dies12 hexagonal Cu 35mm²,Al 16mm +25mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 14 hexagonol  Cu 50mm², Al 35mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 16 hexagonol  Cu 70mm² ,Al 50mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 18 hexagonol  Cu 95mm² , Al 70mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 20 hexagonol  Cu 120mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 22 hexagonol  Cu 150mm²,Al 95+120mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 25 hexagonol  Cu 185mm² ,Al 150mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 28 hexagonol Cu 240mm² , AL 185mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 32 hexagonol  Cu 300mm² , Al 240mm²
Pris ekl. moms1320
Pris1650
Buy
Dies 34 hexagonol  Al 300mm²
Pris ekl. moms1320
Pris1650
Buy
