Rälsslipmaskin FCS-MPR 4000 P
Rälsslipmaskin FCS-MPR 4000 P

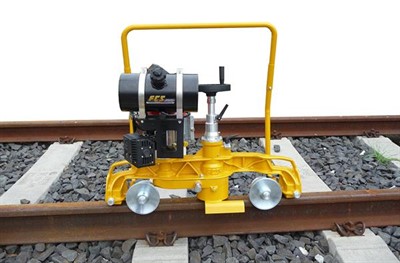

Rail Head Grinding Machine FCS-MPR 4000 P 4 stroke petrol

Part No 58692230
Weight 68
E-mail for price
To orderTo order

Petrol engine.
Designed to make the re-profiling of the rail head after welding.

It is equipped with a lightweight petrol engine, which involves a low fuel consumption.
It also has a continous forced cycle system of lubrification and carburation, which allows to tilt the machine by 90° and therefore the grinding of all the rail head.
The transmission from the engine to the grinding stone happens thanks to a V-belt with a tensioner.
The protected action of the belt, the grinding wheel and a comfortable steering bar, with inserted stop button motor, guarantee maximum safety and minimal effort for the operator.

The machine is also equipped with: two rollers for longitudinal displacement on the rail, two lateral supports which ensure stability during operation, handwheel adjustment depth of grinding with a graduated scale, block and guide rod for tilting machine.


Technical data
Petrol engine
4,7 kW
5000 rpm
850x1000x990 mm
68 kg
