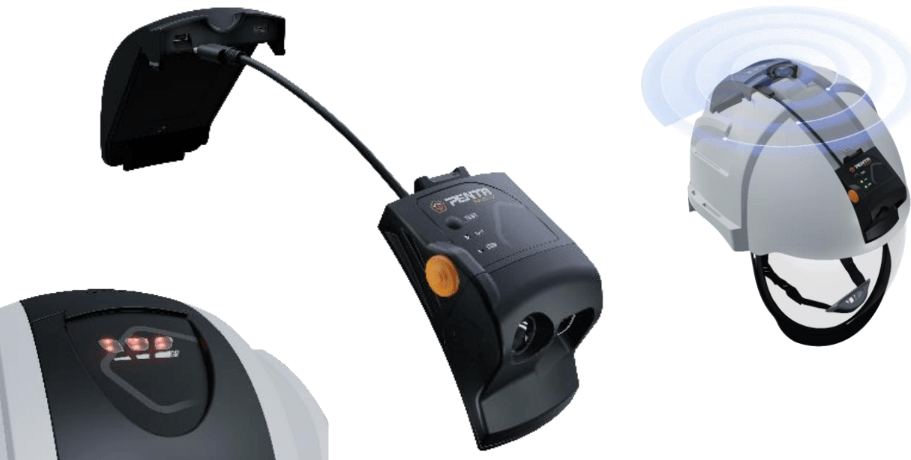

VEA-3-L1 to L5-BK is an integrated personal voltage alarm with a headlamp for VISARC helmets, designed to warn when in proximity to energized equipment. It increases safety for electricians through early warning via both sound and light in hazardous electrical environments.
-
360° Detection: The device detects electric fields all around the user, eliminating the risk of incorrect installation or "blind spots."
-
Smart Mute Function: Enables quiet work at the job site while the device remains vigilant and immediately reactivates the alarm if the electric field increases.
-
Dual Light Beams: Equipped with both a focused beam for remote inspection and a wide beam for close-range work, providing optimal visibility in all tasks.
-
Safety Position Confirmation: The system confirms with audible beeps that the face shield and lateral protection are in the correct position, ensuring maximum protection.
-
Extractable Battery Pack: Extends operating time and can easily be charged separately from the helmet.
The VEA-3 series combines voltage detection and lighting in a compact unit mounted directly onto the electrician's safety helmet. By warning with intense red LEDs and audible signals, the user is protected against human error, involuntary movements, or the unexpected return of voltage in the network.
The system is designed to be balanced and comfortable during long shifts, without the need for cumbersome adapters or headbands that can slip. The rear red position lights are continuously lit when the lamp is active, making the operator easily visible to colleagues even in dark environments.
A key technical feature is the device's ability to filter out electromagnetic interference, ensuring the alarm only reacts to actual electric fields. This creates a safe working environment where the operator can rely on the equipment's precision at critical moments.
The product is rigorously tested against strict requirements for arc-flash and dielectric strength, making it a reliable tool for professionals. Its robust construction and simple operation make it an essential safety upgrade for work within power distribution and industry.
Personal voltage alarm:
-
360° detection of electric field 50 & 60 Hz around the worker.
-
Detects the level of electric field. It does not measure the distance of the source of the electric field.
-
Higher is the voltage, bigger is the distance of detection.
-
Self-test: checks all the circuits and the battery voltage.
-
Range of use up to 400 kV environments.
-
Sound level of audible signal: 55 dB (1m). The perception of loudness can be affected by surrounding noise.
Headlamp:
-
CREE XPG-3 led technology.
-
5 lamp positions depending the use.
-
Housing material: ABS.
-
Weight without battery: 185g.
-
Battery technology: Lithium polymer.
-
Battery capacity: 4000mAh.
-
USB rechargeable (micro-USB).
-
Battery level and in-charge dedicated indication.
-
Waterproof level: IP65 (fully protected against dust and water jets).
-
Designed for outdoor and indoor use.
-
Operating temperature: -10° to +55° C.
-
Humidity: 96 % max.
-
Delivered with a black central crest (other color for color management available on request) and USB charging cable.
