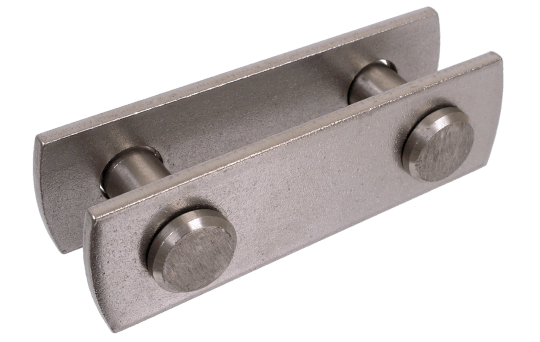

Two-pin clevis link with bolt 13 – reliable connection solution
Two-pin clevis link with bolt 13 in stainless steel, designed for secure connection and load handling in overhead contact and railway applications. Compact and durable construction with high mechanical strength and long service life.
Key benefits:
- Compact and robust construction
- High mechanical strength
- Corrosion-resistant materials
- Secure two-point connection
- Suitable for overhead contact systems
Product description:

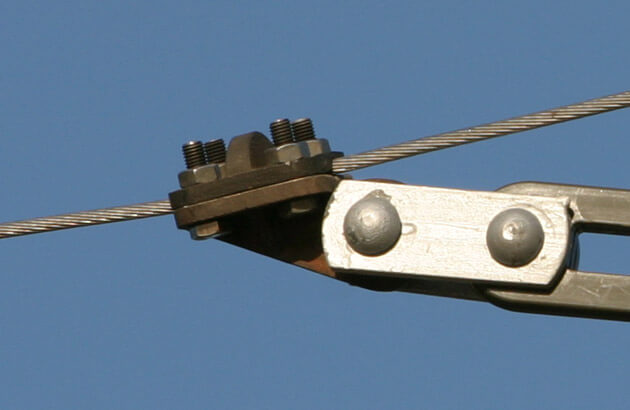

The two-pin clevis link is used for secure and stable mechanical connections in overhead contact systems where reliable operation and load resistance are required. The construction is designed for long-term use even in demanding outdoor environments.
The body, bolts, and split pins are manufactured from A4 stainless steel for optimal durability and corrosion resistance.
Technical specifications
- Type: Two-pin clevis link with bolt 13

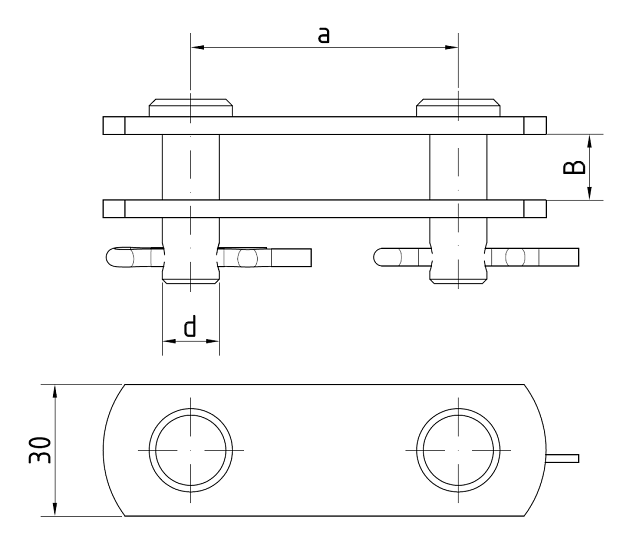

- Dimension a: 61 mm
- Permitted load: 10 kN
- Body material: Stainless steel
- Bolt/split pin material: A4 stainless steel
- Weight: 0.25 kg
- Application: Overhead contact systems and railway applications
