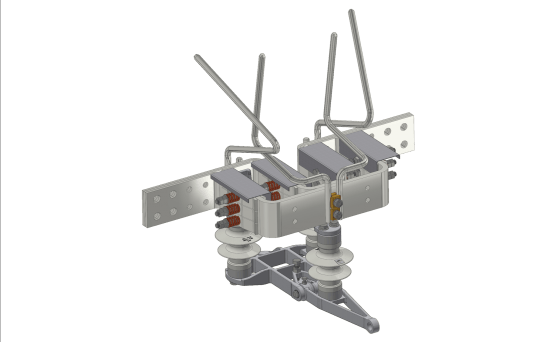

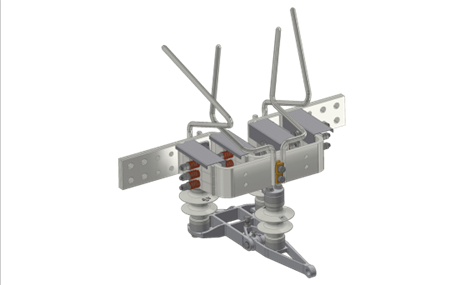

Horn disconnector OD17 3150 A type U (Ag) – high-current solution
Horn disconnector OD17 3150 A type U (Ag), designed for overhead contact and railway applications with high current loads. Durable construction with high operational reliability and the possibility to disconnect under load in emergency situations.
Key benefits:
- Designed for 3 kV DC systems
- Rated current 3150 A
- Silver-plated contacts for optimal conductivity
- High operational reliability and long service life
- Can be opened under load in emergency situations
Product description:
The horn disconnector is used in overhead contact systems for safe disconnection and current handling in high-load applications. The construction is designed for reliable operation and high mechanical strength even in demanding environments.
The body is manufactured from AlSi while the contacts are made from silver-plated Cu-ETP for low contact resistance and excellent conductivity. The insulators are made from glass fibre and the connecting parts from stainless steel.

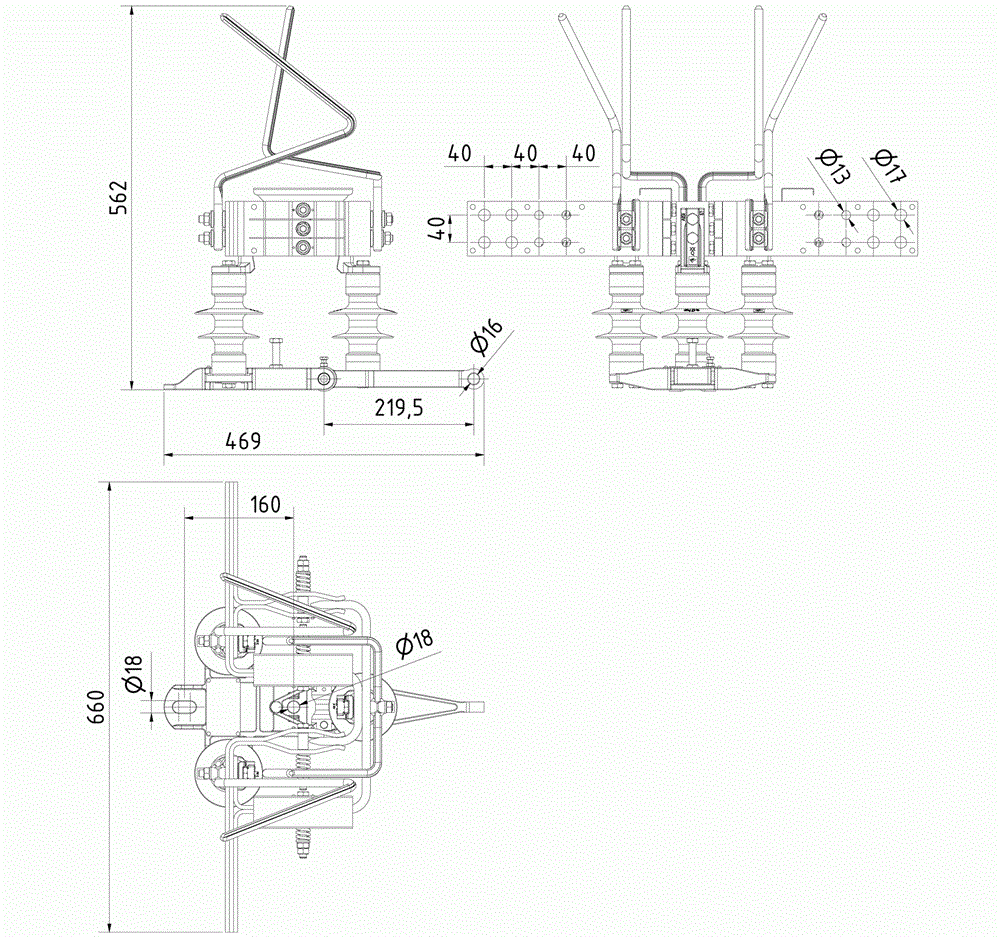

Technical specifications
- Type: Horn disconnector OD17 type U (Ag)
- Service voltage: 3 kV DC
- Nominal current: 3150 A
- Body material: AlSi
- Contact material: Silver-plated Cu-ETP
- Insulator material: Glass fibre
- Connecting parts material: Stainless steel
- Function: Can be opened under load in emergency situations
- Application: Overhead contact systems and railway applications
