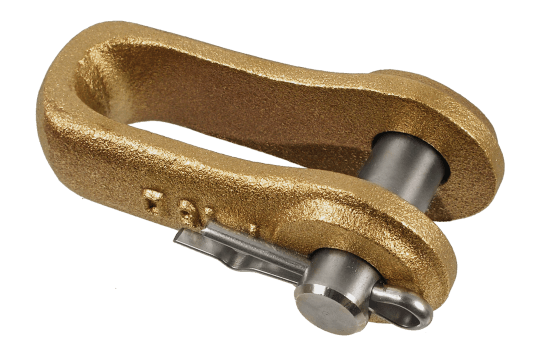

Trigger bow with bolt 13 mm – reliable connection solution
Trigger bow with 13 mm bolt, designed for secure fixing and connection in overhead contact and railway applications. Durable construction with high mechanical strength and long service life in demanding environments.
Key benefits:
- Compact and robust construction
- Secure fixing with 13 mm bolt
- High mechanical strength
- Corrosion-resistant materials
- Suitable for overhead contact systems
Product description:
The trigger bow is used for secure connection and suspension in overhead contact systems where reliable operation and load resistance are required. The construction is designed for long-term use even in demanding outdoor environments.
The bow is manufactured from CuZn16Si4 while the bolt and split pin are made from A4 stainless steel for optimal durability and corrosion resistance.

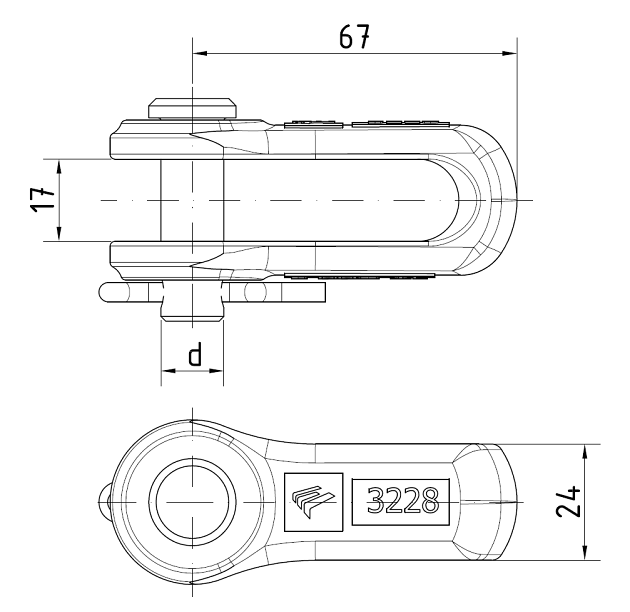

Technical specifications
- Type: Trigger bow with bolt
- Bolt diameter: 13 mm
- Permitted load: 10 kN
- Breaking load: 45 kN
- Bow material: CuZn16Si4
- Bolt/split pin material: A4 stainless steel
- Weight: 0.3 kg
- Application: Overhead contact systems and railway applications
