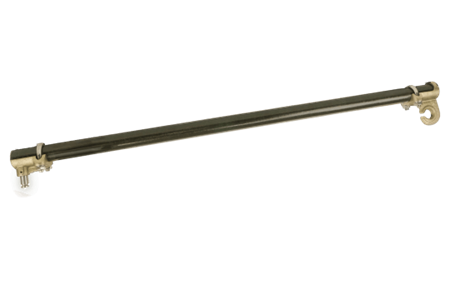

Insulated steady arm 38 with hook (L=1000 mm with bolt 16) – reliable overhead line support
Insulated steady arm 38 with hook and 1000 mm length designed for secure stabilization and positioning of contact wires in overhead contact systems. Developed for high strength, low weight, and long service life in demanding environments.
Key benefits:
- Insulated construction for increased safety
- Fiberglass rod with foam filling
- Robust and corrosion-resistant design
- High permitted load
- Suitable for overhead contact systems
Product description:
The insulated steady arm is used for stabilization of contact wires in railway and overhead contact installations. The construction combines high mechanical strength with excellent electrical insulation for safe and reliable operation.

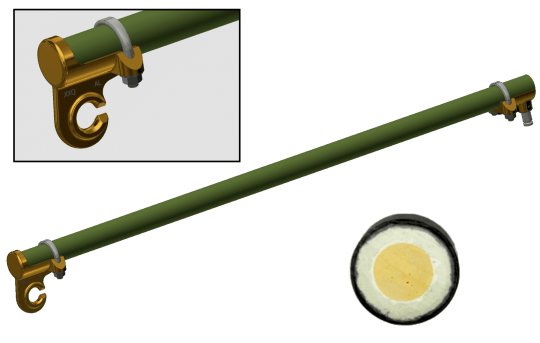

The articulated bracket and clip holder are manufactured from CuAl10Fe5Ni5 while the rod consists of fiberglass with foam filling. Connecting parts are made from stainless steel for maximum corrosion resistance and durability.

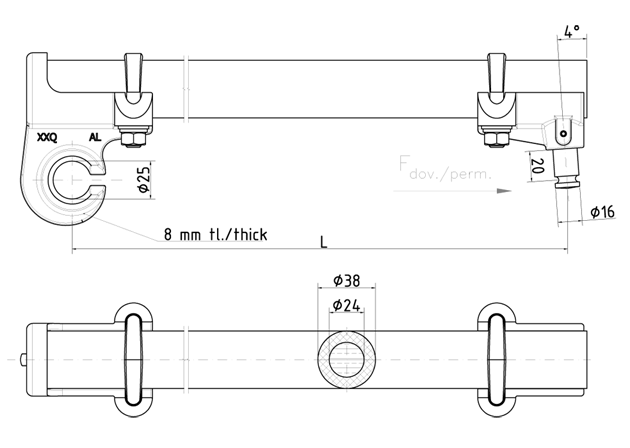

Technical specifications
- Type: Insulated steady arm 38 with hook
- Length: 1000 mm
- Bolt size: 16 mm
- Permitted load: 3.5 kN
- Articulated bracket/clip holder material: CuAl10Fe5Ni5
- Rod material: Fiberglass with foam filling
- Connecting parts material: Stainless steel
- Weight: 2.8 kg
- Application: Overhead contact systems and railway applications
