Contact wire splice clamp – reliable splicing solution
Contact wire splice clamp designed for secure and stable splicing in overhead contact and railway applications. Durable construction with high mechanical strength and long service life in demanding environments.
Key benefits:
- Secure contact wire splicing
- High mechanical strength
- Corrosion-resistant materials
- Designed according to EN 50149
- Suitable for overhead contact systems
Product description:

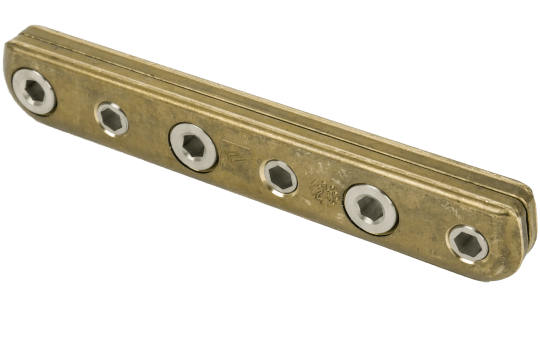

The splice clamp is used for secure connection and splicing of contact wires in overhead contact systems where reliable operation and low contact resistance are required.
The clamp is manufactured from CuAl9Fe3 while the connecting parts are made from stainless steel for optimal durability and corrosion resistance.
Technical specifications
- Type: Contact wire splice clamp
- Suitable for contact wire: 80–120 mm²
- Groove width according to EN 50149: 5.16–6.50 mm
- Recommended tightening torque: 70 Nm
- Breaking/slipping load: 2.5× or 85% of the minimum failing load of the contact wire
- Clamp material: CuAl9Fe3
- Connecting parts material: Stainless steel
- Weight: 0.61 kg
- Standard: EN 50149
- Application: Overhead contact systems and railway applications
