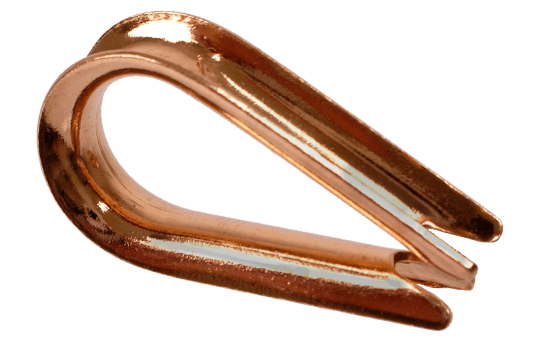

Thimble Cu 10–16 mm² – rope protection solution
Copper thimble for ropes and wires 10–16 mm², designed to protect and reinforce loops in overhead contact and railway applications. Durable construction with excellent corrosion resistance and long service life.
Key benefits:
- Protects ropes and wires from wear
- Manufactured from high-quality copper
- Lightweight and easy to install
- Excellent corrosion resistance
- Suitable for overhead contact systems
Product description:
The thimble is used to reinforce and protect loops in ropes and wires exposed to mechanical loads. The construction helps reduce wear and extends rope service life.
Manufactured from Cu 99.9 for optimal conductivity and corrosion resistance.
Technical specifications
- Type: Copper thimble
- Rope size: 10–16 mm²
- Maximum rope diameter: 5.1 mm
- Dimension d: 14 mm
- Length: 40 mm
- Radius r: 3.5 mm
- Thickness s: 1 mm
- Material: Cu 99.9
- Weight: 0.008 kg

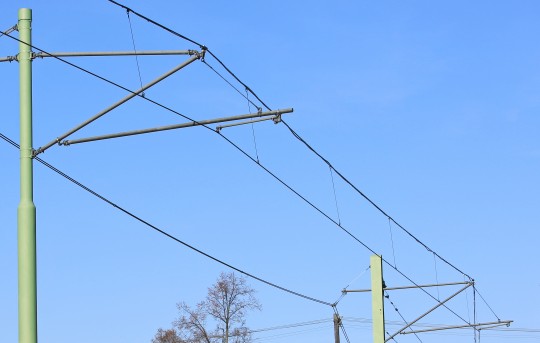

- Application: Overhead contact systems and railway applications
