Contact wire support for tunnel – durable overhead line solution
Contact wire support designed for tunnel environments and stable suspension of contact wires in overhead contact systems. Robust construction with high strength and corrosion resistance for long service life in demanding conditions.
Key benefits:
- Designed for tunnel installations
- Robust hot-dip galvanized steel construction
- Integrated rubber torsion absorber
- Excellent corrosion resistance
- Suitable for 1500 V DC systems
Product description:

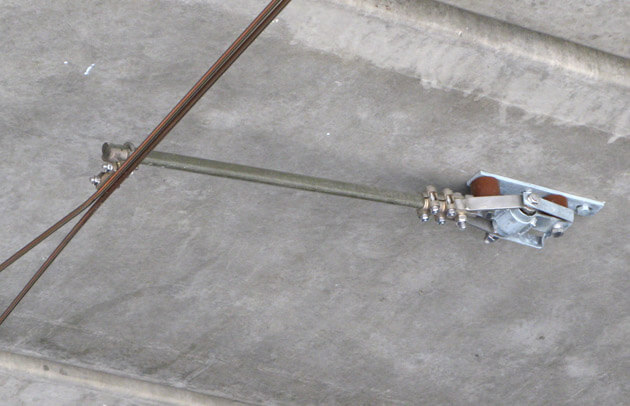

The contact wire support is used for suspension and stabilization of contact wires in tunnels and other restricted installation environments. The design ensures reliable operation and long service life even under high loads.

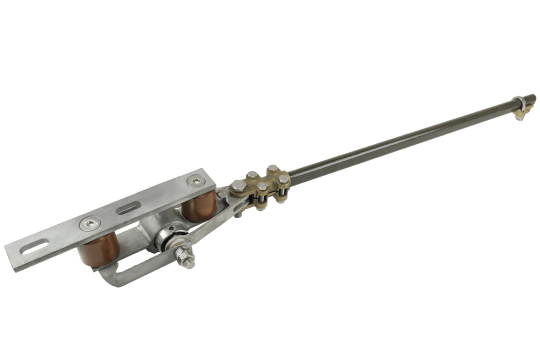

The basic frame is manufactured from hot-dip galvanized steel while the clip holder is made from CuZn16Si4 and stainless steel. An integrated rubber torsion absorber helps reduce vibrations and improves operational stability.
Technical specifications
- Type: Contact wire support for tunnel
- Nominal voltage: 1500 V DC
- Max vertical load on clip holder: 110 N
- Permitted side load: 2.5 kN
- Basic frame material: Hot-dip galvanized steel
- Torsion absorber material: Rubber
- Clip holder material: CuZn16Si4 and stainless steel

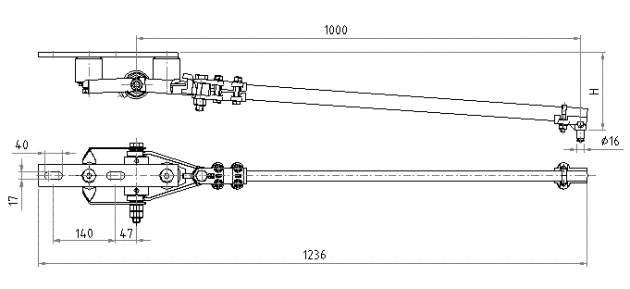

- Minimum assembly height: 111 mm (146 mm to contact wire)
- Maximum assembly height: 280 mm (315 mm to contact wire)
- Weight: 7.4 kg
- Application: Tunnel and overhead contact systems
