Contact Wire Crossing Hanger HKL-03
For all grooved contact wires from 80 – 150 mm² and for hanger wire cross sections from 10 – 16 mm².
Area of Application
The Kruch Contact Wire Crossing Hanger combines the functions of a regular hanger as well as a contact wire crossing clamp in overhead contact systems. It replaces the currently used heavy weight contact wire crossing rods.
Technical Description:
Specification:

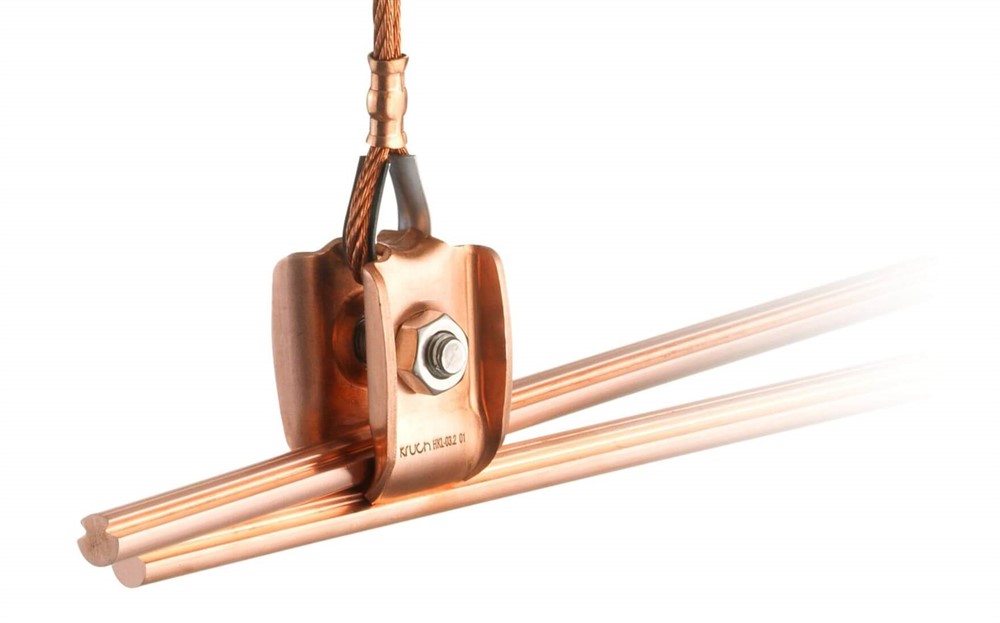

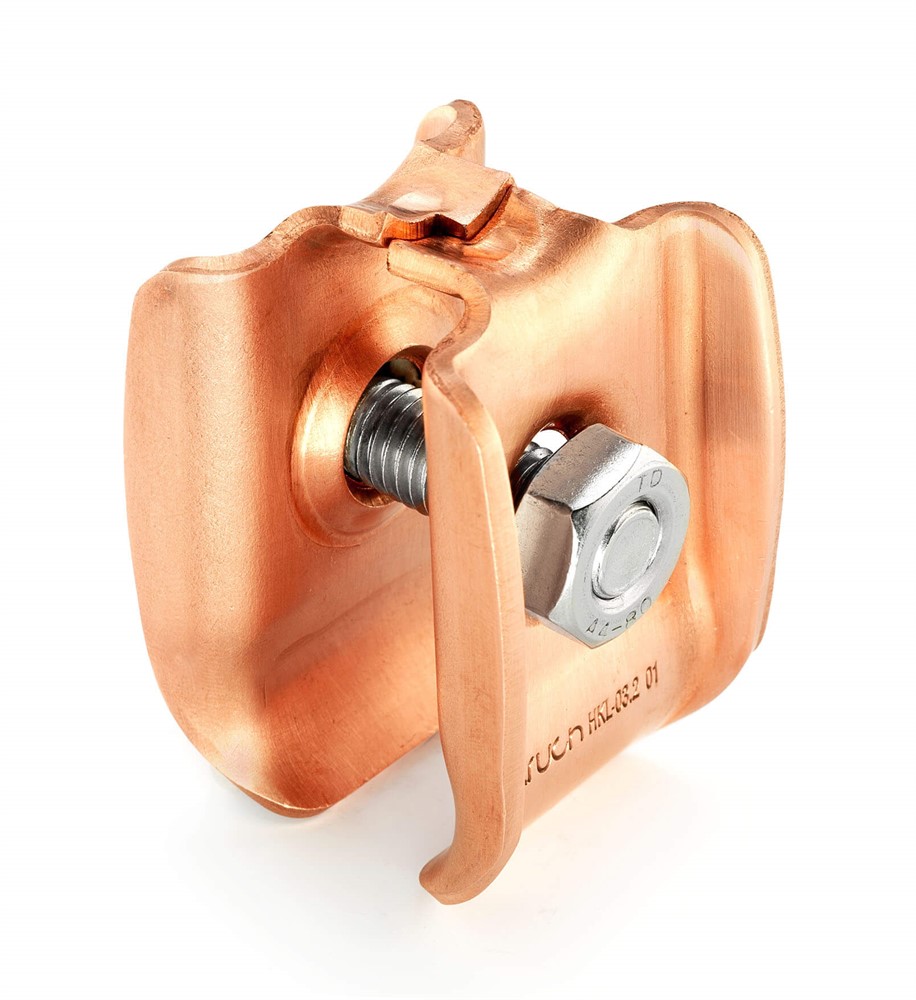

Contact wire crossing and catenary hanger combined in one element. The clamp is fixed to the main contact wire; the crossing contact wire lies on the main contact wire and can slide freely in the clamp. On the contact wire side the hanger wire is fixed using a thimble and a cable lug, on the messenger wire side the hanger wire is fixed with the adjustable hanger clamp HKL-02.
Advantages:
Quick and easy installation, adjustable height, low weight for improved catenary dynamics, normal distance between hangers can be maintained as the crossing is a hanger itself, therefore collisions between hangers and contact wires can be avoided on tracks with very small crossing angles.
- Area of Application: For contact wire crossings up to 12°
- Contact Wire: Suitable for all grooved contact wires from 80 – 150 mm² e.g. EN, Ri, RiS, RiM.
- Required Tools: Spanner 17mm & 13mm
- Clamp Material: CuNiSi
- Hanger Wire: BZII, 10mm²
