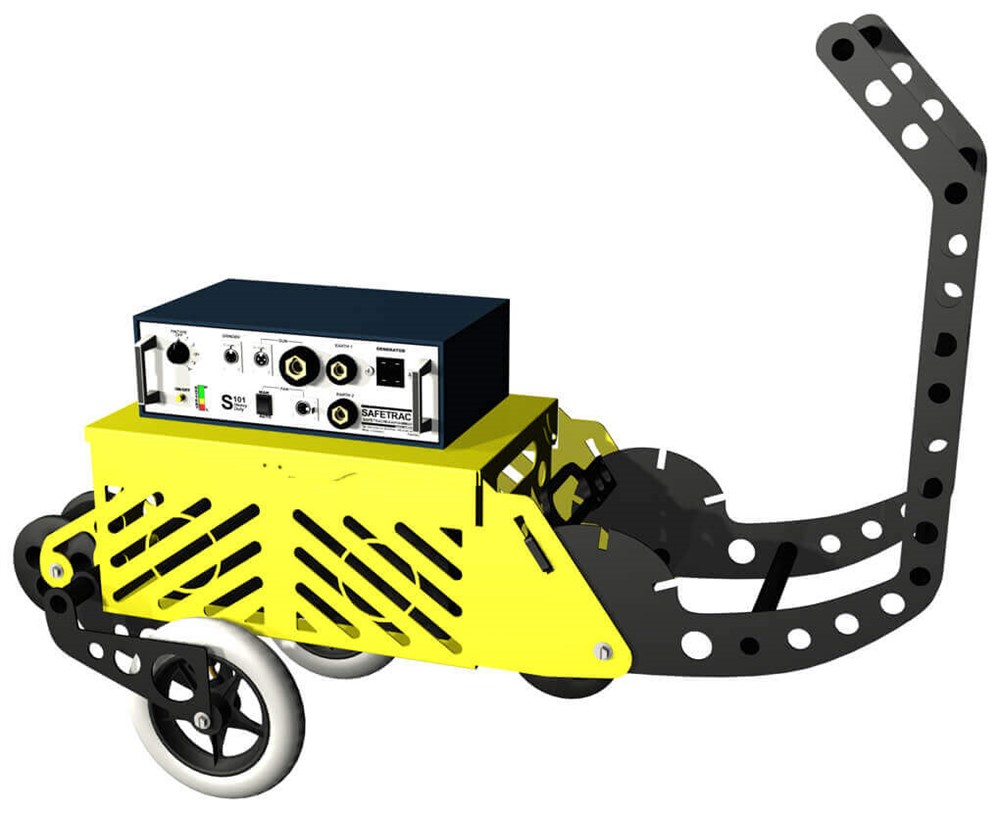

S 101 is delivered with a patented pistol - S4.
S 101 has both rubber transport wheels and insulated rail guide wheels.
The transport wheels in the up position easily pass over switch points and frogs, whilst in the down ( parking ) position the wheels act as a stabilisor.
S 101 is powered by 3 pcs maintenance free, sealed, High power batteries in a cassette.
Exchange cassettes can be fitted to increase capacity, these can also be charged separately.
S 101 uses brazing pins without fuse wires.
Technical Specification
Voltage: 36 V DC
Number of brazes: 60-100
Weight: 50kg
Dimensions: Width: 350mm Height: 380mm Length: 800mm
SAFE 9060 is delivered with:
Braze pistol S4 SAFE 9102
Batteries 26 AH 3pcs SAFE 8036

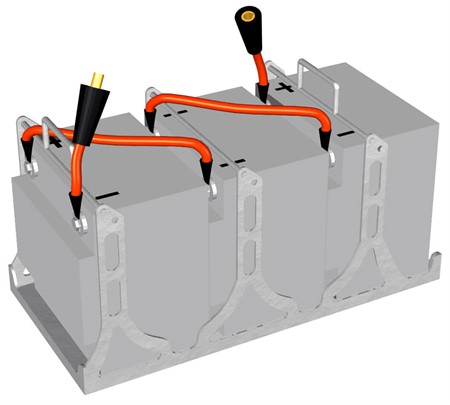

Battery cassete SAFE 9067
Grinding machine SAFE 8005
Earthing device 2,7m OnOff magnet SAFE 80732
Accessories:
Charger 36V/7A-100/240V SAFE 8049
Extra battery cassette SAFE 9067
Charging adapter SAFE 9068
Grinding wheel, silicon free SAFE 8025
Pin holder 8-9,5 SAFE 9211
Pin holder M8 SAFE 9213
Pin holder M10 SAFE 9215
Pin holder M12 SAFE 9217
Ring holder 8-9,5 SAFE 9202
Ring holder M8/M10/M12 SAFE 9204
