S30 X/C is electronically managed pin brazing unit, driven by 3 pcs of 12 V batteries which is easily exchangeable with a cassette system.
S30 X/C can be fitted with a rail trolley, Handy SAFE 9361.
Brazing pins without fuse wire are used.

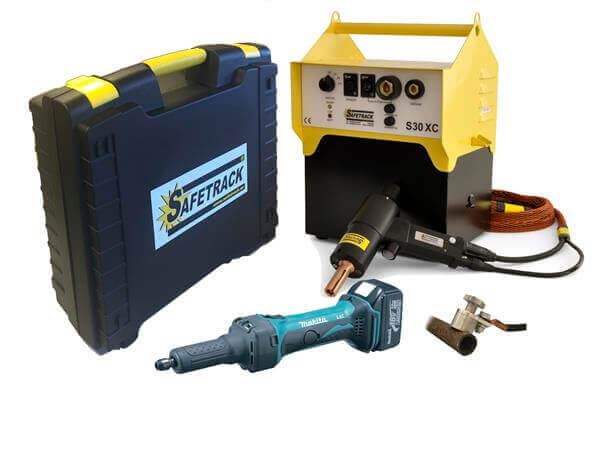

SAFE 9307 is Delivered with:
Brazing gun S4 Automatic SAFE 9102
(The gun is delivered with a mounted Pin Holder (A) SAFE 9211 and Ring Holder 9202.)
Battery box incl. 3 x 16Ah batteries w.cables SAFE 93201600
Grinding machine BGD800 Makita SAFE 593070
Ground magnetic, 2,7m OnOff std. SAFE 80730
Accessory Case SAFE 9524
Shoulder strap SAFE 9523
Eyewear SAFE 8043
Grinding stone SAFE 8025
Carbide burr SAFE 8014
Technical Specification
Voltage 36 V DC
Number of Brazings 40-60
Weight (13Ah/16Ah) 22/25 kg
Dimensions: Width 230mm, Height 390mm, Length 280mm
Accessories
Battery Charger 36V/7A SAFE 8049
Battery charger car use SAFE 8055
High power batteries 13Ah SAFE 8092
High power batteries 16Ah SAFE 8093
Ground w.super magnetic for CP SAFE 8069
Ground Grip SAFE 8071
Grinding wheel, silicone free SAFE 8025
Carbide burr, Type C SAFE 8014
Carbide burr, Type C extended SAFE 8014XL
Handy 2-rail trolley SAFE 9361
Separate battery box for 16Ah SAFE 9320 excl. batteries. With lid and handle.
Separate battery box for 13Ah SAFE 9321 excl. batteries. With lid and handle.
Battery adapter for charging SAFE 9318 Of Separate battery box
Angle Gun SAFE 91035
Pin Holder 8-9.5 (A) SAFE 9211
Pin Holder M8 (B) SAFE 9213
Pin holder M10 (C) SAFE 9215
Pin holder M12 (D) SAFE 9217
Ring Holder 8 to 9.5 SAFE 9202
Ring Holder M8/M10/M12 SAFE 9204
Extension Set, pin and ring holder for S4 / 8 and 9.5 mm SAFE 9227
Extension Set, pin and ring holder for threaded pin SAFE 9229
