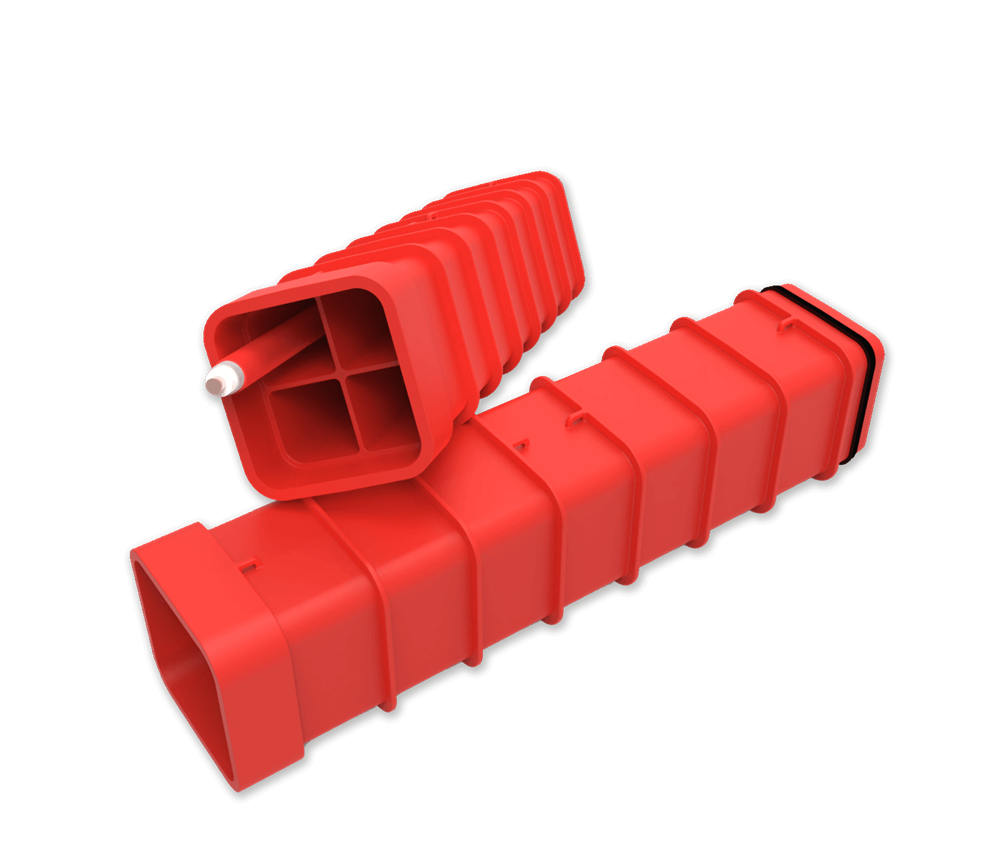

Utilis multiduct pipe (also called QA channel) is the ideal solution when several cables are to be installed together, but must be separated from each other. They are often used along railways and at stations, but also at road crossings, energy distribution stations, workshop structures, bridges and viaducts.
The multiduct pipe is flexible with an angular deviation of approximately 2 degrees per meter. This gives room to make soft curves without any tools.
- Lightweight
All versions weigh less than the Arbo standard and can therefore be assembled without tools.
- Durable SN140-150

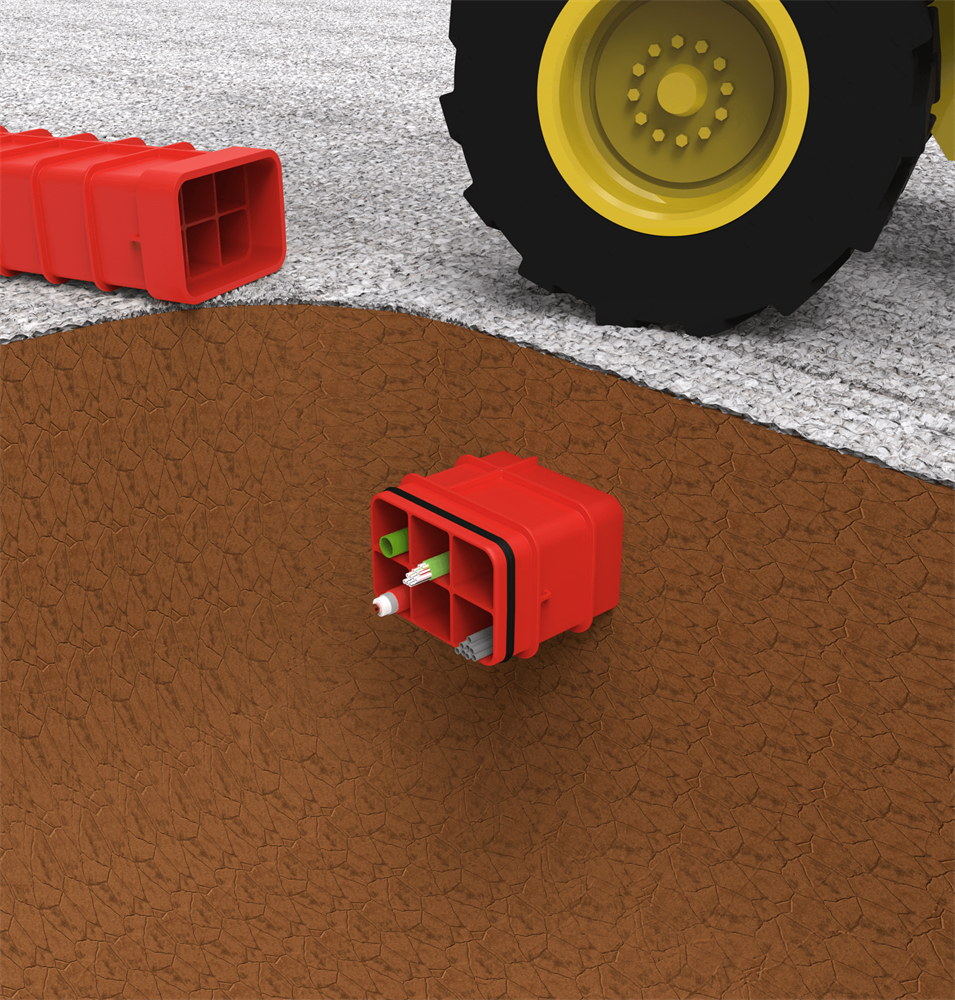

More than 17 times stronger than a SN8 pipe and is therefore Ideally suited where heavy traffic loads require tougher cable protection. This means it also requires less cover when installed (closer to surface).
- Space saving
Save 40% space compared to separate pipe installations. Installation costs are therefore also lower.
- 100% recyclable plastic
CFC-free HDPE spray quality.
- Tailor-made accessories
For example, specific bends of a certain radius.
- Completely waterproof
Thanks to the smart rubber sealing, the pipes are 100% waterproof.
Specifications
Material: HDPE (sprutkvalitet), 100 % återvinningsbar FCKW-fri

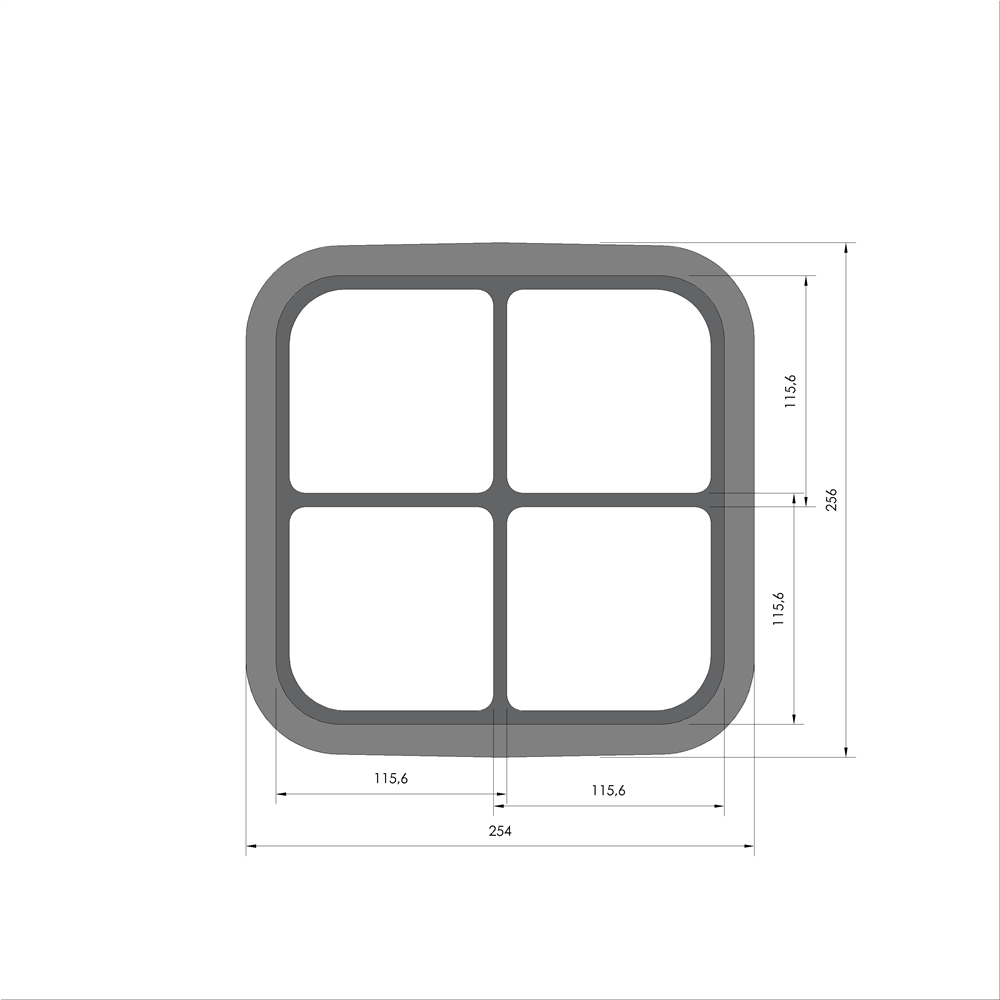

Dimension: 1090x257x254 mm
E-modules: 1000N / mm² (min)
Tensile strength: 20N / mm² (min)
Load capacity: 100kN / mm² (min)
Density: 0,96g / cm³ (min), ej skummad
Operating temperature: -30°C - + 60°C
Installation temperature: -5°C - + 40°C
Compartment/channel size: 115,6mm
