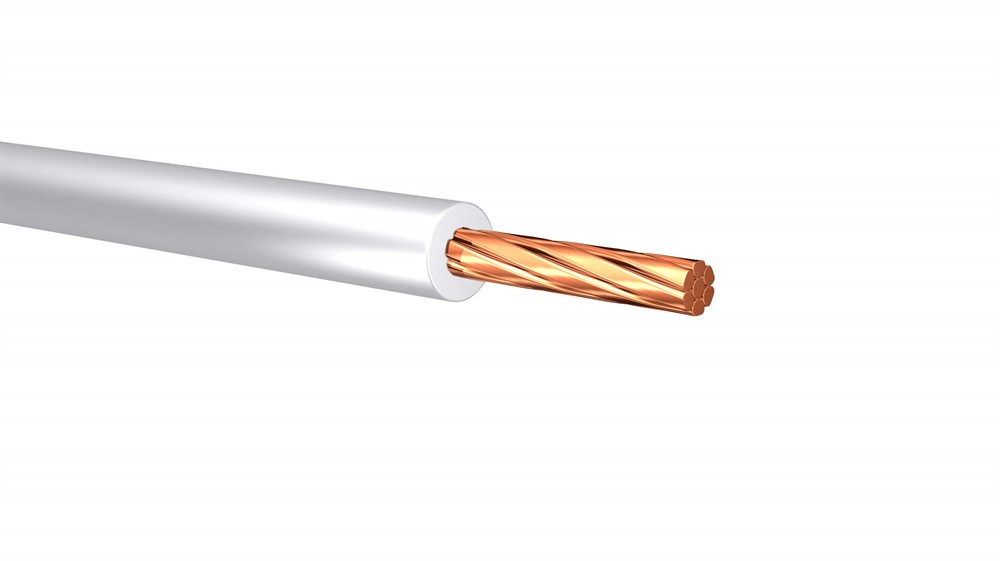

Single Core Cathodic Protection Cable XLPE, Non Armoured, White PVC
Single core non armoured cathodic protection PVC cable, used for protection against corrosion in cathodic systems where the risk of mechanical damage is minimal.
Key Features
Voltage Rating: 600/1000 Volts
Minimum Bending Radius: 8 x Overall Diameter
Temperature Range: -15°C to + 90°C
- Conductor: Class 2 stranded copper conductor
- Insulation: Cross Linked polyethylene (XLPE)
- Sheath: PVC (Polyvinyl Chloride)
Standards
- BS EN/IEC 60502-1
- BS EN/IEC 60228
