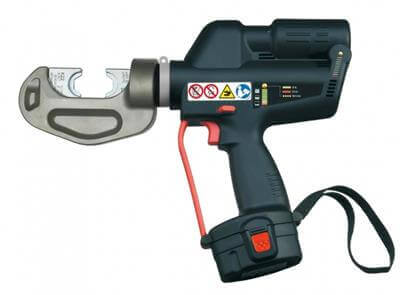

Batt.-powered compression tool

• C-head, ideally for continous quick working (side loading of connectors)
• Ideal for series-production
• Extremely quick processing due to a two-stage hydraulicpump
• 360° revolving head
• Application range from 6 up to 300 mm²
• Integrated pressure relief valve, false pressings cause no damage at tool nor dies
• Lithium-ionen-battery without memory effect, self-discharges very low
• High capacity due to 3.0 Ah battery
• Eyelet balancer and carrying strap available
• Ergonomic handle with a balanced weight distribution for sure work free of tiredness
• Case, handle shell and pressure discharge key completely from isolated and push-firm plastic material
• Integrated electronic module for:
• Permanent accumulator-loading state control
• Supervision of the working process and state announcement
• Announcement of the next service interval
• Mistake announcement at possible disturbance

Technical Data

• Press capacity ca 80 kN
• Operating voltage 14,4 Volt
• Tool measurements 95x440x310 mm
• Weight 5,4 kg (1nkl Akku)
• Battery charger 7,2-18 V
• Charging time ca 50minutes
