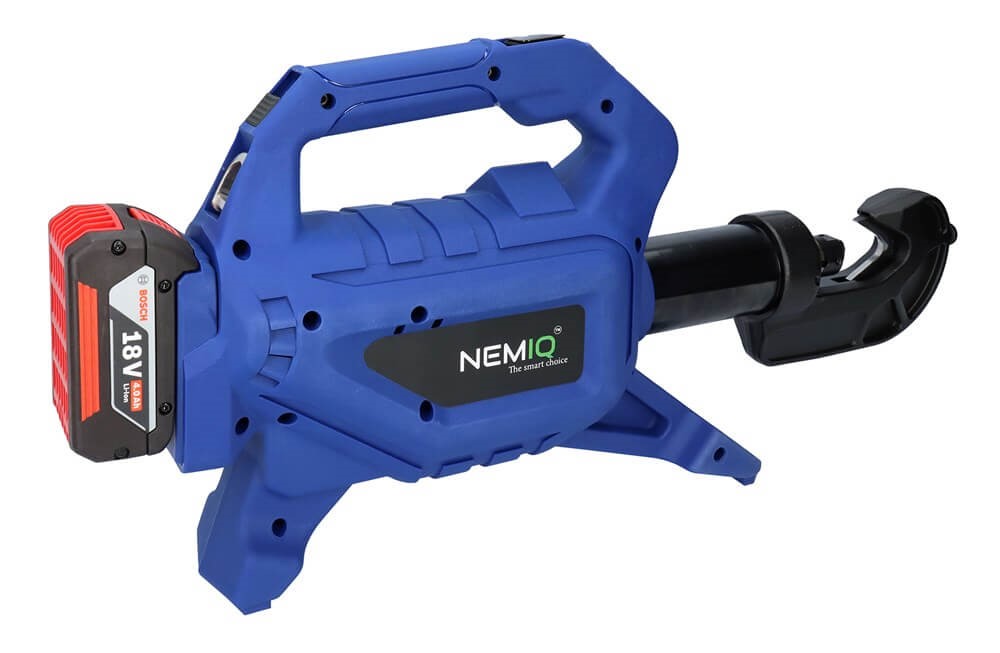

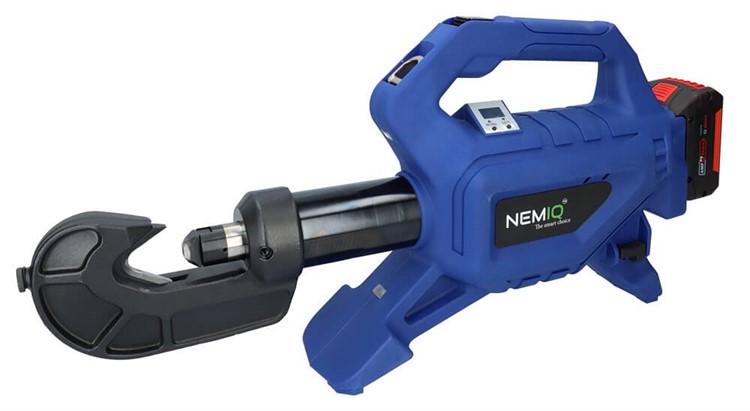

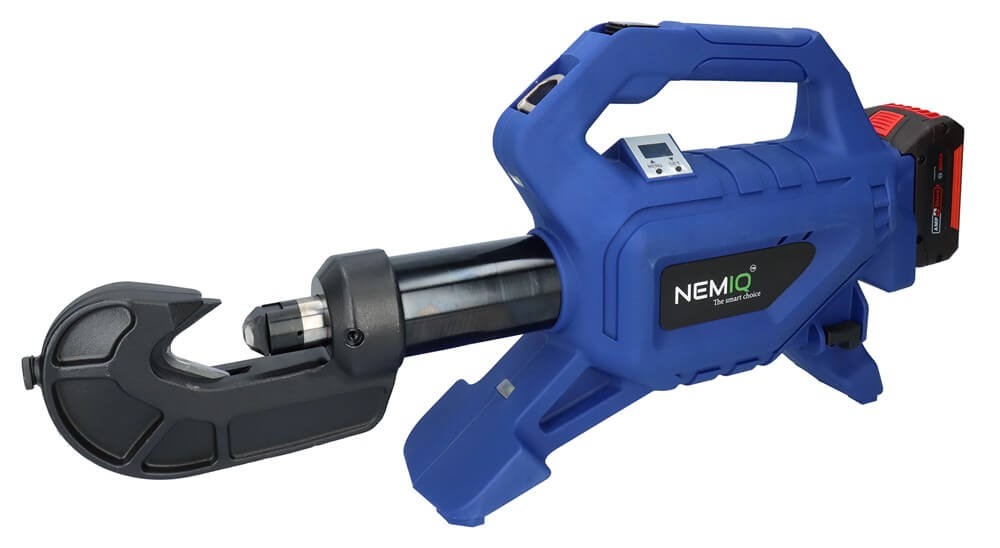

NSBT IC400 – Battery-Powered Crimping Tool for Copper and Aluminum Cable Lugs
The NSBT IC400 is a powerful and efficient battery-powered crimping tool designed for crimping both copper and aluminum cable lugs without the need for die changes. Thanks to its smart design, the tool uses the same dies for crimping:
- Copper: 16–400 mm²
- Aluminum: 50–400 mm²
The tool operates with V-crimping, making it compatible with most types of cable lugs and splice connectors. The crimping process continues until the correct counterpressure is achieved, ensuring high-quality results even when cable cross-sections vary.
The NSBT IC400 complies with industry standards IEC 61238-1 and SEN 24 50 10/12.
Key Features and Benefits
- No need for die changes – faster operation and lower investment costs
- Automatic piston retraction – can be stopped at any position for shorter crimping cycles
- Rotatable crimping head – enables work in tight spaces
- LED lighting – improves visibility in low-light conditions
- Bosch Li-Ion battery – with a charge indicator for battery status
Included in the Package
With the NSBT IC400, you get:
- Durable carrying case for safe storage and transport
- Bosch battery & charger for extended runtime
- Shoulder strap for comfortable handling
- Test gauge for verifying calibration accuracy
Optional accessories include pre-forming dies and C-dies for additional functionality.
Technical Specifications
- Max pressure: 700 bar
- Crimping force: 109 kN
- Capacity: 16–400 mm² (Cu) / 50–400 mm² (Al)
- Cycle time: 5 seconds
- Operation type: Battery-powered hydraulic system
- Crimping method: Indentation crimping
The NSBT IC400 is a reliable, flexible, and user-friendly crimping tool that simplifies your work while reducing costs.
Questions? Contact us for more information!
