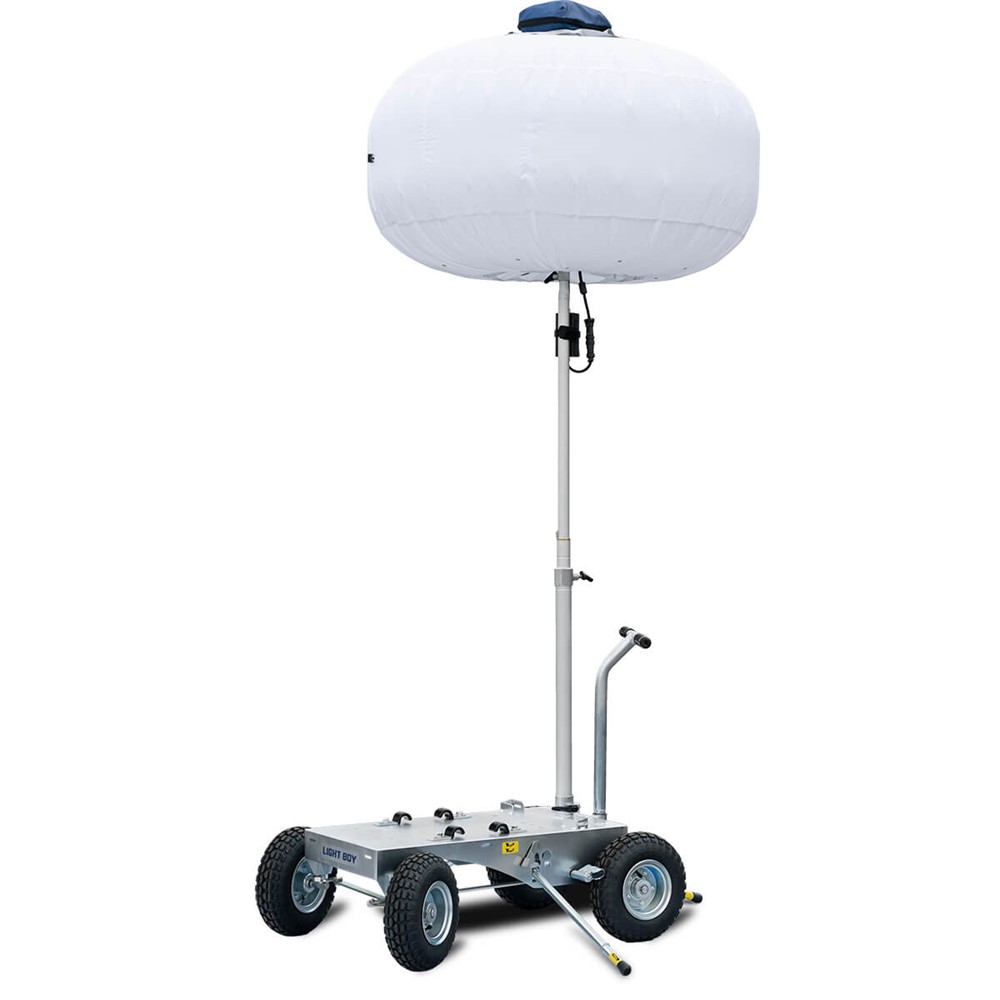

LIGHT BOY – LED Lighting System with Industrial Trolley
The ideal combination of the innovative B8CA and a robust industrial trolley, providing easy transport and high operational flexibility. The steerable trolley is tool-free to assemble, features a three-stage air-assisted telescopic mast, and offers a stable platform for securely mounting a portable generator for lighting applications outside fixed installations.

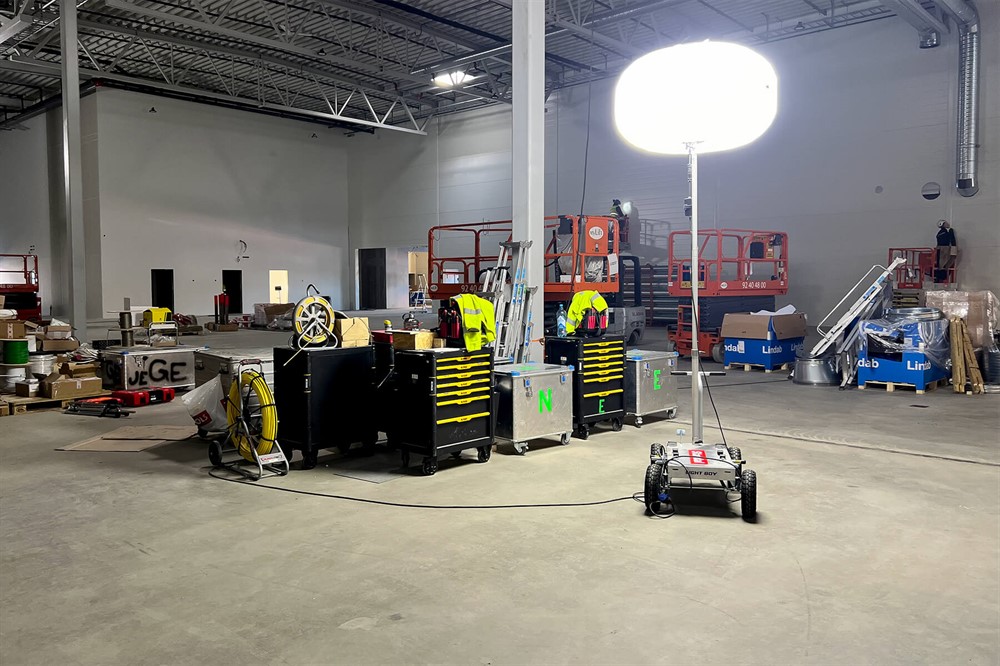

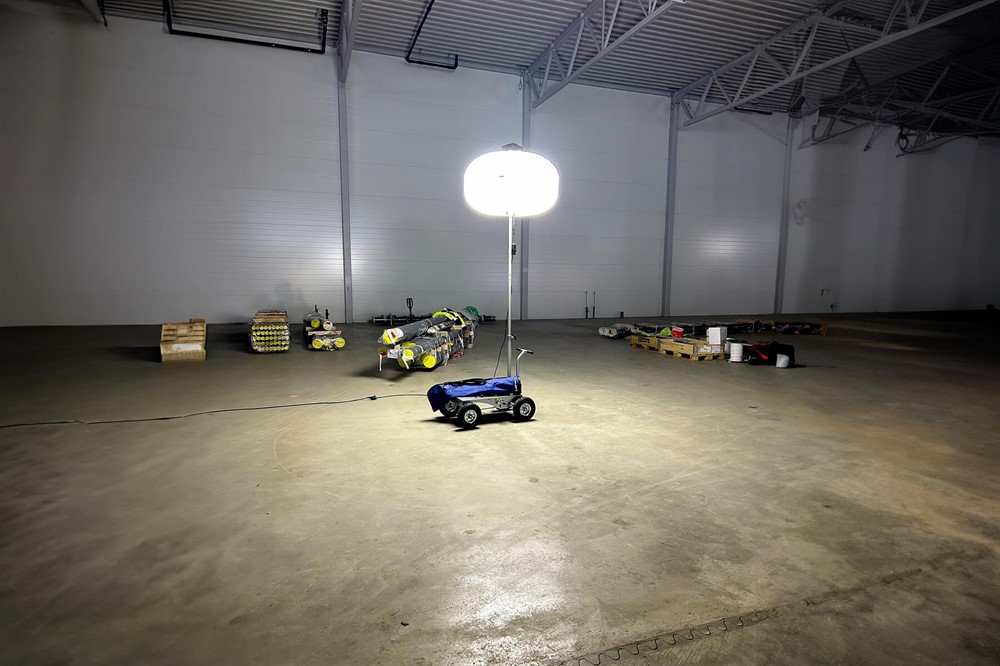

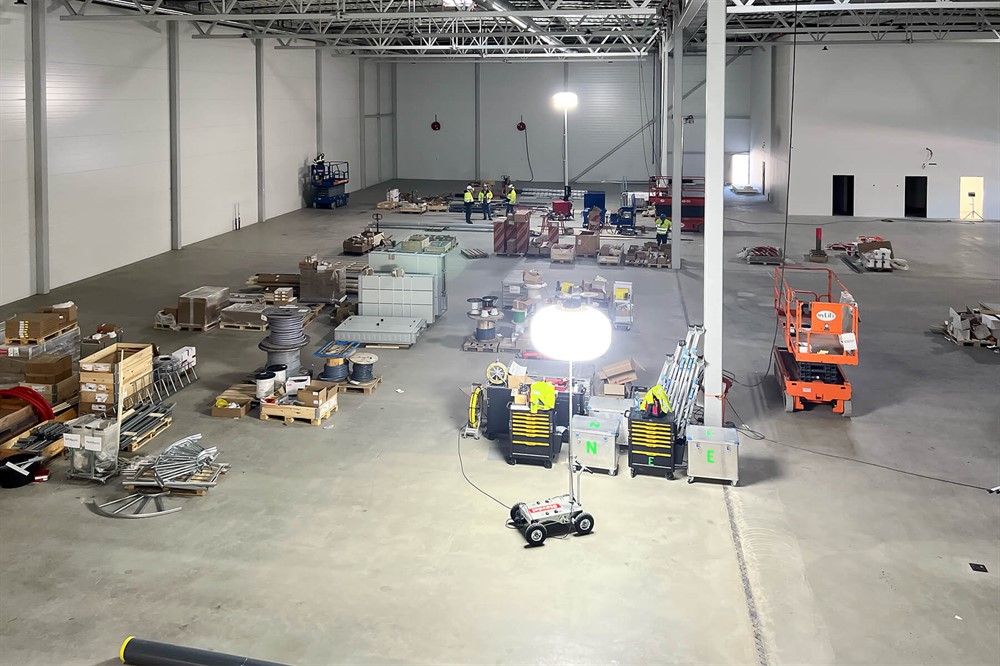

The B8CA is designed for demanding environments where powerful, mobile, and safe lighting is essential, such as construction sites, industrial areas, and temporary work locations.
Features and Benefits
Gas shock-absorbing mast
The gas-assisted mast prevents sudden lowering and protects the LED lamps during retraction.
Compact design
When space is limited but powerful illumination is required, the B8CA is the ideal choice.
Ultimate lamp protection
The LED lamp guard is made from highly durable polycarbonate with strength comparable to riot shield material.
Balloon cover
The integrated balloon cover protects the lighting unit from airborne dust and particles.
Three-stage dimming control
Easily adjust the light output using the dimmer button and optimize energy consumption according to the application:
800 W / 600 W / 400 W
Technical Specifications
Model: B8CA
Voltage: AC 90–240 V
Frequency: 50/60 Hz
Current: 3.75 A (AC 230 V, 800 W)
Lamp Type: LED
Dimming: 3 stages – 800 W / 600 W / 400 W

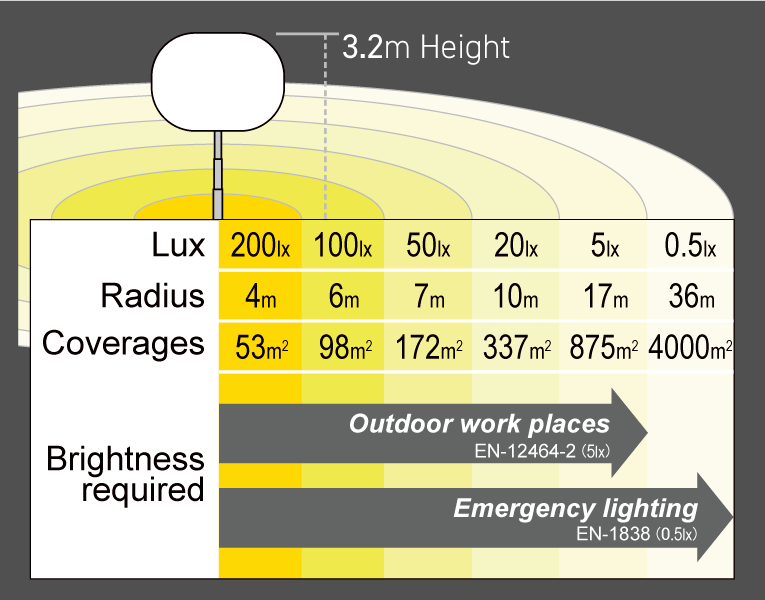

Total Luminous Flux: 110,000 / 90,000 / 67,000 lm
Operating Temperature: –10 to +40 °C
Mast: Telescopic aluminium mast
Operation: Manual
Trolley:
– Brake: Single-step foot brake
Dimensions (L × W × H):
– Operating: 1325 × 1300 × 1870–3200 mm
Storage:
– Balloon: 200 × 220 × 690 mm
– Trolley: 1025 × 700 × 845 mm
Weight:
– Balloon: 10.8 kg
– Cable: 1.4 kg
– Mast: 2.2 kg
– Trolley: 37.5 kg
– Total weight: 51.9 kg
Recommended generator: 870 W or higher
