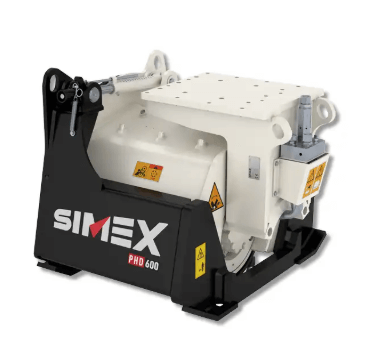

The PHD600 is an extra-heavy-duty asphalt milling cutter designed for excavators in the 16–22 ton class, developed specifically for large-scale and deep milling applications in road and infrastructure projects. With its wide milling width, deep cutting capability, and robust design, the PHD600 is the ideal choice for contractors who demand maximum productivity and reliability.
Its reinforced construction combined with a high hydraulic flow ensures stable and efficient milling, even in hard asphalt and continuous heavy-duty operation. The large oscillation angle provides excellent flexibility when working along curbs, slopes, and complex surfaces.
Key Benefits
- Very high milling performance for heavy excavators
- Wide milling width for fast and efficient coverage of large areas
- Deep milling capability for demanding road and infrastructure works
- Clean, straight cuts with consistent results
- Efficient edge milling close to curbs and obstacles
- Large oscillation angle for flexible and precise operation
- Extremely robust construction for harsh job sites and continuous professional use
Applications
- Large-scale road rehabilitation and paving projects
- Deep milling and surface preparation prior to new asphalt
- Milling of carriageways, bus lanes, and industrial surfaces
- Precise cutting around curbs, manholes, and road structures
- Connection milling for utilities, fiber, and pipeline works
- Parking areas and large infrastructure surfaces
Technical Specifications
- Recommended excavator size: 16–22 tons
- Standard milling width: 600 mm
- Optional milling width: 75–600 mm
- Standard milling depth: 0–200 mm
- Maximum milling depth (optional): 250 mm
- Independent left/right depth adjustment: No
- Minimum curb distance: 75 mm (40 mm*)
- Oscillation angle: 105°
- Weight: 1,150 kg
- Required hydraulic flow: 120–200 l/min
