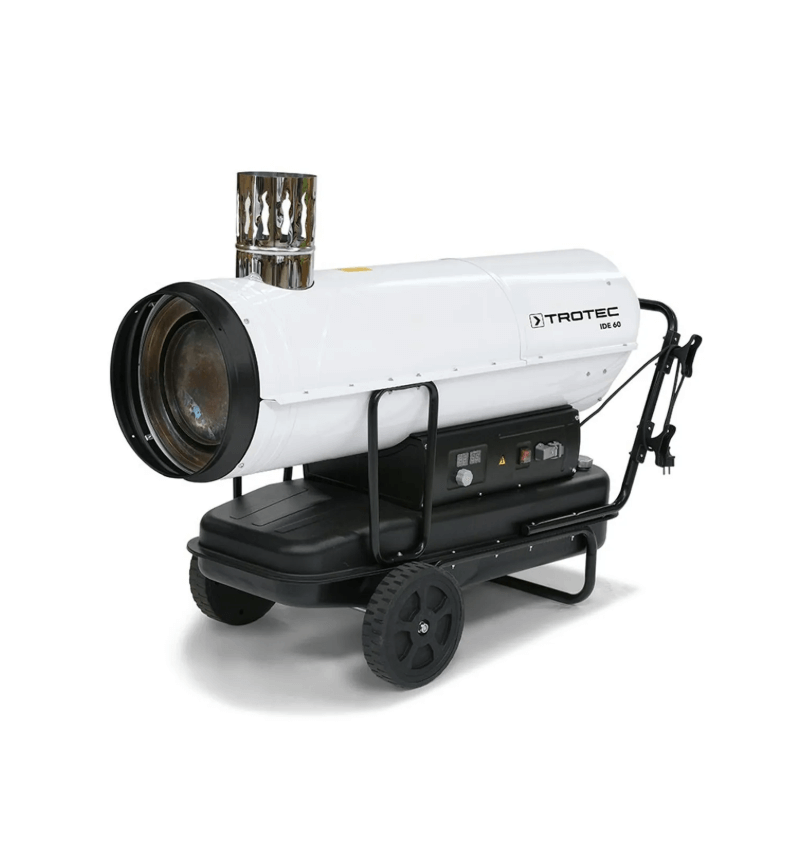

The IDE 60 is a high-performance indirect diesel-fired space heater designed for professional heating of large construction sites, warehouses, workshops, industrial buildings, and temporary structures. Thanks to its indirect combustion system, the heater delivers clean, dry, and fume-free warm air, making it suitable for use in areas where people are present.
With a powerful heating output of 60 kW and an air flow of 2,000 m³/h, the IDE 60 ensures fast and efficient heating even in demanding environments. It is engineered for operation in ambient temperatures ranging from –20 °C to +45 °C and is equipped with overheat protection, an axial fan, and a connection for an external thermostat to allow precise temperature control.
Key Benefits
- Indirect combustion for clean, odor-free warm air
- High heating output of 60 kW
- Air flow of 2,000 m³/h for rapid heat distribution
- Reliable operation in temperatures down to –20 °C

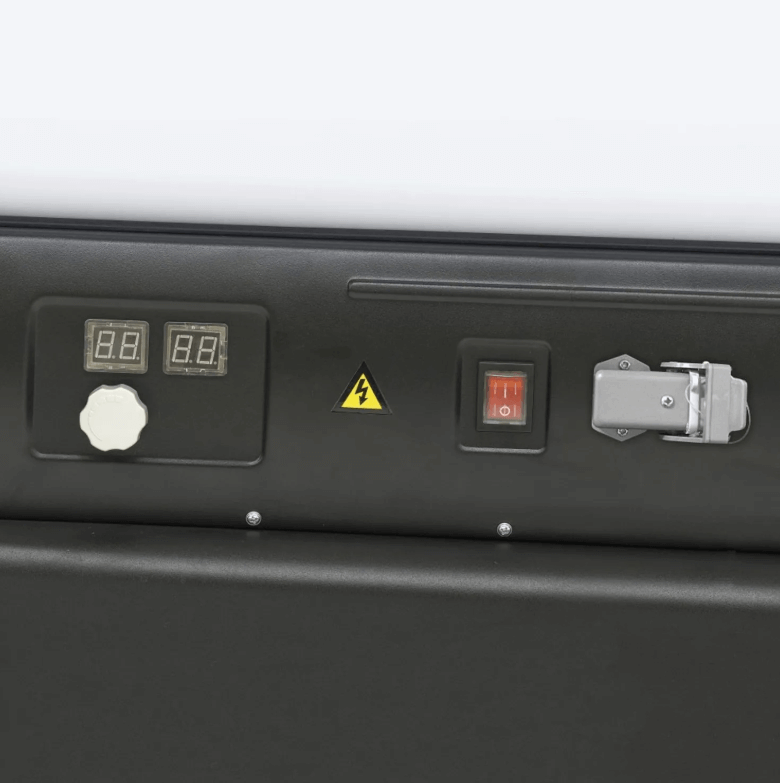

- Connection for external thermostat
- Overheat protection for safe operation
- Robust construction for construction and industrial environments
- IPX4-rated for use in demanding conditions

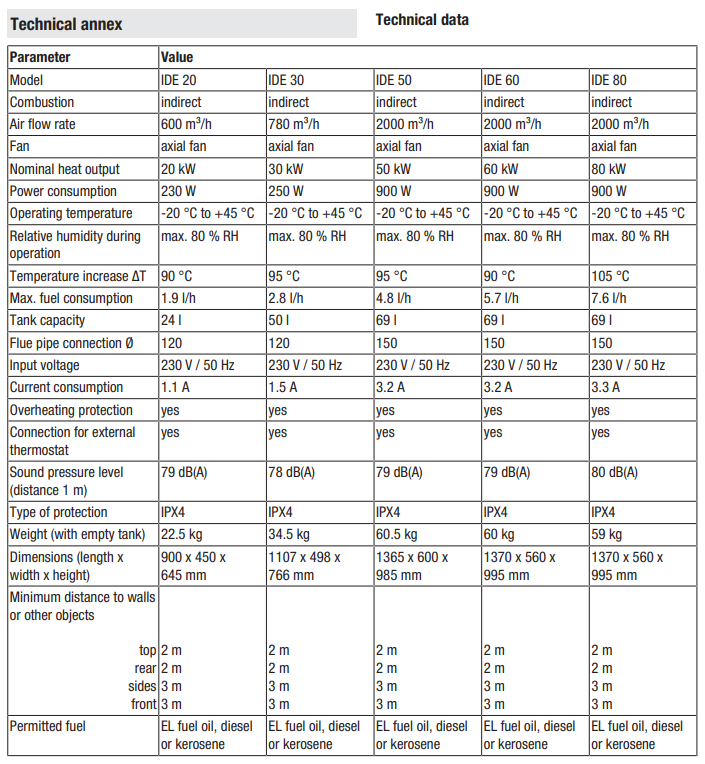

Technical Specifications
- Model: IDE 60
- Combustion type: Indirect
- Nominal heat output: 60 kW
- Air flow rate: 2,000 m³/h
- Temperature rise (ΔT): 90 °C
- Max. fuel consumption: 5.7 l/h
- Fuel tank capacity: 69 L
- Approved fuels: Diesel, heating oil (EL), or kerosene
- Fan type: Axial fan
- Power supply: 230 V / 50 Hz
- Power consumption: 900 W
- Current draw: 3.2 A
- Protection class: IPX4
- Sound pressure level (1 m): 79 dB(A)
- Weight: approx. 60 kg

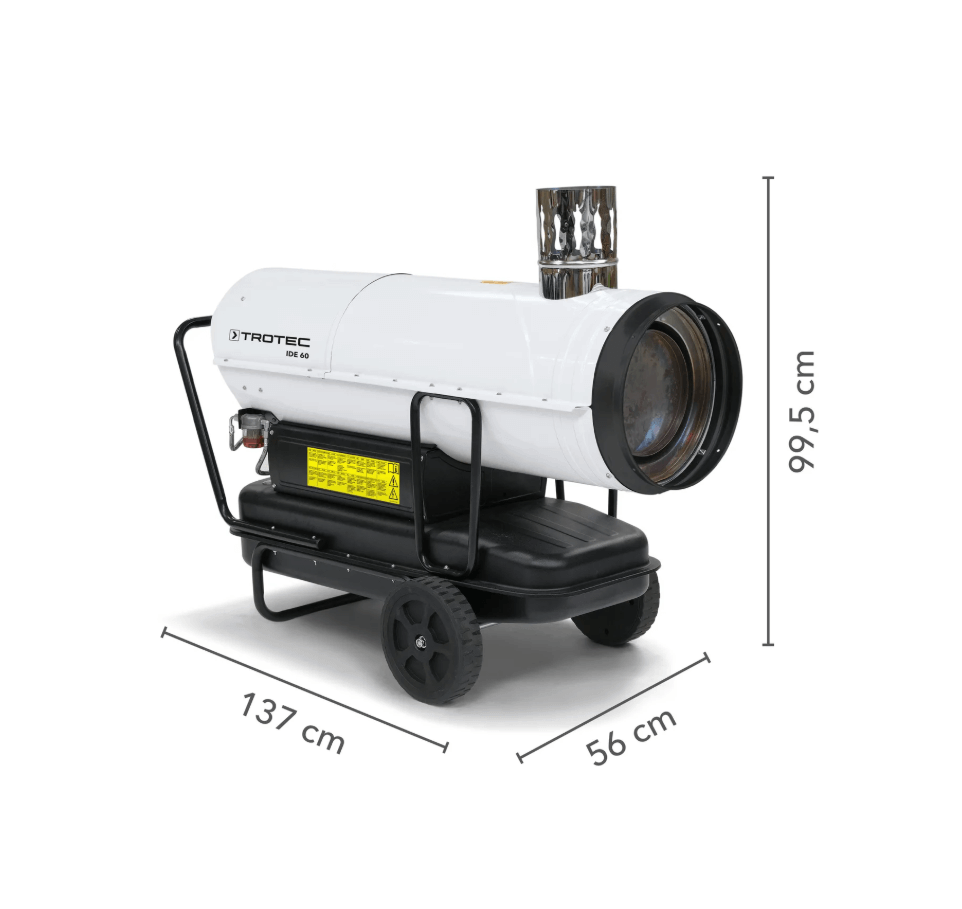

- Dimensions (L × W × H): 1370 × 560 × 995 mm
- Flue outlet diameter: Ø 150 mm
- Max. operating humidity: 80% RH
Minimum Safety Distances
- Above: 2 m
- Rear: 2 m
- Sides: 3 m
- Front: 3 m
Applications
- Large construction and renovation sites
- Warehouses and industrial halls
- Workshops and production facilities
- Temporary structures and tents
- Drying of building materials
- Frost protection and temporary heating
