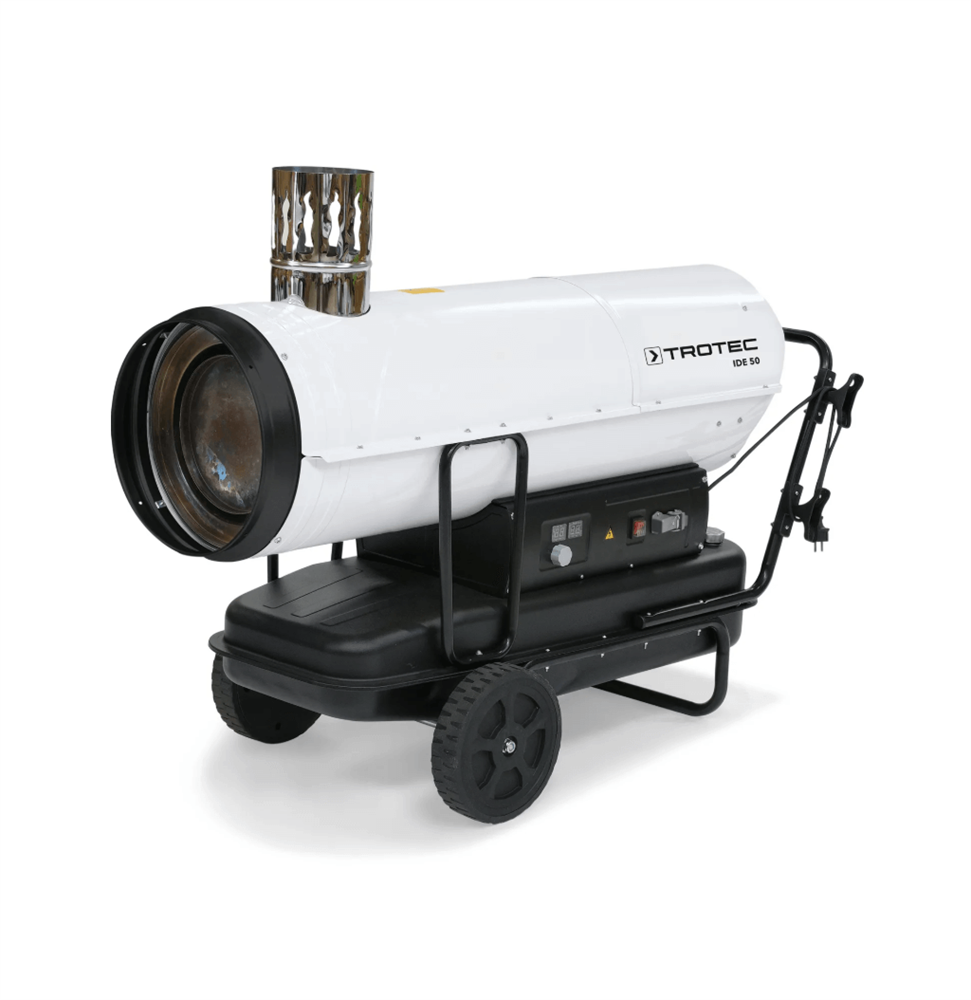

The IDE 50 is a high-capacity indirect diesel-fired space heater designed for professional heating of large construction sites, warehouses, industrial halls, workshops, and temporary structures. Thanks to its indirect combustion system, the heater delivers clean, dry, and fume-free warm air, making it suitable for use in areas where people are present.
With a powerful heat output of 50 kW and an impressive air flow of 2,000 m³/h, the IDE 50 provides rapid and efficient heating even in demanding environments. The unit is engineered for operation in ambient temperatures from –20 °C to +45 °C and features overheat protection, an axial fan, and a connection for an external thermostat for precise temperature control.
Key Benefits
- Indirect combustion for clean, odor-free warm air
- High heating output of 50 kW
- Large air flow of 2,000 m³/h for fast heat distribution
- Reliable operation in temperatures down to –20 °C

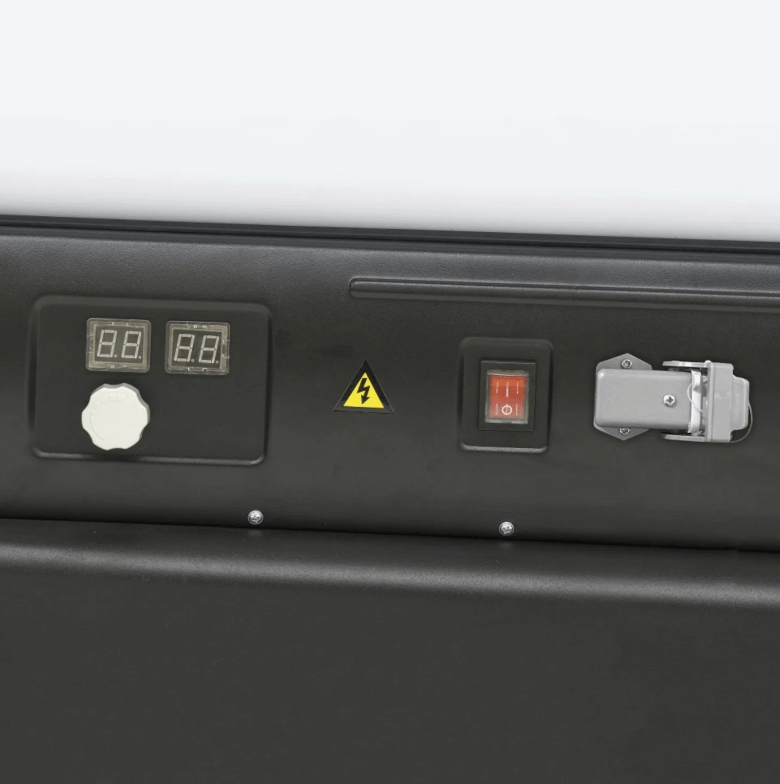

- Connection for external thermostat
- Overheat protection for safe operation
- Robust construction for construction and industrial environments
- IPX4-rated for use in demanding conditions
Technical Specifications
- Model: IDE 50
- Combustion type: Indirect
- Nominal heat output: 50 kW
- Air flow rate: 2,000 m³/h
- Temperature rise (ΔT): 95 °C
- Max. fuel consumption: 4.8 l/h
- Fuel tank capacity: 69 L
- Approved fuels: Diesel, heating oil (EL), or kerosene

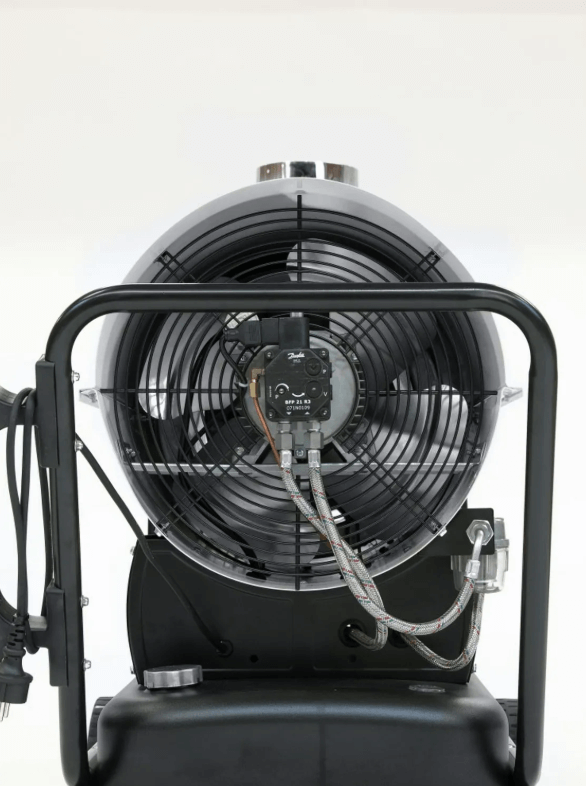

- Fan type: Axial fan
- Power supply: 230 V / 50 Hz
- Power consumption: 900 W
- Current draw: 3.2 A
- Protection class: IPX4
- Sound pressure level (1 m): 79 dB(A)
- Weight: 60.5 kg

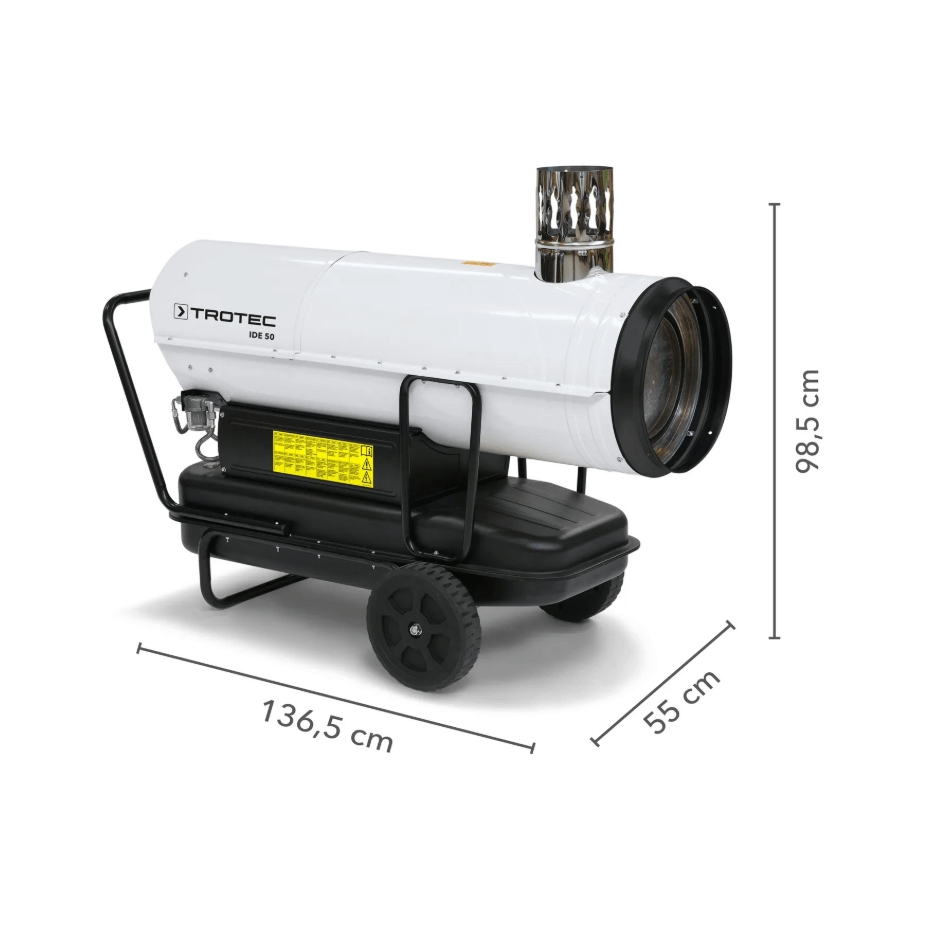

- Dimensions (L × W × H): 1365 × 600 × 985 mm
- Flue outlet diameter: Ø 150 mm
- Max. operating humidity: 80% RH
Minimum Safety Distances
- Above: 2 m
- Rear: 2 m
- Sides: 3 m
- Front: 3 m
Applications
- Large construction and renovation sites
- Warehouses and industrial halls
- Workshops and production facilities
- Temporary structures and tents
- Drying of building materials
- Frost protection and temporary heating
