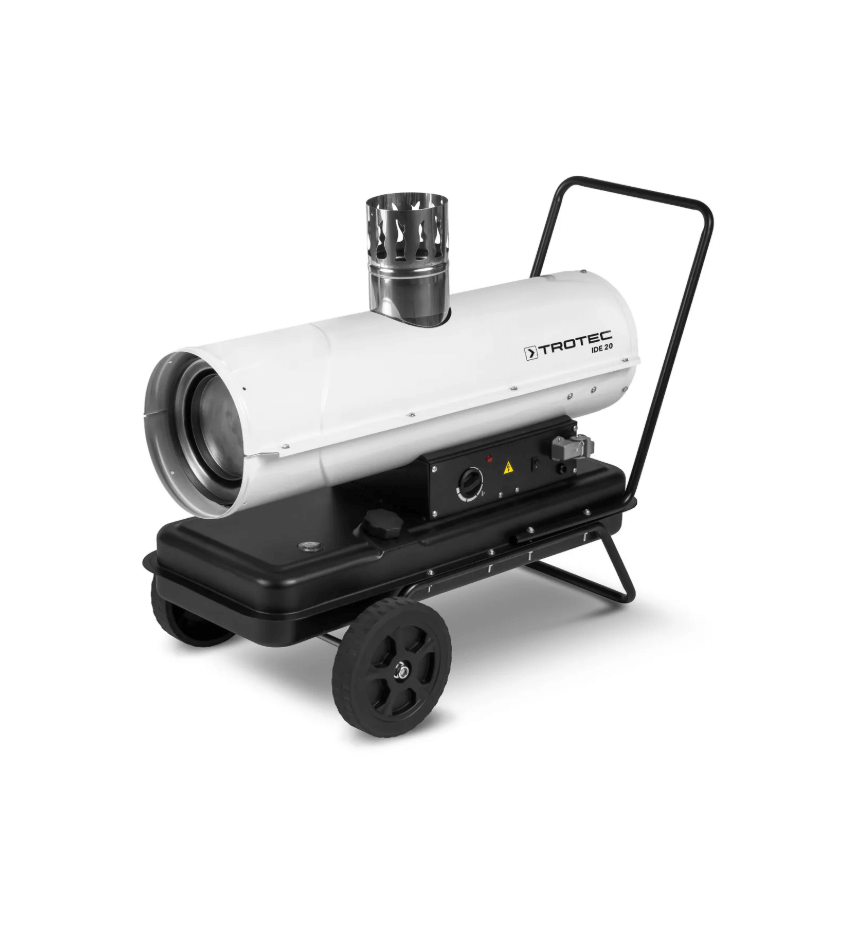

The IDE 20 is a powerful and reliable indirect diesel-fired space heater designed for professional heating of construction sites, warehouses, workshops, tents, and industrial environments. Thanks to its indirect combustion system, the heater delivers clean, dry, and fume-free warm air, making it suitable for use in areas where people are present.
With a heating capacity of 20 kW and an air flow of 600 m³/h, the IDE 20 ensures fast and efficient heating even in cold conditions. It is designed to operate in ambient temperatures ranging from –20 °C to +45 °C and is equipped with overheat protection, an axial fan, and a connection for an external thermostat for precise temperature control.
Key Benefits
- Indirect combustion for clean, odor-free warm air
- Heating output of 20 kW
- Air flow of 600 m³/h for rapid heat distribution
- Reliable operation in temperatures down to –20 °C

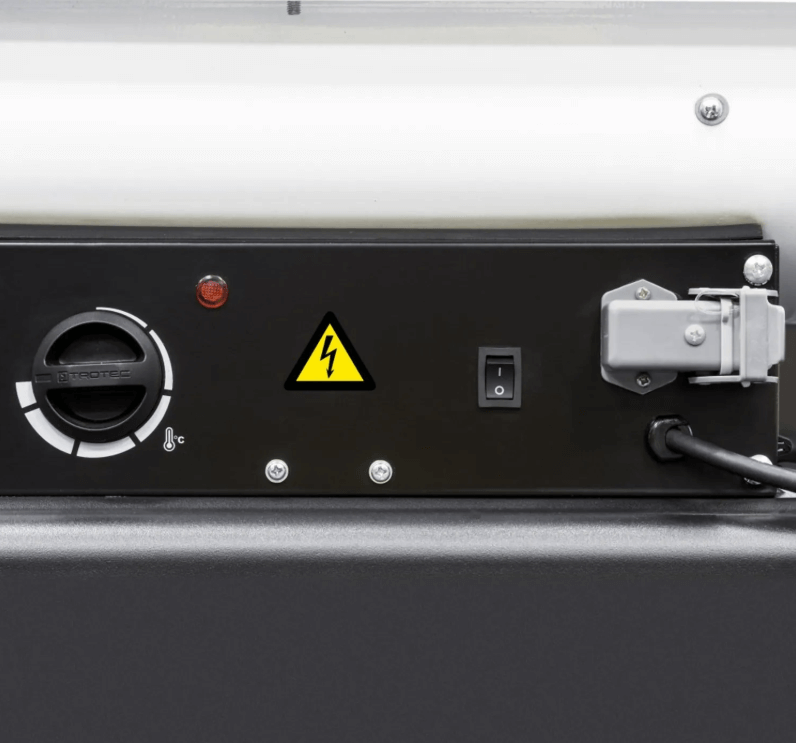

- Connection for external thermostat
- Overheat protection for safe operation
- Robust design for construction and industrial environments
- IPX4-rated for use in demanding conditions
Technical Specifications
- Model: IDE 20
- Combustion type: Indirect
- Nominal heat output: 20 kW
- Air flow rate: 600 m³/h
- Temperature rise (ΔT): 90 °C
- Max. fuel consumption: 1.9 l/h
- Fuel tank capacity: 24 L
- Approved fuels: Diesel, heating oil (EL), or kerosene

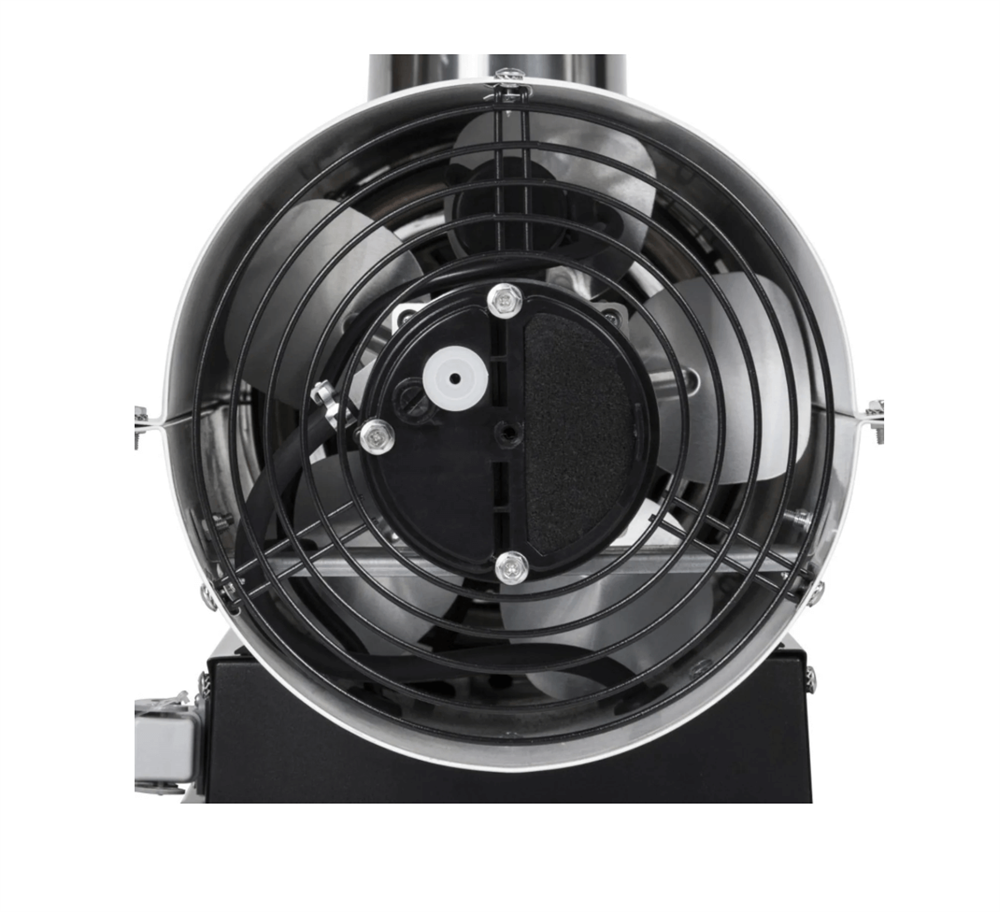

- Fan type: Axial fan
- Power supply: 230 V / 50 Hz
- Power consumption: 230 W
- Current draw: 1.1 A
- Protection class: IPX4
- Sound pressure level (1 m): 79 dB(A)
- Weight (empty tank): 22.5 kg
- Dimensions (L × W × H): 900 × 450 × 645 mm
- Flue outlet diameter: Ø 120 mm
- Max. operating humidity: 80% RH
Minimum Safety Distances
- Above: 2 m
- Rear: 2 m
- Sides: 3 m
- Front: 3 m
Applications
- Construction and renovation sites
- Warehouses and workshops
- Industrial halls and temporary structures
- Drying of building materials
- Frost protection and temporary heating
