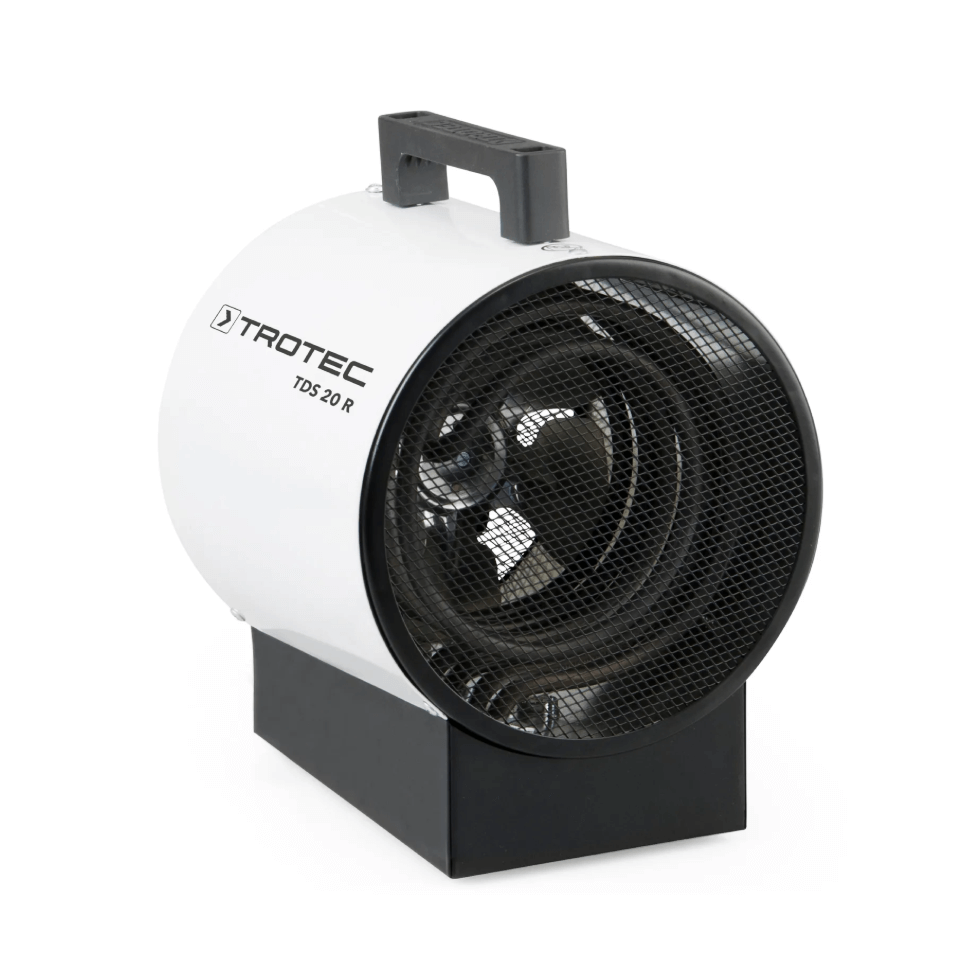

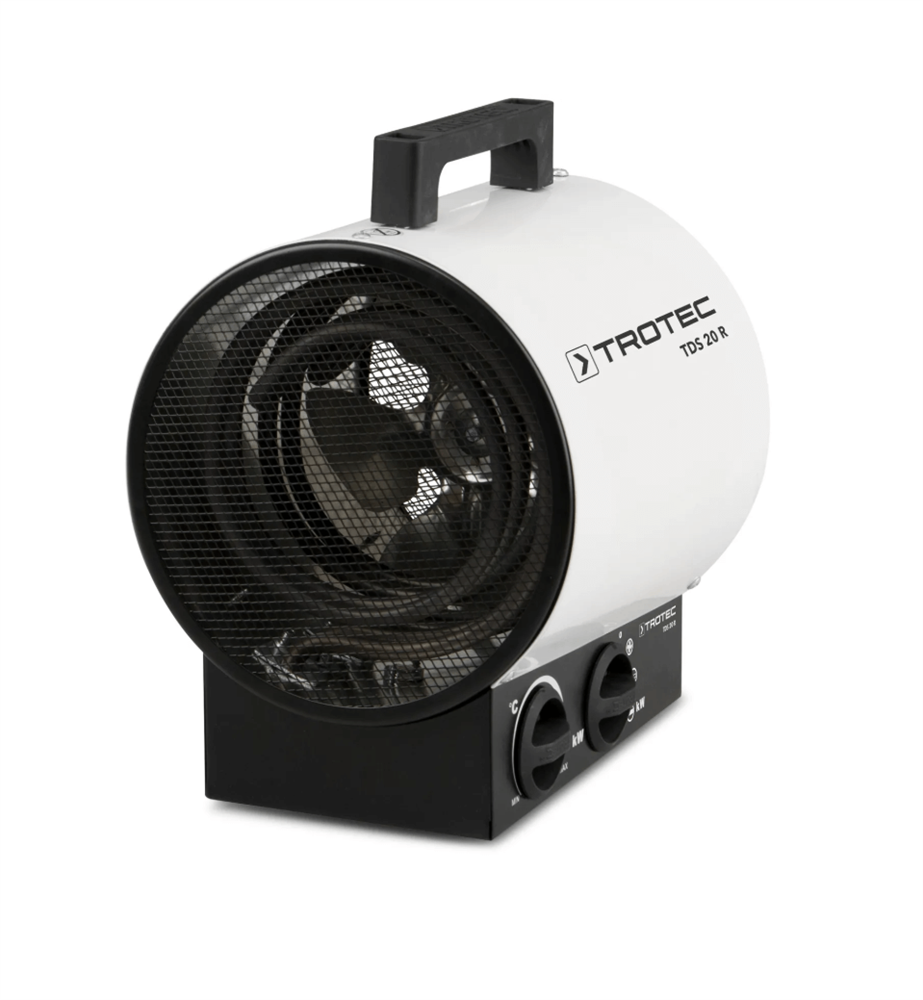

The TROTEC TDS 20 R is a robust and cost-effective electric fan heater, ideal for fast and simple heating of small spaces such as workshops, site cabins, basements, storage rooms, and garages. It is especially suitable for poorly ventilated or windowless areas where gas or oil heaters are not permitted.
With a heating capacity of up to 3 kW, the TDS 20 R is designed for rooms up to 30 m² / 75 m³. It provides comfortable and even heat without oxygen consumption or emissions, making it safe for indoor use.
The built-in continuously adjustable thermostat allows the desired temperature to be set easily. The heating elements switch on and off automatically as needed, ensuring energy-efficient operation. The axial fan delivers a high air flow of 411 m³/h, enabling rapid heat distribution.
The heater features a robust metal housing and a carrying handle for easy transport. For added safety, the TDS 20 R is equipped with tilt protection and an automatic restart function.
Technical Specifications
Performance
- Recommended room size: 30 m² / 75 m³
- Maximum heating capacity: 3 kW
- Air flow: 411 m³/h
- Sound pressure level at 1 m: 53 dB(A)
- Maximum temperature increase: 79 °C
Heating Levels
- Level 1: Fan only
- Level 2: 1.5 kW
- Level 3: 3 kW
Electrical Data
- Power supply: 230 V / 50 Hz
- Power consumption: 3 kW
- Nominal current consumption: 13.04 A
- Recommended fuse: 16 A
- Cable length: 1.37 m
Heating & Fan
- Heating element: Stainless steel
- Fan type: Axial
- Fan stages: 1
Safety & Functions

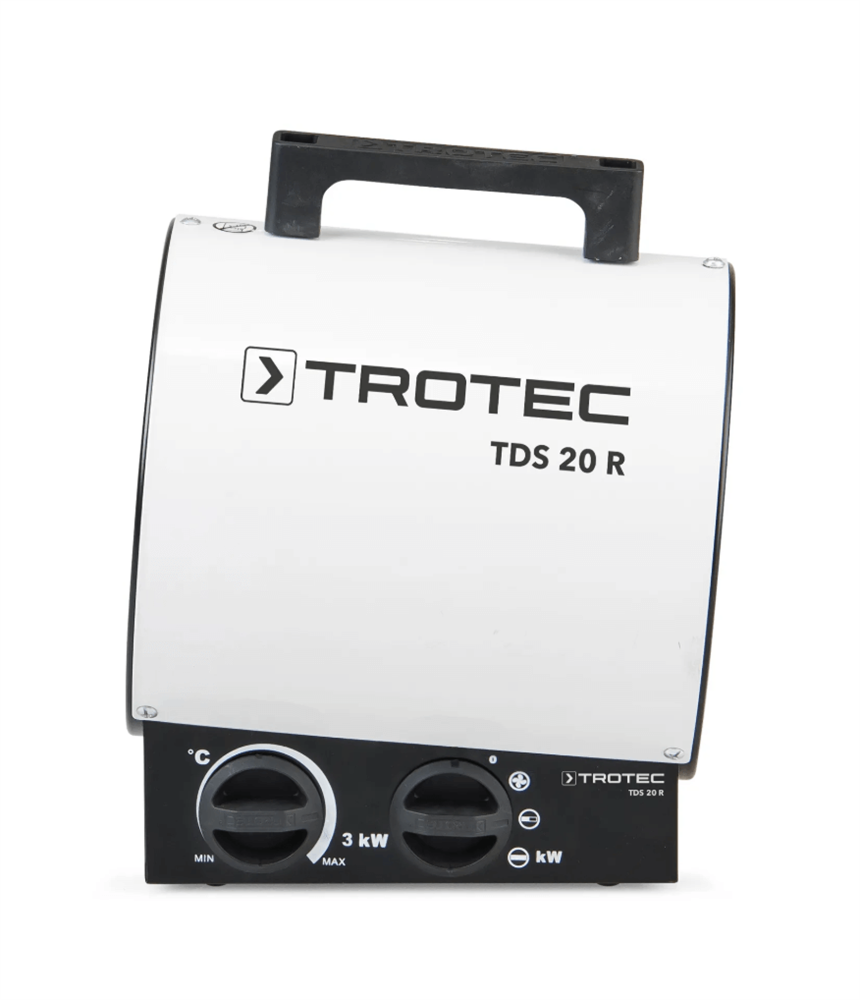

- Continuously adjustable thermostat
- Automatic restart function
- Tilt protection

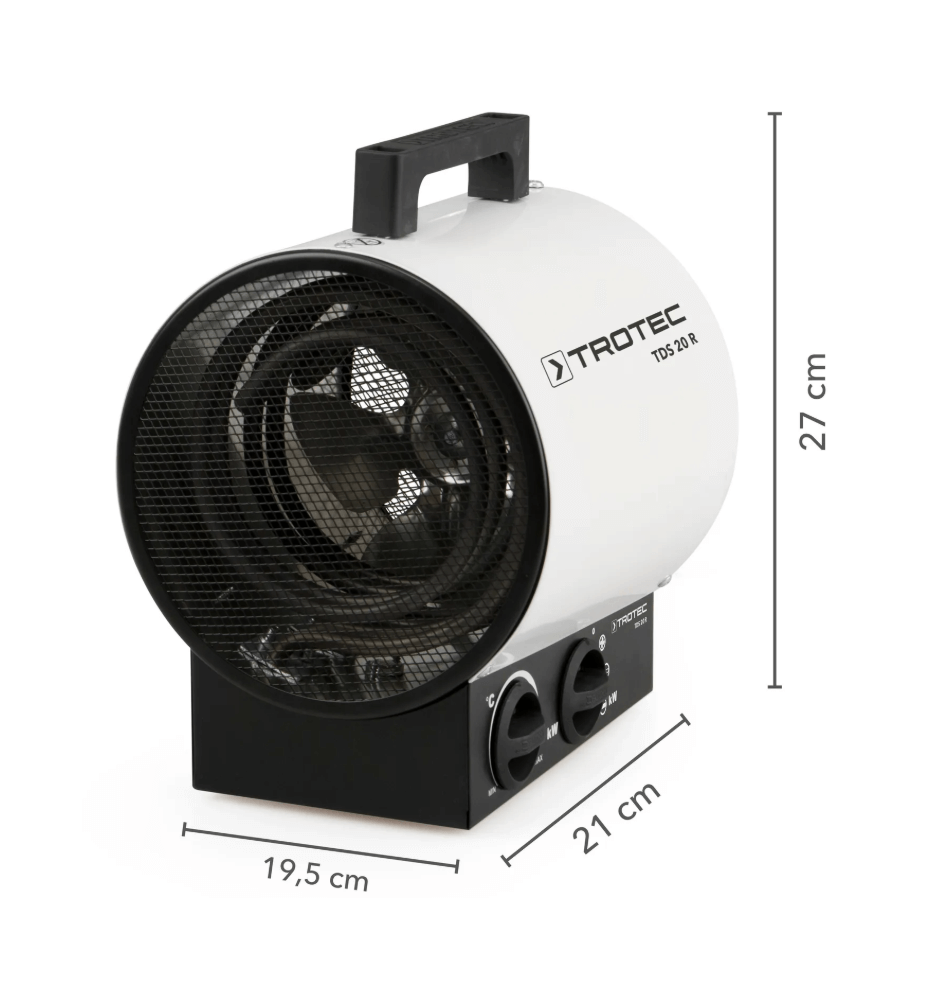

Dimensions & Weight
- Length (without packaging): 210 mm
- Width (without packaging): 195 mm
- Height (without packaging): 270 mm
- Weight (without packaging): 3 kg
- Weight (including packaging): 3.5 kg
Additional Information
- Housing: Metal
- Mobility: Carrying handle
