Moment 300-1400Nm 2-speed
Weight 6.5 kg
With more than 25 years in multiplier bolting equipment, RAD understands that heavy duty industries like railway need powerful and reliable tools.

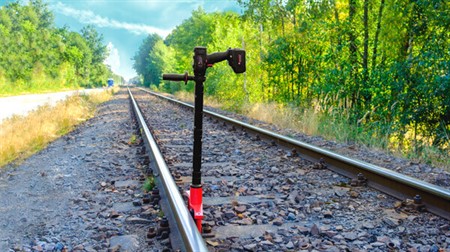

RAD’s proven gearbox technology combined with the latest battery technology has resulted in the B-RAD RAIL series.
Based on the B-RAD SELECT BL, the RAIL version of the B-RAD allows you to work for hours on Li-Ion power.
No more lugging along a heavy tool that’s emitting exhaust fumes, heavy vibrations or noise. Each B-RAD SELECT RAIL is calibrated to 5% torque accuracy.
The battery monitoring system will ensure that this accuracy is guaranteed until the battery runs low.
The B-RAD RAIL series comes with two simple buttons to increase or decrease the value by 10 Nm. The set torque value is displayed on the four- digit display.
B-RAD RAIL toolkit include:
- Standard reaction arm and retaining ring
- Tool handle for easy handling
- 2 Lithium-ion 18V / 5.2 Ah batteries
- Weatherproof storage case
- User manual
- Calibration certificate
|
Model |
Square drive |
Torque range |
RPM |
|
B-RAD RAIL 700 |
¾" or ½" |
175 - 700 Nm |
21 |
|
B-RAD RAIL 1400 |
¾" |
300 - 1.400 Nm |
10 |
|
B-RAD RAIL 1400-2 |
¾" |
300 - 1.400 Nm |
71 |
Dimensions |
 |
|
Model |
Weight |
Dim. A |
Dim. B |
Dim. C |
Dim. D |
|
B-RAD RAIL 700 |
5,3 Kg |
800 mm |
63 mm |
68 mm |
245 mm |
|
B-RAD RAIL 1400 |
5,9 Kg |
810 mm |
63 mm |
68 mm |
245 mm |
|
B-RAD RAIL 1400-2 |
6,5 Kg |
860 mm |
63 mm |
68 mm |
245 mm |
