RC30 Rail Cutter
Mobile Rail Cutter for Safe and Efficient Rail Demolition

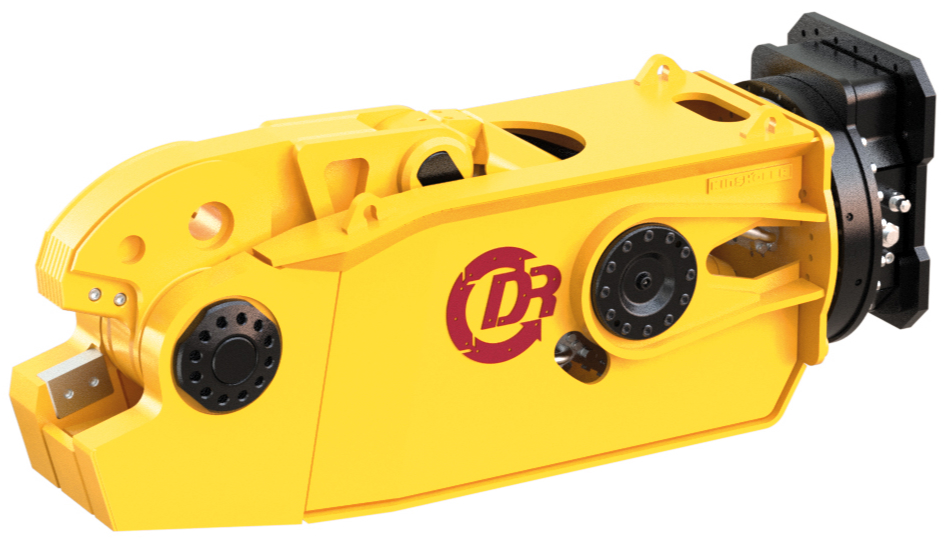

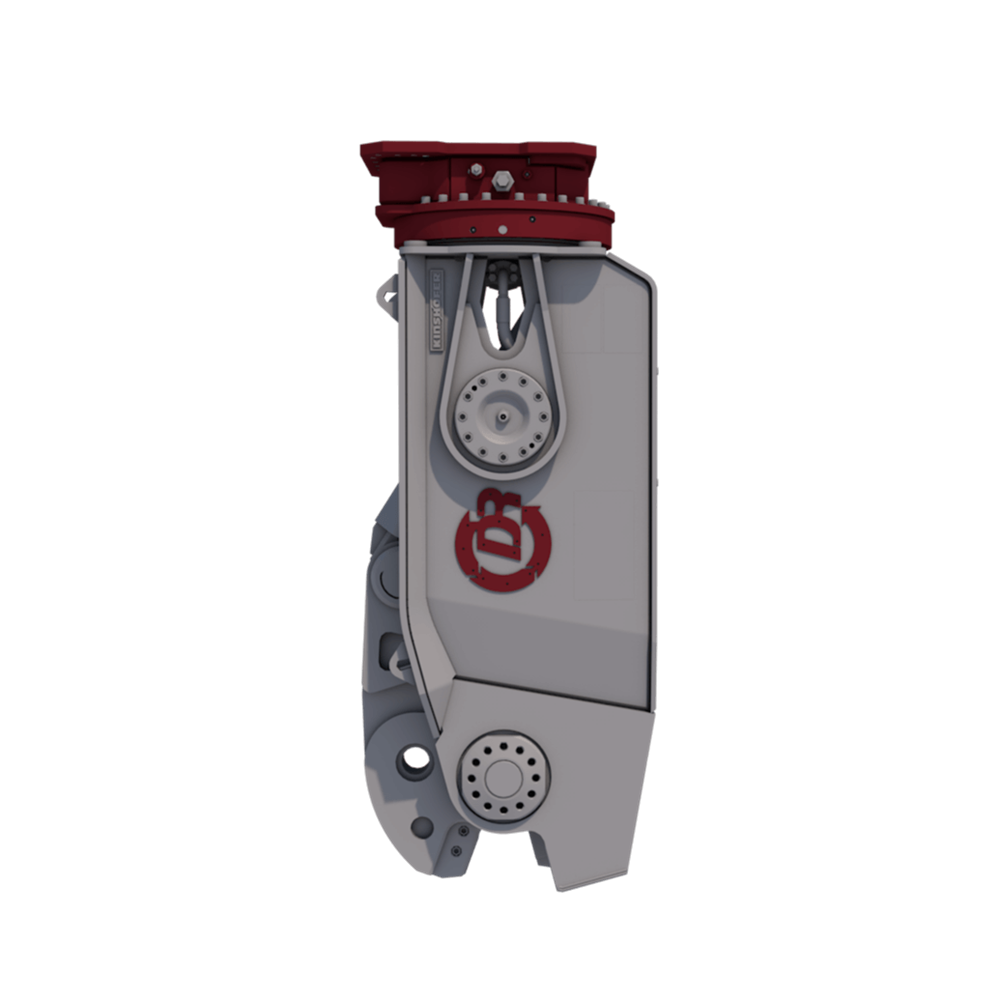

The RC30 Rail Cutter from Demarec is a powerful and mobile solution designed for controlled railway dismantling and rail recycling applications. It is engineered to cut all common Vignole rails (flat-bottom rails) with standard steel grades up to 900 N/mm² and rail profiles ranging from S7 to UIC 60.

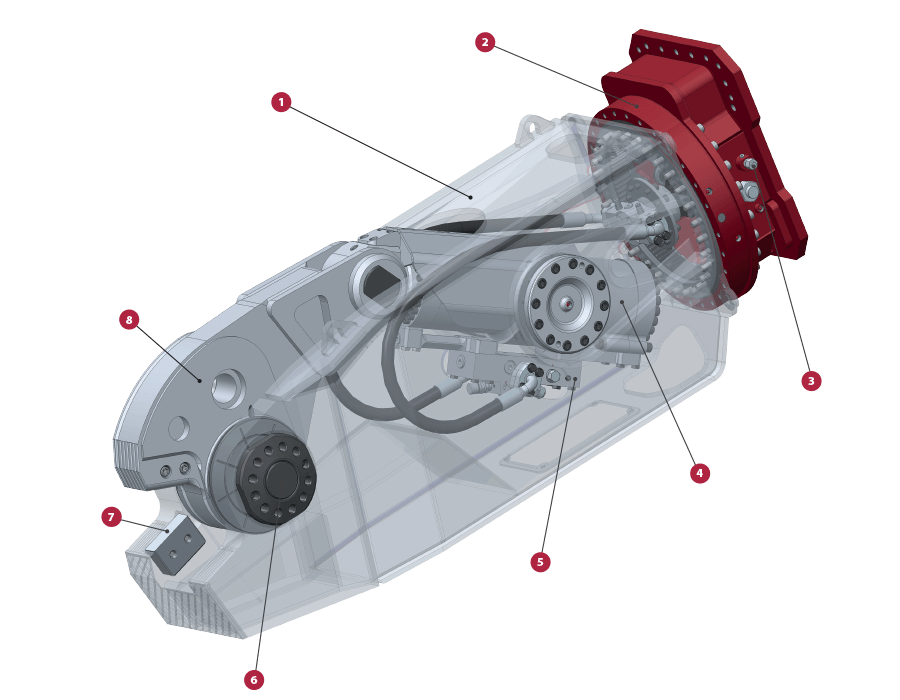

Equipped with the patented DemaPower cylinder, the RC30 delivers up to 20% more cutting force compared to conventional solutions, resulting in higher productivity and faster operating cycles. Large heavy-duty bearings reduce bushing wear and extend service life, while the body is manufactured from high-strength special steel for maximum durability in demanding environments.
For improved safety, the RC30 is designed to prevent parts from being ejected during the cutting process. The cutter is available both with and without an integrated rotator, allowing users to choose the configuration that best suits their application.
Key Features
- Cuts Vignole rails from S7 to UIC 60 profiles
- Suitable for standard rail steel grades up to 900 N/mm²
- Patented DemaPower cylinder for up to 20% higher performance
- Durable body made from high-strength special steel
- Large heavy-duty bearings for reduced wear and longer service life
- Safe cutting operation with no parts being thrown during cutting
- Available with or without integrated rotator

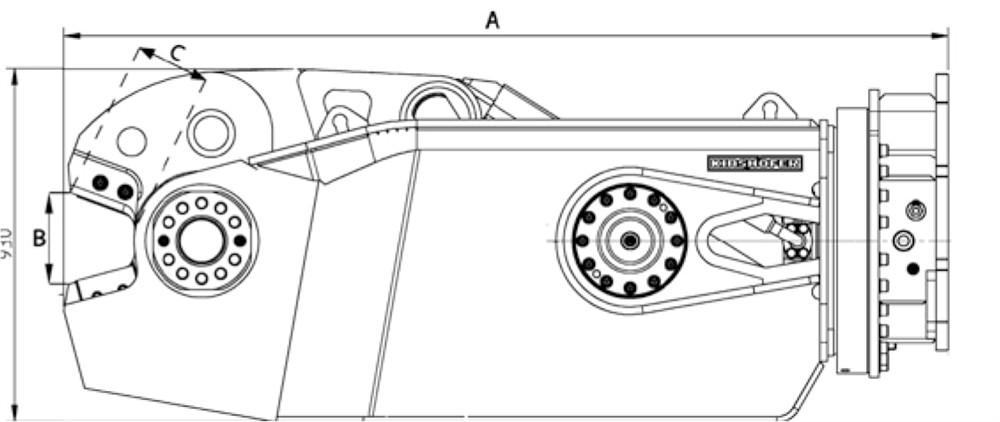

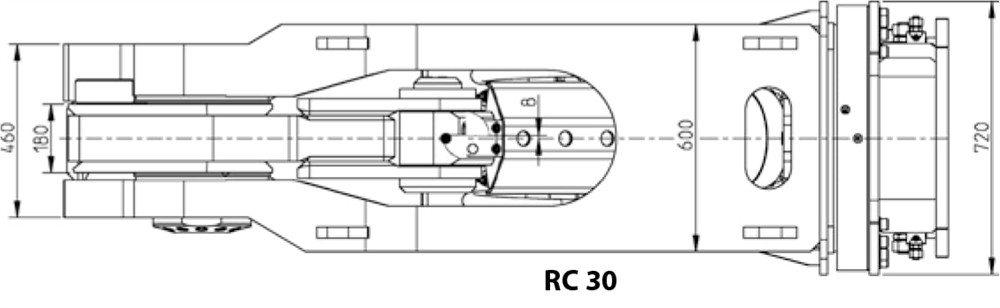

Technical Specifications
| Specification |
Value |
| Operating Weight with Rotator |
2,650 kg (excluding mounting bracket) |
| Operating Pressure |
Max. 320 bar |
| Oil Flow |
150–250 l/min |
| Recommended Carrier Size |
22–35 tonnes |
Optional Equipment
- Machine-specific mounting bracket
Applications
The RC30 Rail Cutter is the ideal solution for railway contractors, demolition companies, and infrastructure maintenance teams involved in rail removal, track renewal projects, and rail recycling operations.
