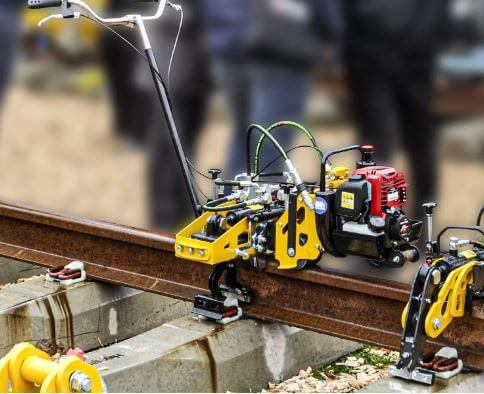

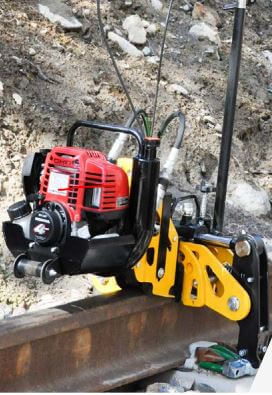

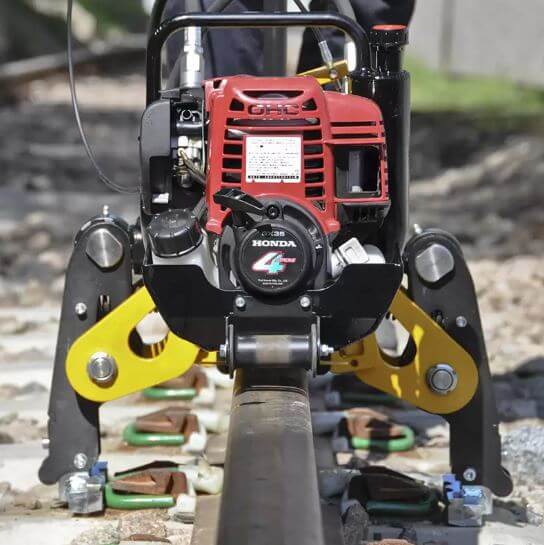

Clip Driver CD100
A versatile manual tool for fastening and unfastening FASTCLIPS.
With a capacity of up to 10 sleepers/minute and ergonomic design, CD100 is ideal for minor fastening and unfastening works, such as during switch replacement. The low weight allows CD100 to be easily lifted on and off the track by one person.
The tool is powered by a gasoline engine and balanced by a support wheel, creating excellent ergonomics for the operator, reducing the risk of strain injuries.
Thanks to its design, CD100 can lift sleepers up to 10 mm during fastening.
CD100 consists of three different modules: the engine unit, fastening tool, and unfastening tool.
Benefits
- Compact design and low weight
The compact design and low weight make CD100 ideal for minor maintenance tasks where the work is carried out by a single person
- Ergonomic Design
The ergonomic construction and low weight allow the operator to adjust CD100 for safe operation, reducing the risk of strain and wear injuries.
- Minimized risk of injuries
CD100 eliminates the need for manual tools for fastening and unfastening Fastclip, thereby reducing the risk of injuries associated with these tasks.
- Versatile tool
The modular design allows for easy interchangeability of tools for fastening and unfastening.
Technical Data
Power Unit
Weight: 16 kg
Height: 400 mm
Length: 480 mm
Width: 260 mm
Effect: 1,2 kW
Max. hydraulic pressure: 190 bar
Noice level (Idling): 74 dB (A)
Noice level (Working): 98 dB (A)
Additional Information
CD100 is delivered with CE marking according to the standard:
- Machinery directive: 2006/42/EC
- Electromagnetic compatibility (EMC): 2014/30/EU
- Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010
- Safety of machinery – Control systems: EN ISO 13849-1:2015
Product Approval:
- Network Rail: PA05/03211
- SNCF: AGT 23 217
