  • Rälsslip FCS-MPR 4000 Elektrisk

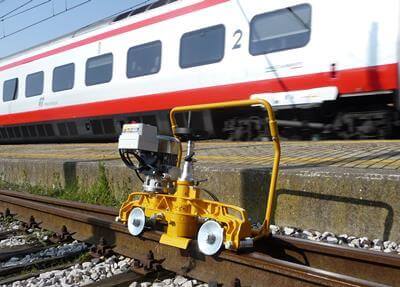

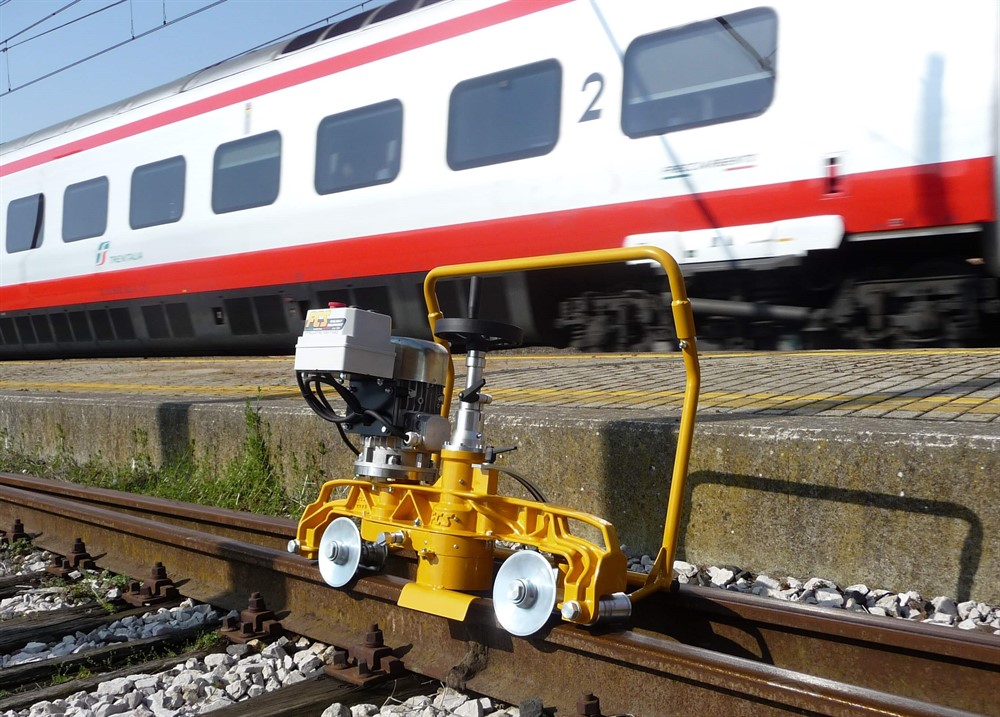

Rail Head Grinding Machine Electric

Part No 58692250
Weight (kg) 65
E-mail for price
To order
Product question

What would you like to know about Rail Head Grinding Machine Electric?



Electric engine.
Designed to make the re-profiling of the rail head after welding.

It is equipped with a lightweight petrol engine, which involves a low fuel consumption.
It also has a continous forced cycle system of lubrification and carburation, which allows to tilt the machine by 90° and therefore the grinding of all the rail head.
The transmission from the engine to the grinding stone happens thanks to a V-belt with a tensioner.
The protected action of the belt, the grinding wheel and a comfortable steering bar, with inserted stop button motor, guarantee maximum safety and minimal effort for the operator.

The machine is also equipped with: two rollers for longitudinal displacement on the rail, two lateral supports which ensure stability during operation, handwheel adjustment depth of grinding with a graduated scale, block and guide rod for tilting machine.

Technical data
Electric engine
3,0 kW
2880 rpm
1100x600x900 mm
73 kg

Grindingcup Ø150mm
