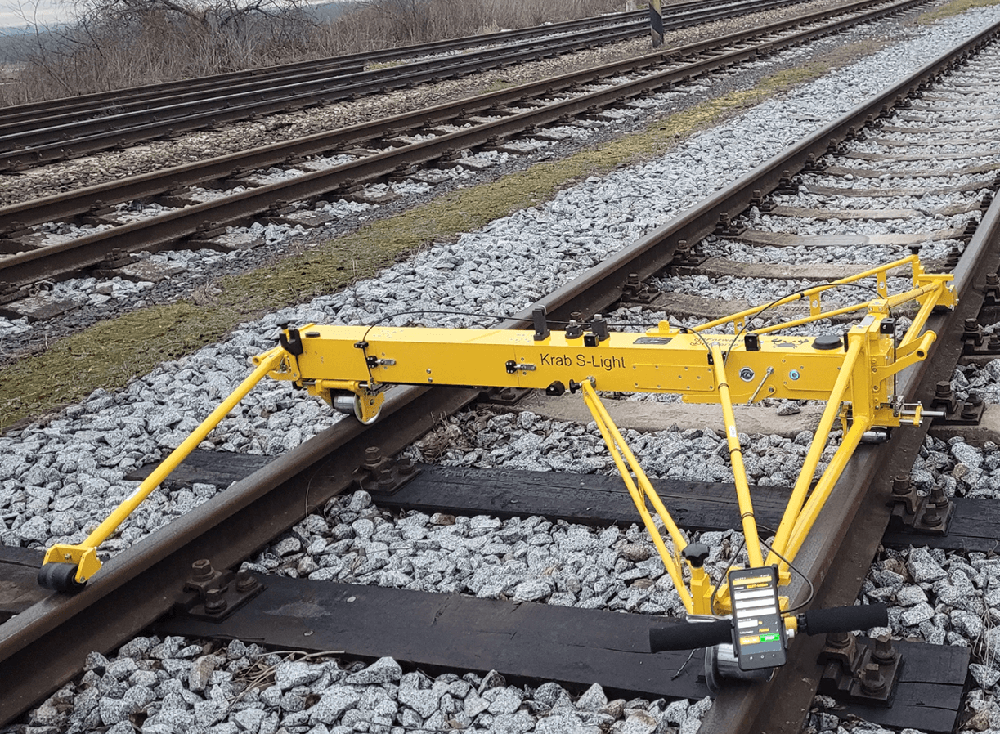

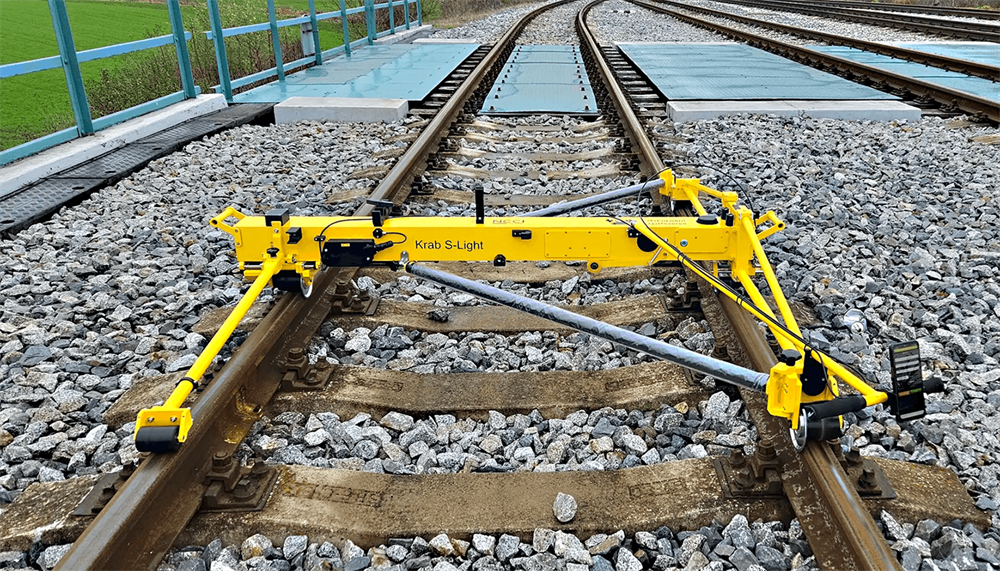

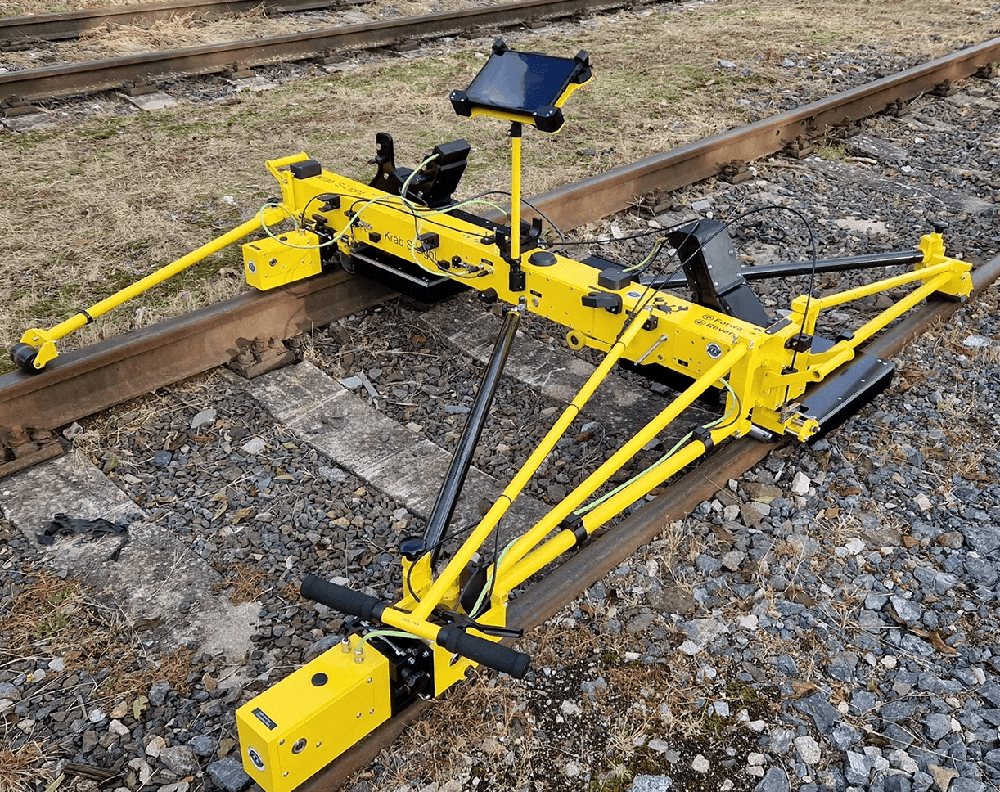

KRAB S-Light – Track Geometry Measuring Trolley
KRAB S-Light is a modern and lightweight track geometry measuring trolley designed for accurate measurement of key railway track parameters. The system is developed for fast inspection and analysis directly in the field.

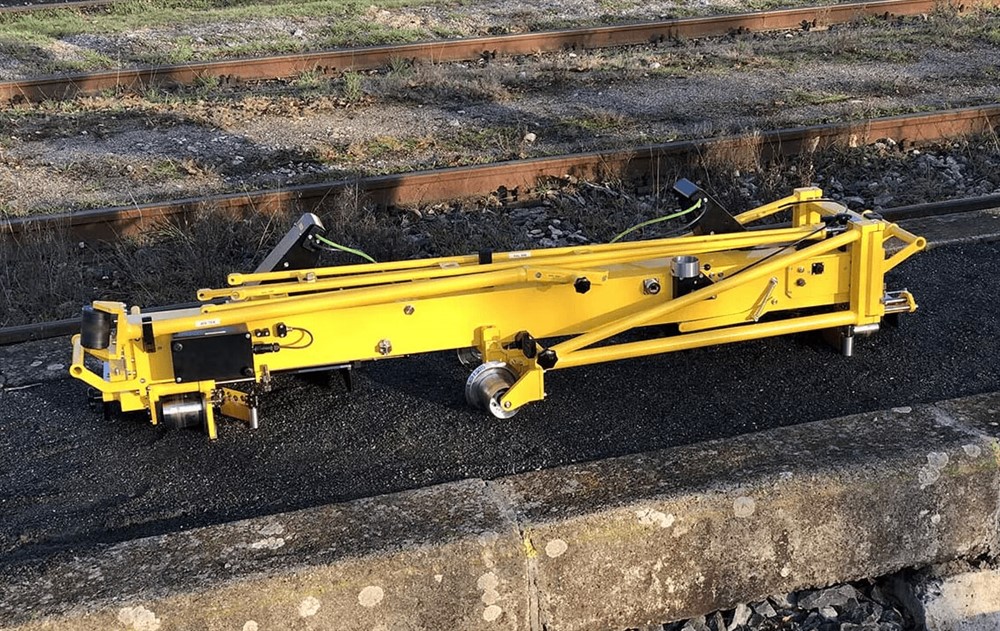

Thanks to its compact design, the trolley can easily be handled by a single operator and quickly placed on the track. KRAB S-Light is used by railway contractors, infrastructure companies, and technical inspectors to monitor and evaluate track conditions.
What KRAB S-Light Measures
The measuring trolley records several important track geometry parameters:
Track Gauge
Measures the distance between the rails to ensure the correct track dimension.
Cant (Superelevation)
Measures the height difference between the left and right rail.
Twist
Detects torsion and irregularities in the track.
Horizontal Alignment
Checks the lateral direction and alignment of the track.
Vertical Alignment
Measures vertical variations and unevenness in the track.
These measurements allow quick detection of track geometry deviations and help plan maintenance activities.
Technical Specifications
Product: KRAB S-Light
Type: Track Geometry Measuring Trolley
Weight: approx. 33 kg
Maximum measuring speed: up to 15 km/h
Accuracy: approx. ±1 mm
Track gauge range: adjustable between 760 mm – 1676 mm
Battery operation: up to 8 hours
Battery type: rechargeable battery system
Data collection: digital recording of track geometry
Memory capacity: up to approximately 2000 km of measurement data
Measurement interval: continuous data recording during operation

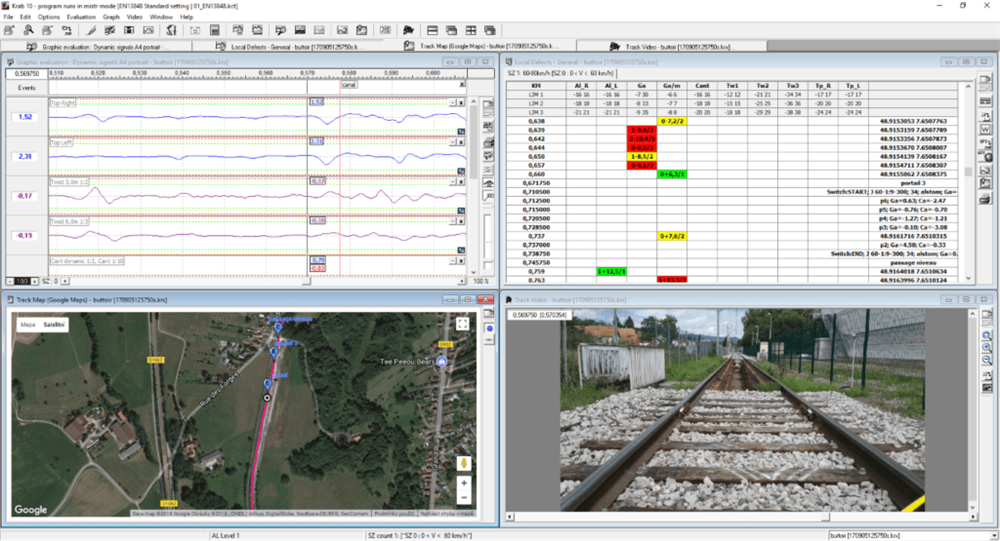

Software: Measurement data is digitally stored and can be analyzed using KRAB software / KrabDroid, allowing the user to:
- visualize track data
- analyze track geometry
- generate reports
- export measurement data
Applications
KRAB S-Light is used for:
- railway track inspection
- control of newly constructed tracks
- inspection after track maintenance or tamping

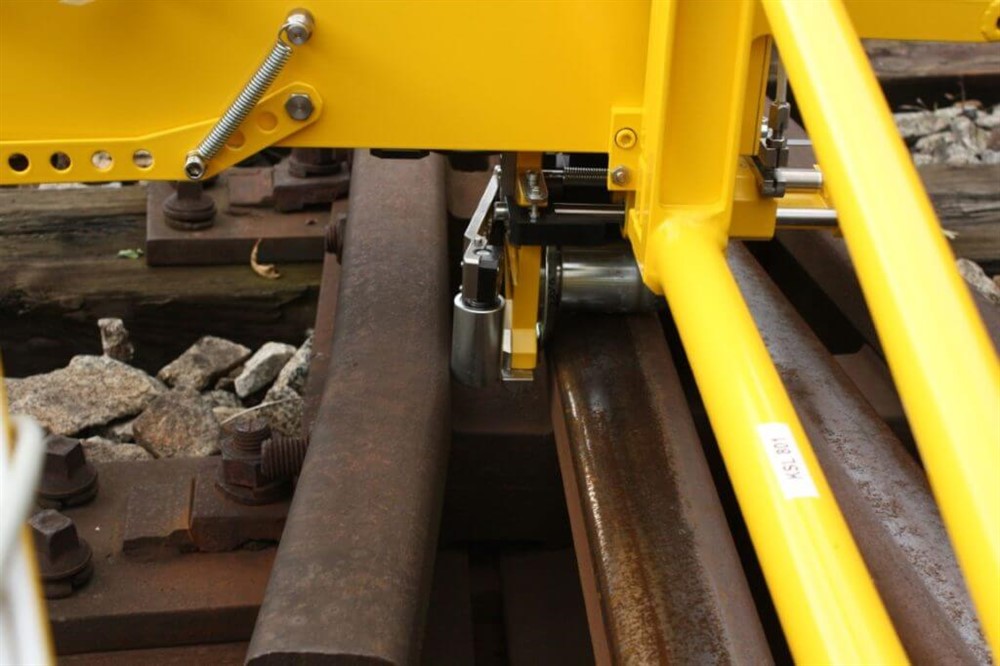

- turnout inspection
- documentation of track geometry
- preventive maintenance
Advantages
- ✔ Lightweight and easy to handle
- ✔ Operated by a single person
- ✔ Quick installation on the track
- ✔ High measurement accuracy
- ✔ Digital data storage
- ✔ Advanced data analysis capabilities
Optional Equipment
KRAB S-Light can be equipped with several optional features:

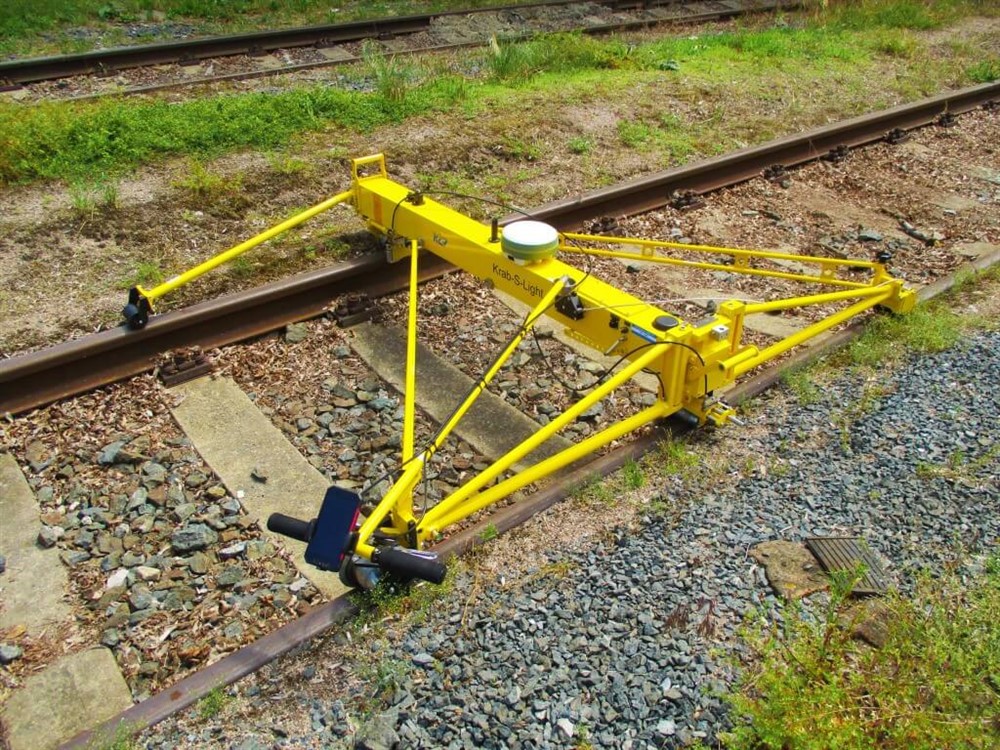

- GNSS / GPS positioning
- camera for visual inspection
- rail profile measurement
- integration with analysis software
