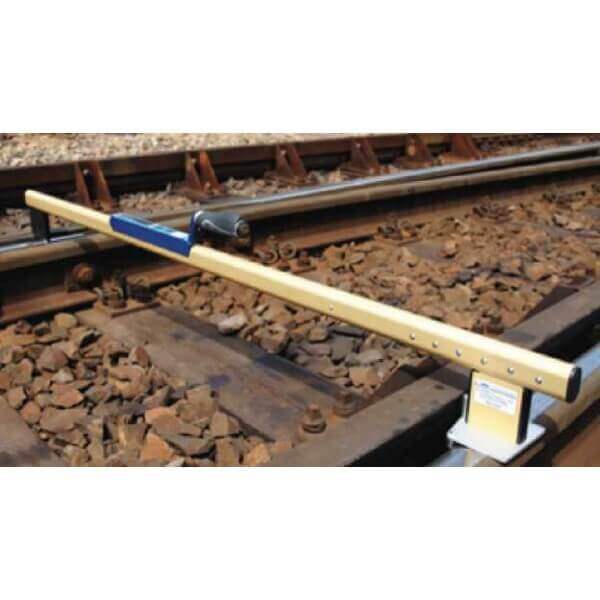

Trackgauge Solar STI-1435, 1435mm

SPECIFICATIONS

• Dimensions (L x W x H) 1 660 x 250 x 115 mm
• Weight 2.8 kg
• Measuring increment 0.5 m; 1.0 m; 5.0 m and 10.0 m
• Gauge (measured) Accuracy: ±0.3 mm Measurement ranges: -20 … +50 mm
• Cant (measured)Accuracy: ±0.5 mm Measurement ranges: ±250 mm
• Groove width – left and right (measured) Accuracy: ±0.4 mm Measurement ranges: 26 ... +75 mm
• Operating time 24 h of continuous work
• Memory capacity 8 000 measurement files
• Operating conditions Temperature: -20ºC … +45ºC Humidity: 15 … 85%, no condensation Rain and frost resistant

CONTENTS

• Trackgauge Solar device
• Transport box

BENEFITS

• User-friendly one-man operation and transport
• Reliable measurement data acquisition and transmission of up to 8 000 measurement files, which can be saved directly on the device and be transferred as TXT file to a PC with a USB flash drive
• Rechargeable Li-Ion long-life batteries supported by a solar battery enable 24 hour continuous operation
• Flexible measuring device that makes switch measurements possible in a single gauge position, no turning needed
• Available for all track gauges
