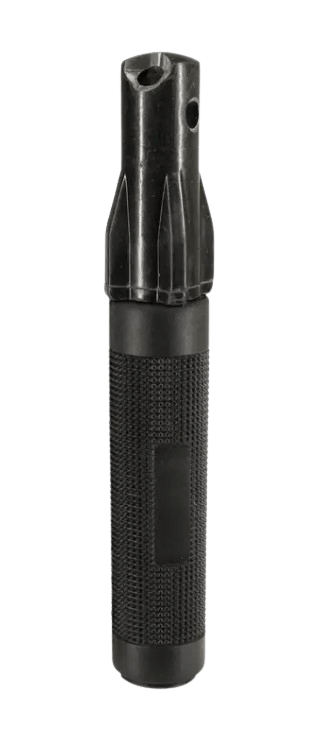

The MYKING electrode holder features a robust brass body and a cable connection secured with an Allen screw, ensuring excellent electrical conductivity and high operational reliability. It is designed for demanding welding applications where high current capacity and long service life are essential.
The electrode holder is rated up to 600 A and is suitable for intensive use. It is equipped with two selectable electrode angles (45° or 90°), providing flexibility for different welding positions.
Two screws for cable fastening ensure secure electrical contact and effective strain relief. The absence of a spring-loaded electrode clamping mechanism minimizes wear and contributes to low maintenance costs and reduced production downtime.
The holder offers an ergonomic grip with good balance and is well insulated from live electrical parts for enhanced safety.
Technical Specifications
- Rated current (60/35% duty cycle): 600 A
- Weight / Cable cross-section: 535 g / 50–70 mm²
- Type of holder: MYKING / Screw type
- Connection: Without cable
- Cable length: 0 m
- Suitable up to: 600 A
