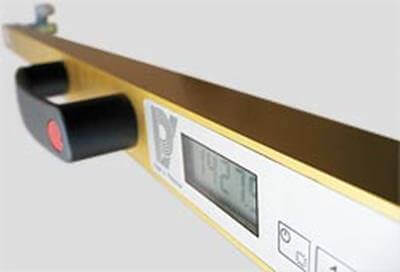

Digital switch gauge and cant measuring device from Vogel & plötcher.
The benefits of digital measuring with this device are convincing: the use of the device is simplified and an even higher level of accuracy and safety is offered, too.
It shows the measured values on a clear LCD-display. This means that all required data are easily seen at a glance while reading errors or inaccuracies are successfully avoided.
Because of the back-illuminated LCD-display measurement operations in gloaming or darkness are also supported.
+ digital measuring
+ data capture with accuracy of 1/10 mm
+ illuminated LCD-display
+ values can be saved on SD-memorycard
Effective ranges (for gauge 1435 mm)
Track gauge: 1366 - 1475 mm
Check rail gauge: 1346 - 1455 mm
Back-to-back distance: 1326 - 1435 mm
Flangeway clearance: 20 - 128 mm
Cant: ± 200 mm
Dimension and weight:
Length x Width x Height: 104 x 1618 x 156 mm
Weight: 2,8 Kg*
The device is insulated and officially approved by DB.
Power supply by 2 x 1.5 V batteries (type AA).
This is available for other track gauges, too.
(i.e. 1000 mm, 1524 mm, 1668 mm).
By default the device's electronics are prepared for operation from -10°C up to +45°C.
In general any measurement below 0°C may cause restrictions or poor results
due to ice on track, temperature influence on material etc. Furthermore the
LCD display reacts more slowly and battery lifetime is reduced, too, at low temperature.
Kallas ibland även spårpass, växelpass
Köp till väska 97249102
