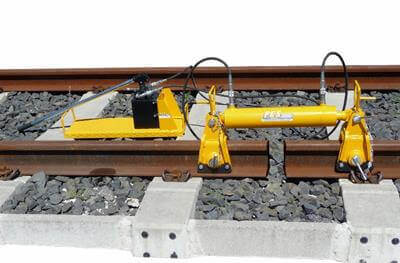

Hydraulic rail stressor MI8 with Honda engine, without drag shoes.
Drag Shoes sold seperatly, please see related products below.
Designed to approach and remove rails in complete safety.
Traction force : 80 kN[Q]
Manual hydraulic power unit : 200 bar
Total weight with power unit : 85 kg
The system is made of:
- Hydraulic power unit with built-in oil tank
- Reversing valve stroke
- Hydraulic tubes with quick connect couplings
- Platform with rusticated base and a lever sized to work safely and with minimal operator ‘s effort
- Double effect hydraulic cylinder with quick couplings and handles
- Two clamp for rail blocking with interchangable drag shoes for the different types of rail and handle
- Pins assembly made with material of the highest quality
Optional:
- Pulling bars of 1500mm
- Hydraulic pump with electric engine
| ………………..Model…………….. |
|
MI 8 |
| |
|
|
| Traction force |
kN |
80 |
| |
|
|
| Manual hydraulic power unit |
bar |
200 |
| |
|
|
| Total weight with power unit |
kg |
85 |
