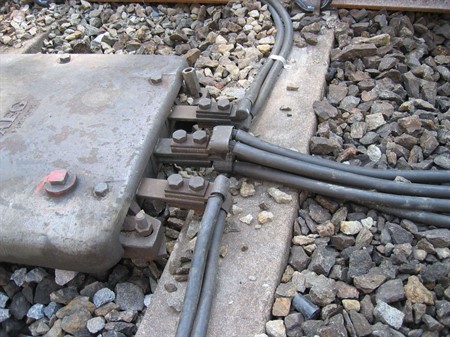

Safetrack impedance bonds are designed for railway signaling systems where reliable electrical continuity and signal integrity are critical. Used in track circuits and return current applications, they ensure low resistance, stable performance, and long service life in demanding rail environments.
Safetrack impedance bonds provide continuity between railroad and transit track circuits for both AC and DC propulsion current. They ensure balanced distribution of return current between the rails, supporting stable and efficient railway operation.
Designed to work seamlessly with the Pin Brazing system for railway applications, the impedance bonds enable strong and reliable electrical connections, even in demanding environments.
Each impedance bond is made of insulated copper cable with low electrical resistance, optimized for consistent performance and long service life in railway signaling systems.
On electrified railroads, impedance bonds are a critical component for maintaining both operational safety and signal integrity. They provide a continuous path around insulated rail joints for return propulsion current, while confining alternating-current signaling energy within its designated track circuit.
An impedance bond is a key component in railway signaling systems. It allows traction return current to pass between rail sections while isolating signaling currents within track circuits.
This ensures accurate train detection, safe operation, and efficient electrical performance across electrified railway networks.
Safetrack impedance bonds are commonly used in:
Safetrack impedance bonds are engineered to withstand the challenges of railway infrastructure, including vibration, weather exposure, and corrosion.
The robust construction ensures long-term reliability and consistent performance, even under high electrical loads and extreme operating conditions.
