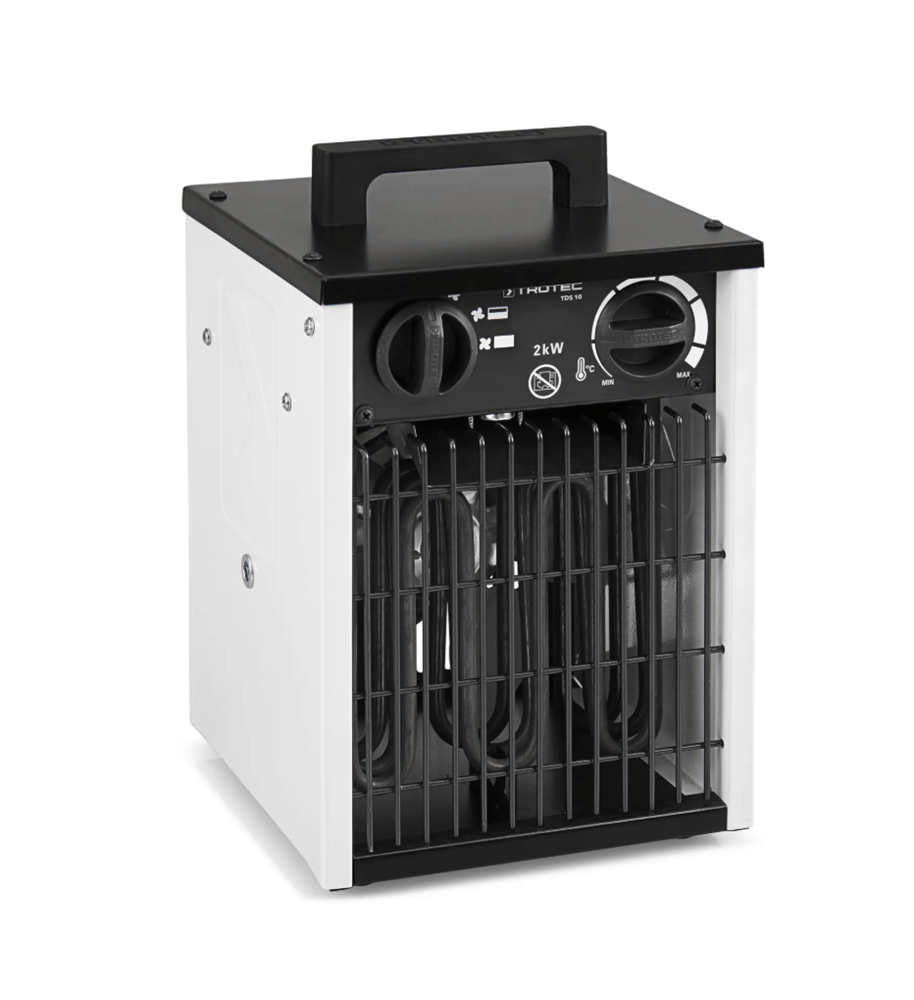

The TROTEC TDS 10 is a compact and efficient electric fan heater designed for reliable heating of small spaces such as site cabins, basements, storage rooms, and small work areas. Its robust metal construction and well-engineered design make it suitable for both professional and semi-professional applications.
The heater delivers a heating capacity of up to 2 kW and is suitable for rooms up to 25 m² / 60 m³. The continuously adjustable thermostat allows the desired temperature to be set easily, activating the heating elements only when required, while the fan runs continuously to ensure even heat distribution.
The TDS 10 is equipped with a stainless steel heating element and an axial fan providing an air flow of 186 m³/h. With a low sound pressure level of just 46 dB(A), the heater is well suited for environments where low noise is important.
Its compact size combined with two side-mounted threaded fittings allows the use of optional wall or ceiling brackets, providing flexible installation options. For added safety, the heater features tilt protection, automatic restart, and integrated overheating protection.
Technical Specifications
Performance
- Recommended room size: 25 m² / 60 m³
- Maximum heating capacity: 2 kW
- Air flow: 186 m³/h
- Sound pressure level at 1 m: 46 dB(A)
- Maximum temperature increase: 95 °C
Heating Levels
- Level 1: Fan only
- Level 2: 1 kW
- Level 3: 2 kW
Electrical Data
- Power supply: 230 V / 50 Hz
- Power consumption: 2 kW
- Nominal current consumption: 8.7 A
- Recommended fuse: 16 A
- Cable length: 1.35 m
Heating & Fan
- Heating element: Stainless steel
- Fan type: Axial
- Fan stages: 1
Safety & Functions

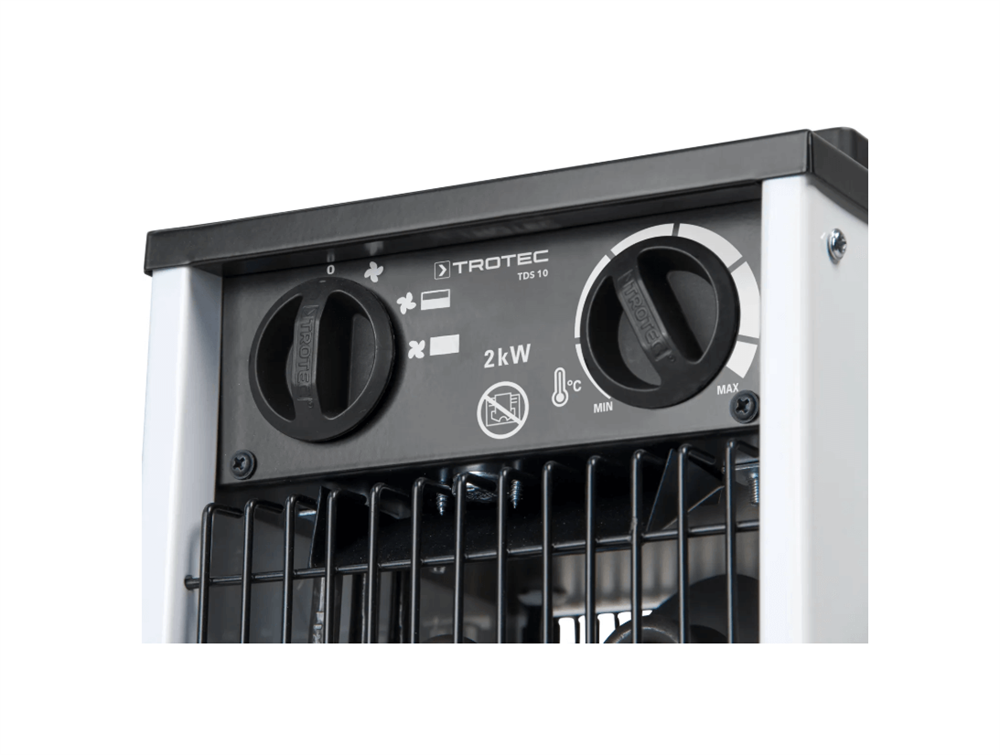

- Continuously adjustable thermostat
- Automatic restart function
- Tilt protection
- Overheating protection

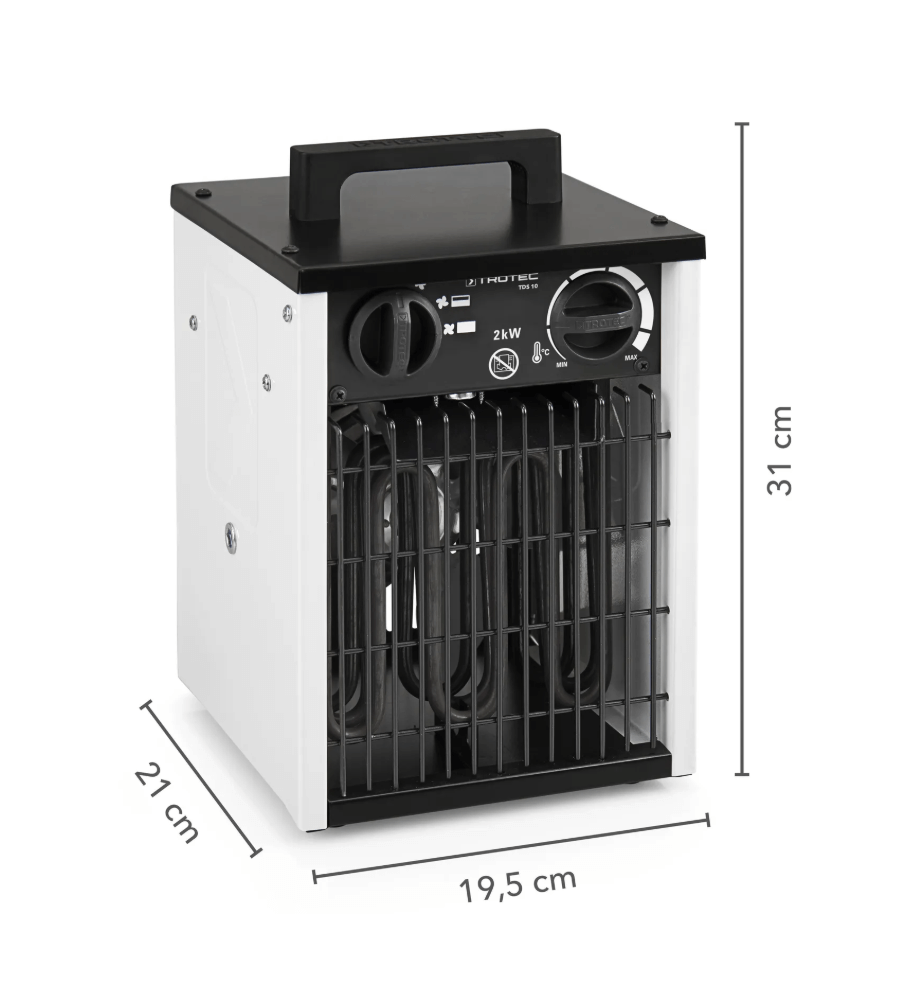

Dimensions & Weight
- Length (without packaging): 210 mm
- Width (without packaging): 195 mm
- Height (without packaging): 310 mm
- Weight (without packaging): 3.5 kg
- Weight (including packaging): 4 kg
Additional Information
- Housing: Metal
- Mounting options: Wall or ceiling (via side mounts)
