Voltage testing for railways with third rail

Part No 49287015

Weight (kg) 2

E-mail for price

SEK

To order

Product question

What would you like to know about Voltage testing for railways with third rail?

Your name*

Your e-mail*

Question: (Please also write your company name and country)

Send

Description

Voltage tester for 3rd-rail

This special voltage tester is a special tool for testing on covered busbars in subway systems.

Due to the solid rubber housing, the tester is very robust and ideal for rough working conditions. Its two display systems, analogue meter and LED provide a safe indication in any environment. With its additional green LED, the self-test is easy to read in any environment.

Field of application:

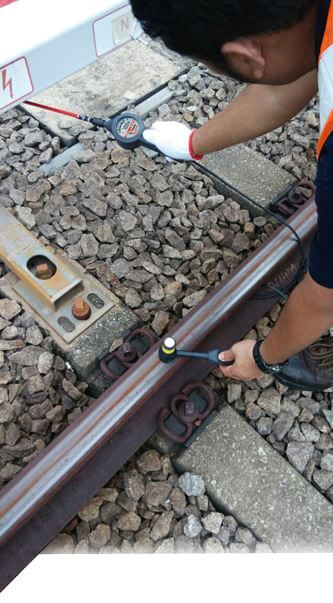

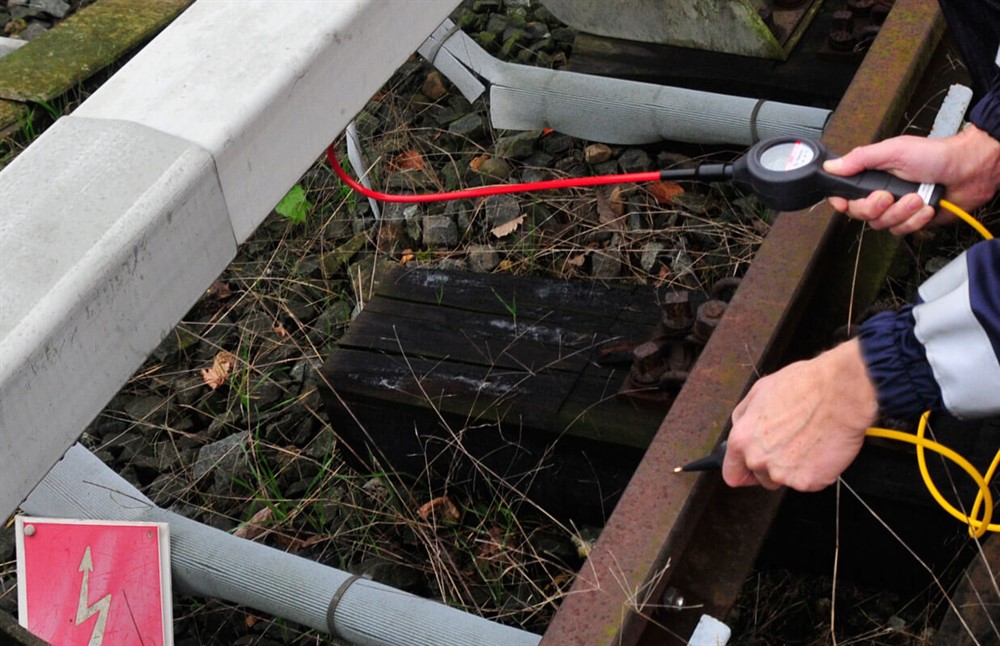

optimized for use with subways and trains with 3rd-rail busbars

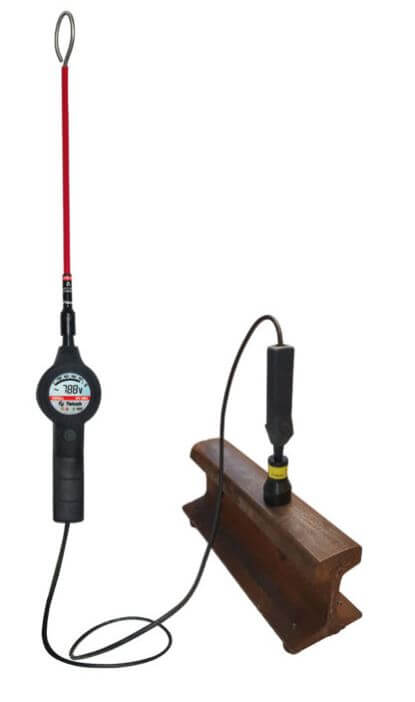

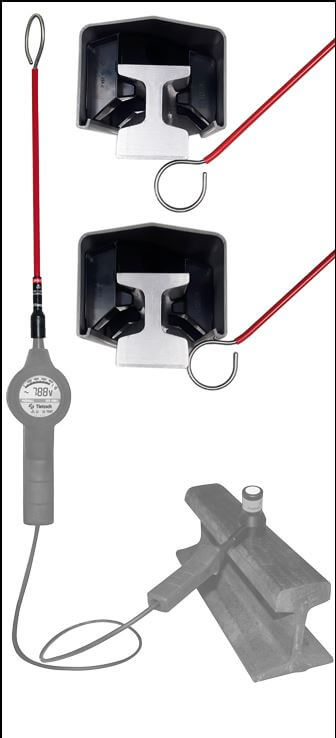

easier and safer handling by extension and contact magnet
maintenance-free thanks to integrated longlife battery for self-test

Voltage tester:

precise display of the voltage 50 V – 1000 V AC/DC
extremely resistant to voltage – CAT IV 1000 V – VDE certified (IEC 61243-3)
clear LED indicator for dangerous voltage
load connection to determine interference voltages
full voltage indication without battery – maintenance free
large LCD display with backlight

Self-test:

integrated self-test with green LED for quick checking of the display, connection cable and ground connection

More functions:

safety housing made of solid rubber extremely shockproof
test electrodes with thread for screwing on accessories
easy operation
insulation fault detection by two-color cable insulation
extremely stable housing, even in cold environment
IP 65 – waterproof

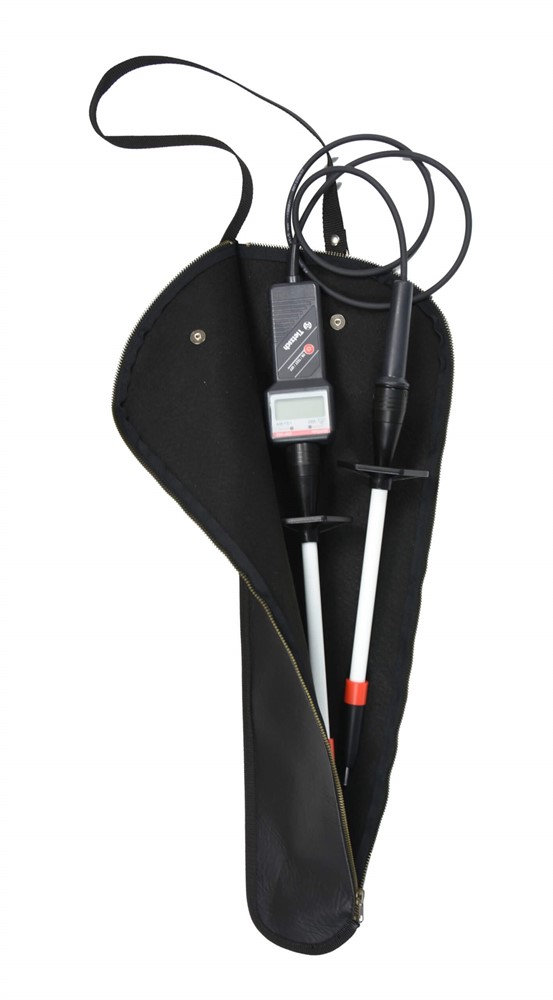

Supplied with voltage tester, magnet for rail, extension electrode 400mm and bag.
