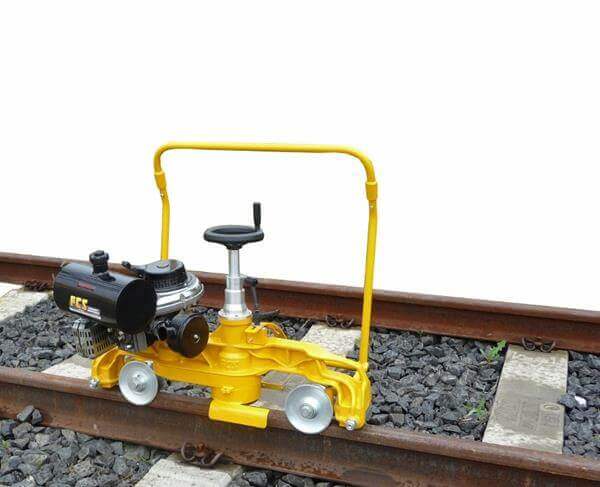

Mixture engine.
Designed to make the re-profiling of the rail head after welding.
It is equipped with a diesel engine which is lubricated even when the machine is inclined by 90°.
The transmission from the motor to the spindle housing grinding wheel happens thanks to a V-belt with the voltage regulator.
The protected action of the belt, the grinding wheel and a comfortable steering bar, with inserted stop button motor, guarantee maximum safety and minimal effort for the operator.
The machine is also equipped with: two rollers for longitudinal displacement on the rail, two lateral supports which ensure stability during operation, handwheel adjustment depth of grinding with a graduated scale, block and guide rod for tilting machine.
Tecnical data
3,5 kW
4000 rpm
840x1000x990 mm
64,5 kg
Grindingcup Ø150mm
