Rail Telehandler

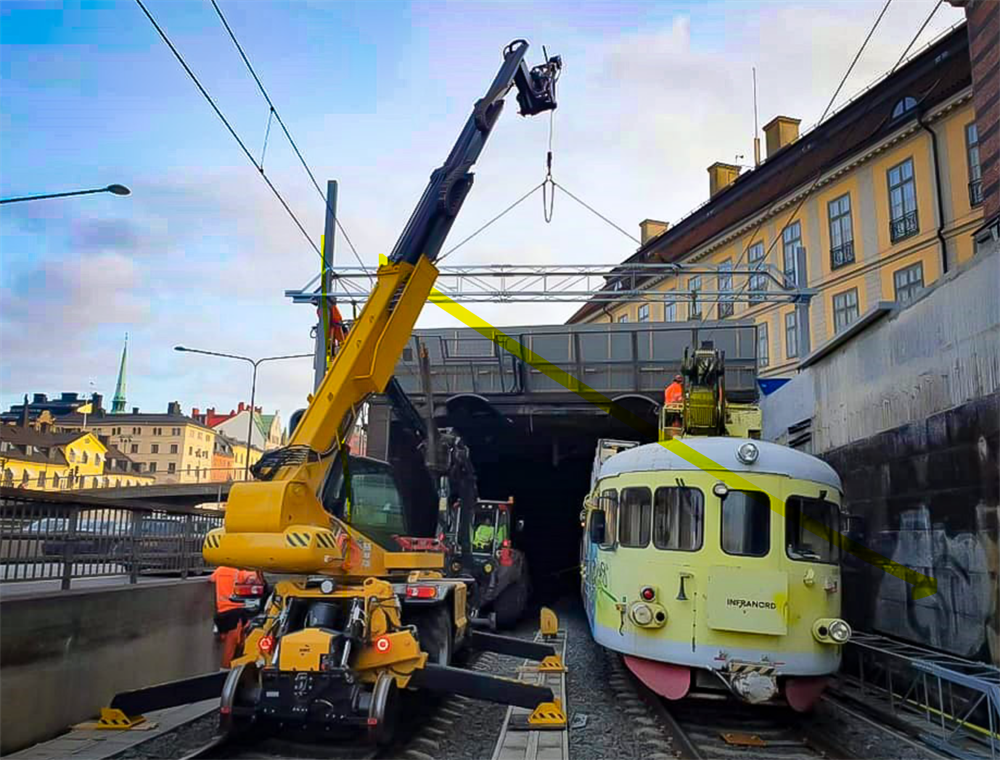

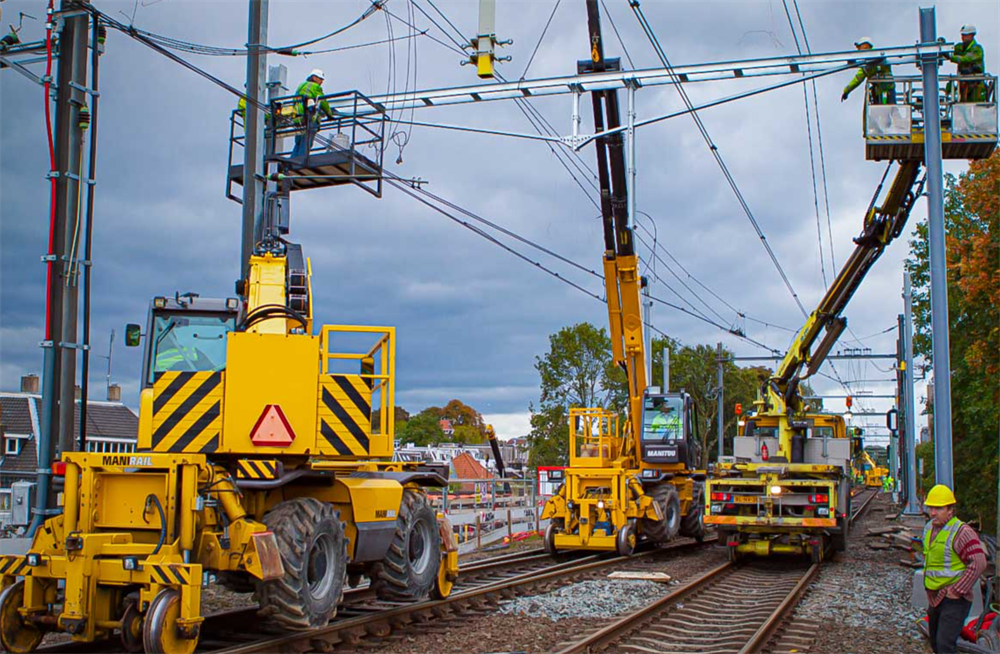

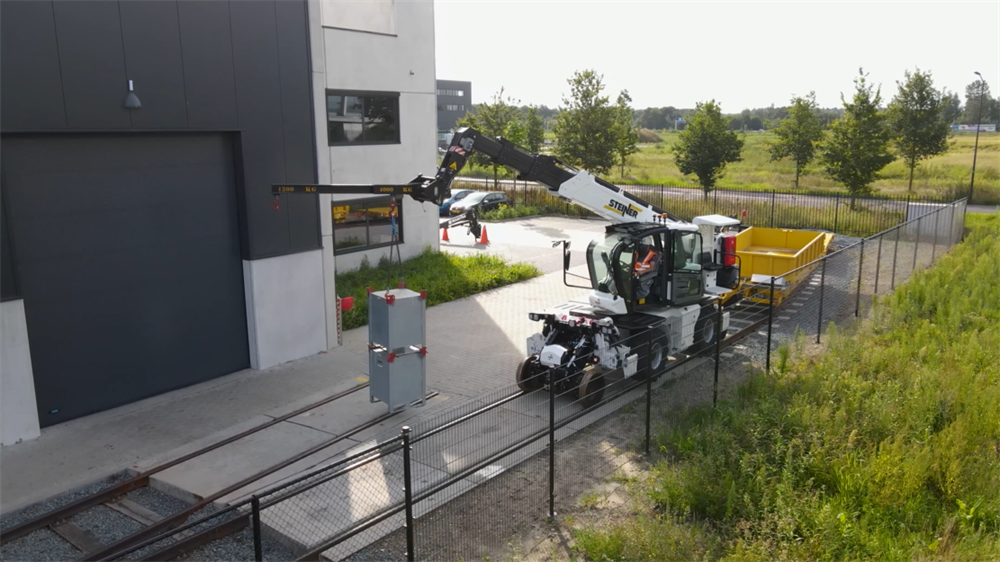

This multifunctional, 360-degree rotating telescopic machine combines the capabilities of a transport vehicle, telehandler, crane, and boom lift into a single unit. Its compact rail conversion ensures a maximum working range, while a comprehensive control system with integrated safety features provides ergonomic and secure operation.
The four-wheel drive system ensures perfect traction during acceleration and deceleration on the track. The machine is designed to operate on slopes of up to 60 per mille. Additionally, the rail conversion features a leveling adjustment device, allowing for safe operations even on tracks with significant cant.

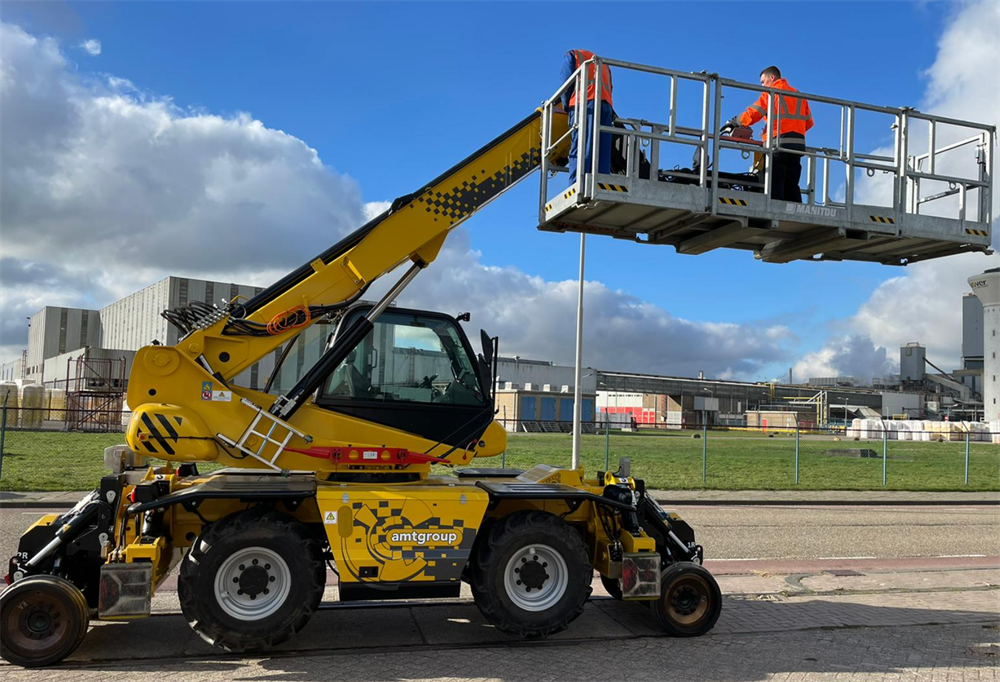

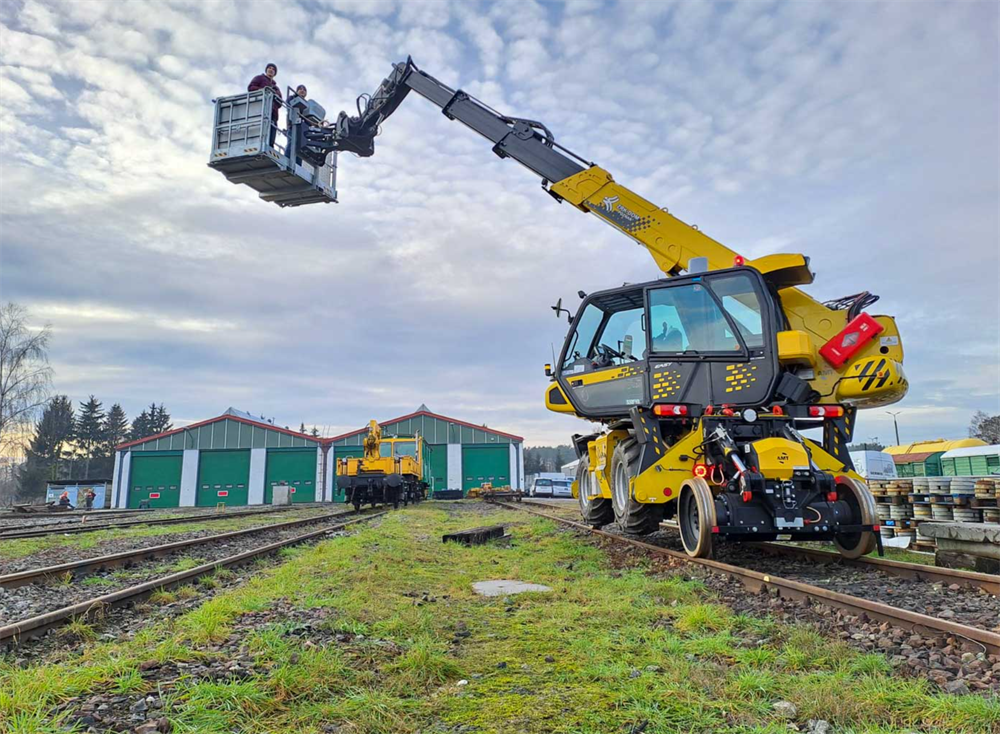

The RAIL TELEHANDLER supports various working platforms and comes with integrated, adjustable height and slew limiters. By utilizing the original RCI system, the machine remains compatible with other original Manitou attachments for future integration. Controls are easily toggled between the cab and the work platform; from the basket, the machine can be driven at 10 km/h, while speed during active operations is limited to 5 km/h.
Equipped with an internet module, the machine can be accessed remotely from anywhere for service, diagnostics, and status reports.
Benefits for your operation
- Multifunctional: transport, telescopic handler, crane, and boom lift in one machine
- Safe operation on slopes and tracks with elevated rails
- Compatible with multiple platforms and accessories
- Easy switching between cab and work platform
- Remote access for service and monitoring
Technical Specifications:
-
Max track speed: 19 km/h
-
Max road speed: 30 km/h
-
Working speed: 1–2 km/h
-
Lifting height: 14 / 16 / 18 m
-
Track gauge: 1435 mm / 1485 mm
-
Track wheels: 640 mm A-C-S1002-MIX
-
Empty weight: 20 t
-
Max weight: 24 t
-
Trailer load: 25 t
-
Brakes: Hydraulic or air
-
Lifting capacity: 4,500 kg
-
Profile of free space: G1–G2
-
Max steepness: 6% (working mode)
-
Max cant (transport): 8° / 200 mm
-
Max cant (working mode): 8°
-
Max cant (work and transport): 8°
-
Max wind speed: 12.5 m/s
-
Number of persons: 2 (cabin)
-
Type approval: EN 15746 1-2 & NEN-EN 280
