Aluminium Bonds

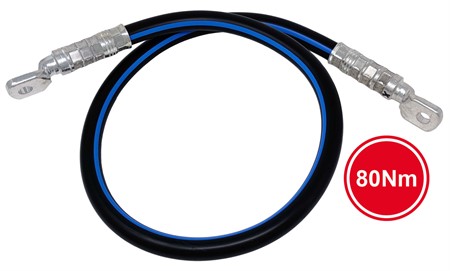

STAR Bond

Superior Torque Aluminium Rail Bond


Brochure

Safetrack special range of aluminium grounding rail bonds and connectors are designed with a unique high torque aluminium cable lug that allows a torque moment of 80Nm.
This is 60% higher torque than standard aluminium cable lugs and therefore withstands the vibrations in the rail on a much higher level.

The Star Bonds are made of a flexible railway grounding cable that also can be used as grounding connection resistant to short-circuit current, for potential equalisation between rails and other conductive parts not under voltage.

Especially suitable where high flexibility and a low bending radius are required.

Factory made rail bonds and connectors available in any lengths.

STAR Bonds consists of:

Aluminium High Torque Terminals:

  • Tin plated surface to assure a good corrosion resistance
  • Two stud holes available; M12 and M16
  • Torque moment tested at 80 Nm ensuring a perfect installation even with high vibration levels.
  • Short circuit current (75 mm² = 25 kA 100 ms) (110 mm² = 40 kA 100 ms)

BayEnergy® Theft Defence Cables:

  • Light weight - Aluminium
  • Simple handling
  • Optical marking of the cable by 2 blue strips
  • UV-resistant
  • Halogen-free
  • Available in the following versions:
    - Aluminium
    - Aluminium with steel wire
    - in 75, 100 and 110 mm²
