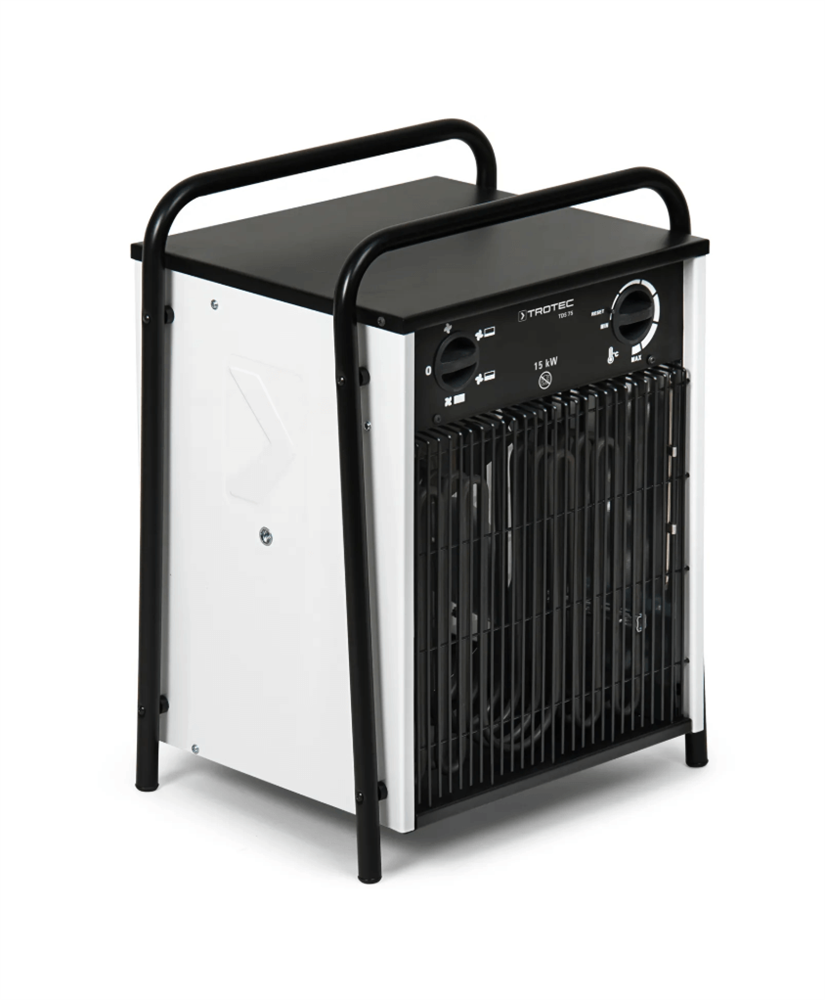

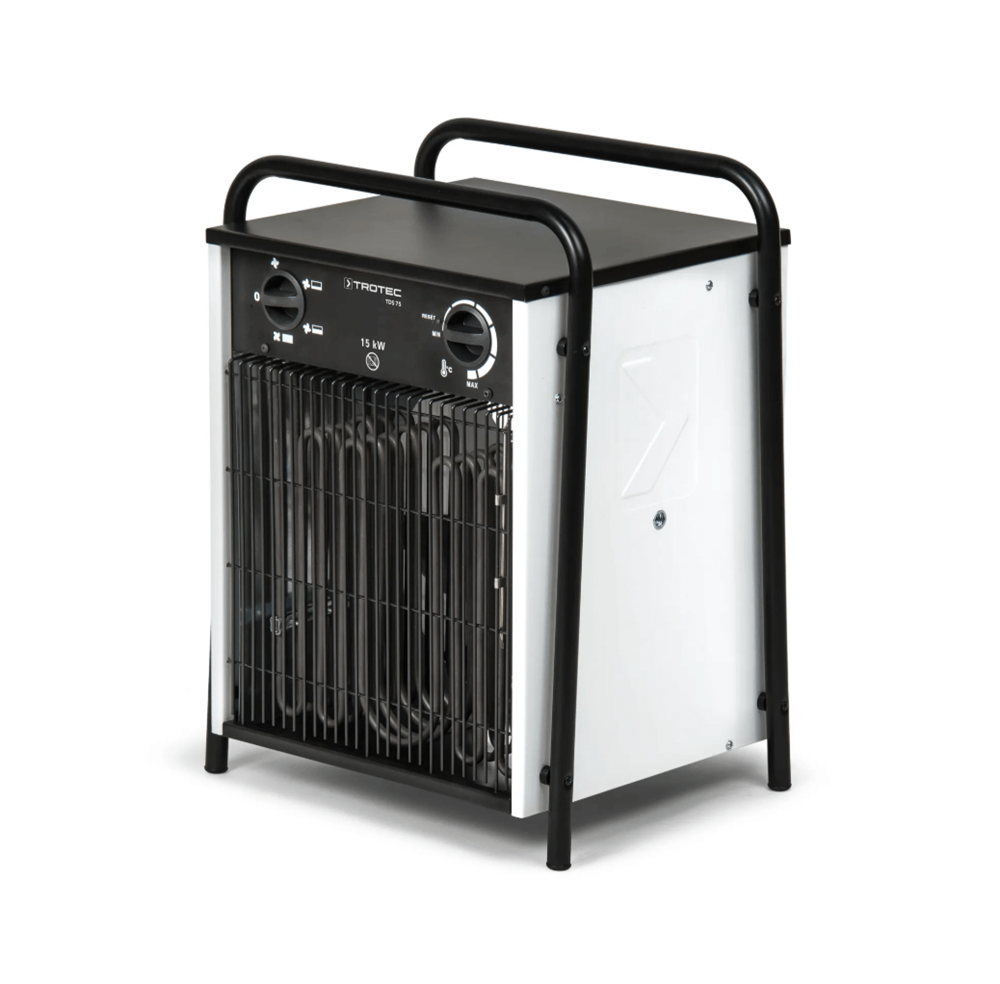

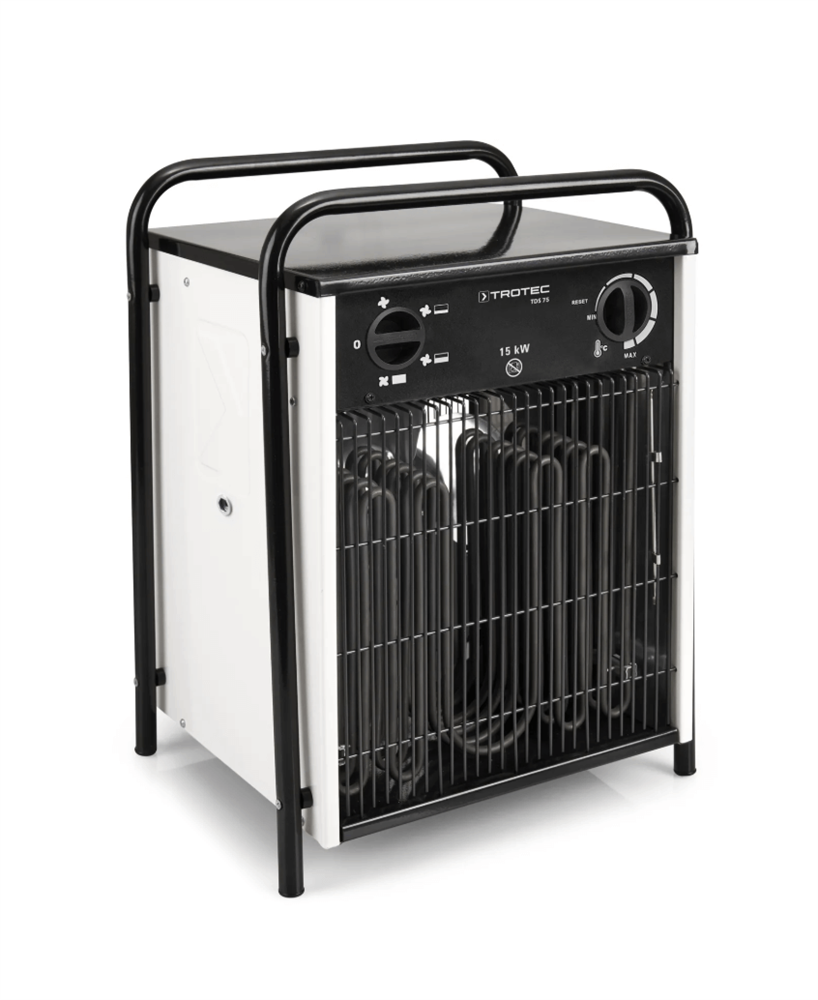

The TROTEC TDS 75 is a true powerhouse among electric fan heaters and is ideally suited for heating large volumes in construction, industrial, and other demanding working environments. With high heating capacity and robust construction, the TDS 75 delivers fast, efficient, and reliable heat even under tough conditions.
With an air flow rate of 1,293 m³/h and a heating capacity of up to 15 kW, the heater ensures powerful and even heat distribution. The integrated air guide plate directs the hot air optimally, maximizing efficiency and improving overall heat output.

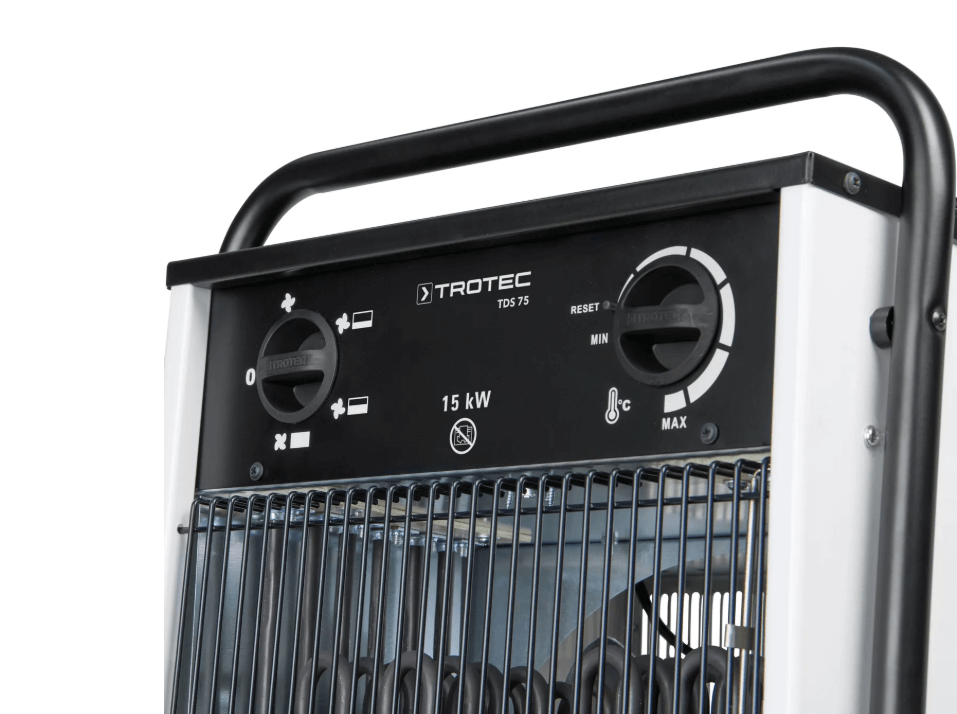

The TDS 75 is equipped with a continuously adjustable thermostat, allowing precise temperature control. Heating output can be regulated in multiple stages to match current requirements. For enhanced safety and operational reliability, the heater features overheating protection, thermal motor protection, and an automatic restart function.

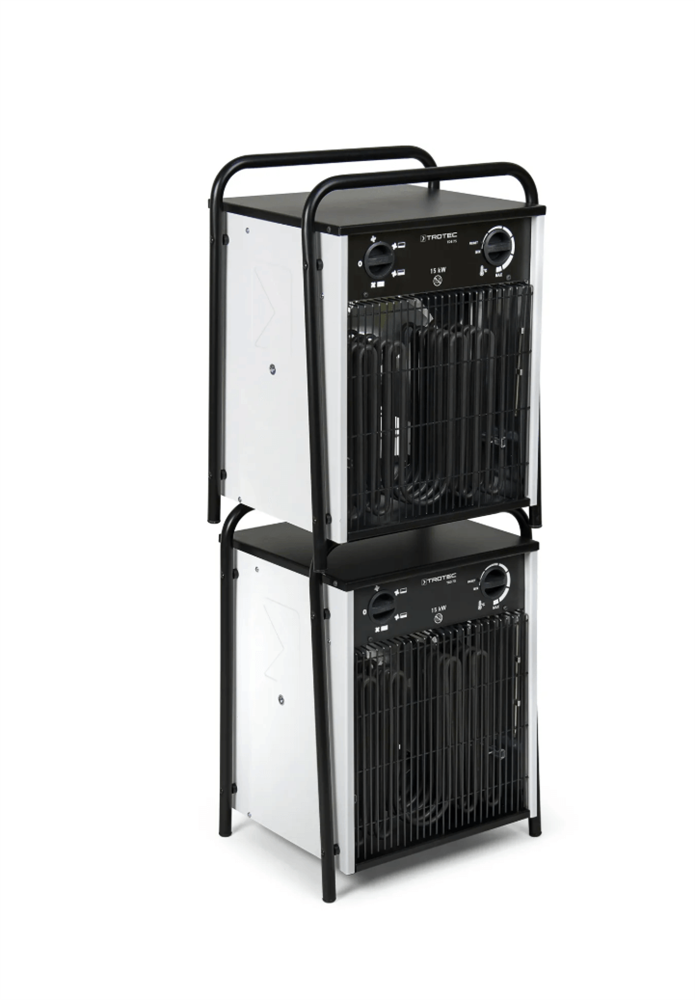

The trapezoid-shaped carrying handles allow the unit to be stacked securely up to three units. In addition, side-mounted threaded fittings enable wall or ceiling mounting, providing flexible installation options for a wide range of applications.
Technical Specifications
Performance
- Air flow rate: 1,293 m³/h
- Maximum heating capacity: 15 kW
- Maximum temperature increase: 90.5 °C
- Sound pressure level at 1 m: 60 dB(A)
Heating Levels
- Level 1: Fan only
- Level 2: 5 kW
- Level 3: 10 kW
- Level 4: 15 kW
Electrical Data
- Power supply: 400 V / 50 Hz
- Power consumption: 15 kW
- Nominal current consumption: 21.7 A
- Recommended fuse: 32 A
Heating & Fan
- Heating element: Stainless steel heating coil
- Fan type: Axial
- Fan speeds: 1
Safety & Functions
- Continuously adjustable thermostat
- Automatic restart function
- Fan delay function
- Tip-over protection

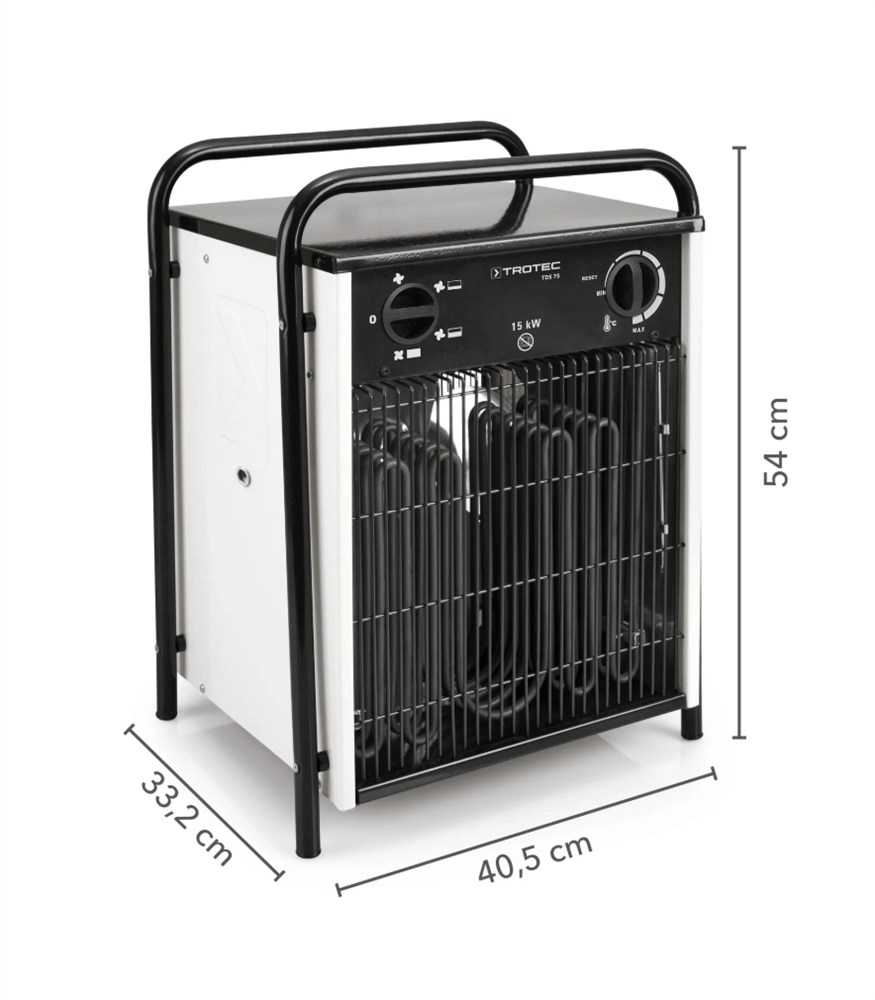

Dimensions & Weight
- Length (without packaging): 332 mm
- Width (without packaging): 405 mm
- Height (without packaging): 540 mm
- Weight (without packaging): 15 kg
- Weight (including packaging): 16 kg
Additional Information
- Housing: Metal
- Stackable: up to 3 units
- Mounting options: Floor, wall, or ceiling
