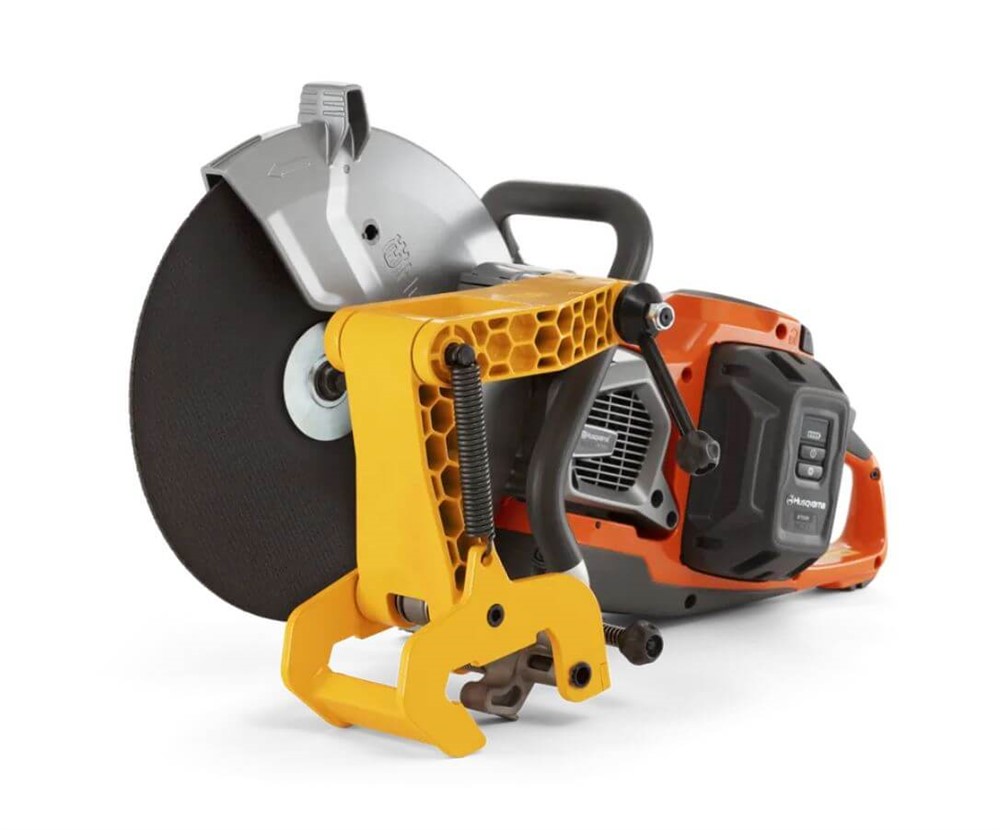

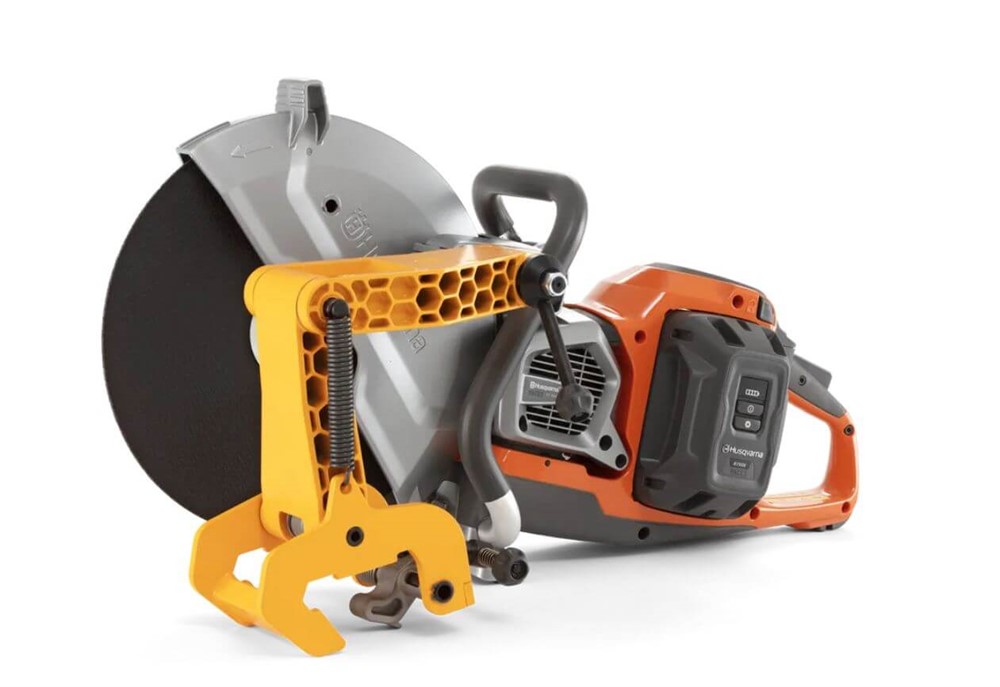

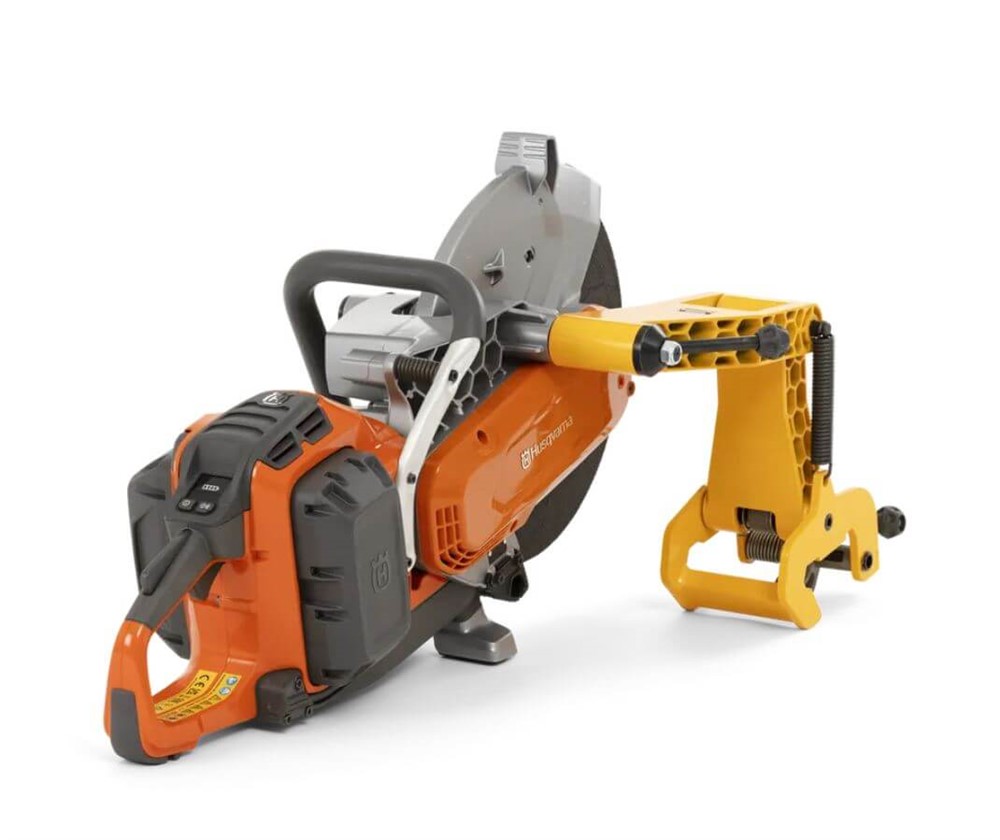

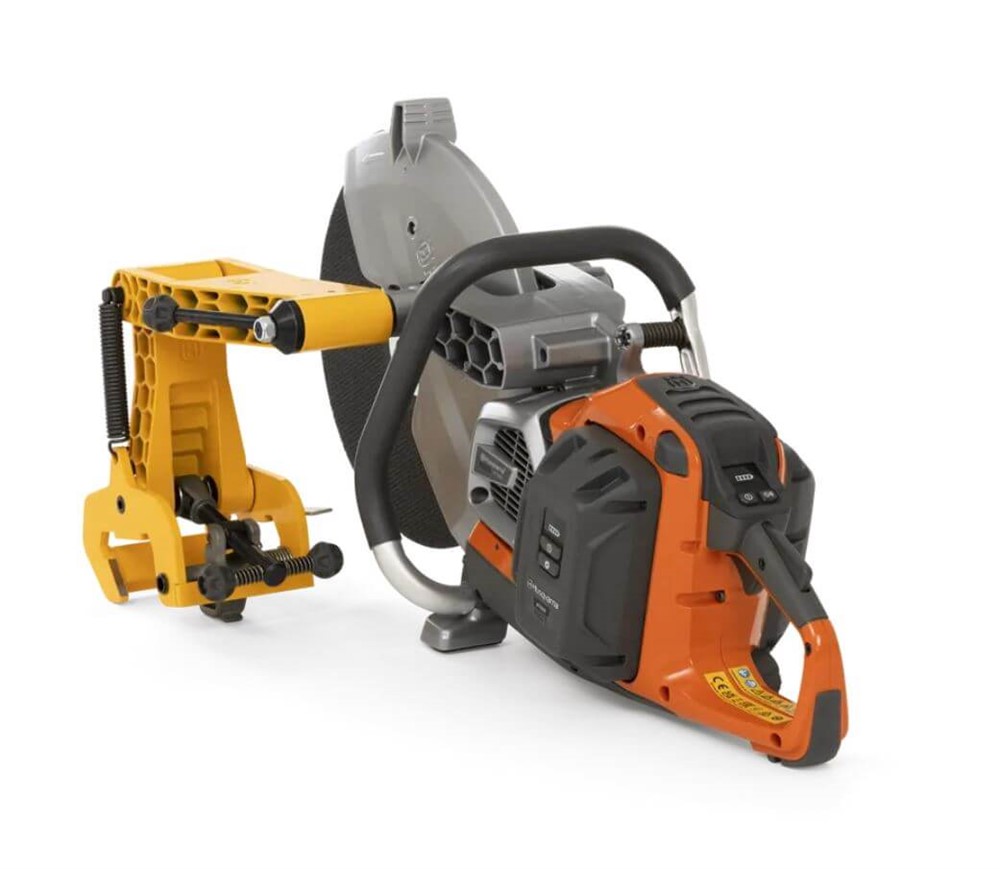

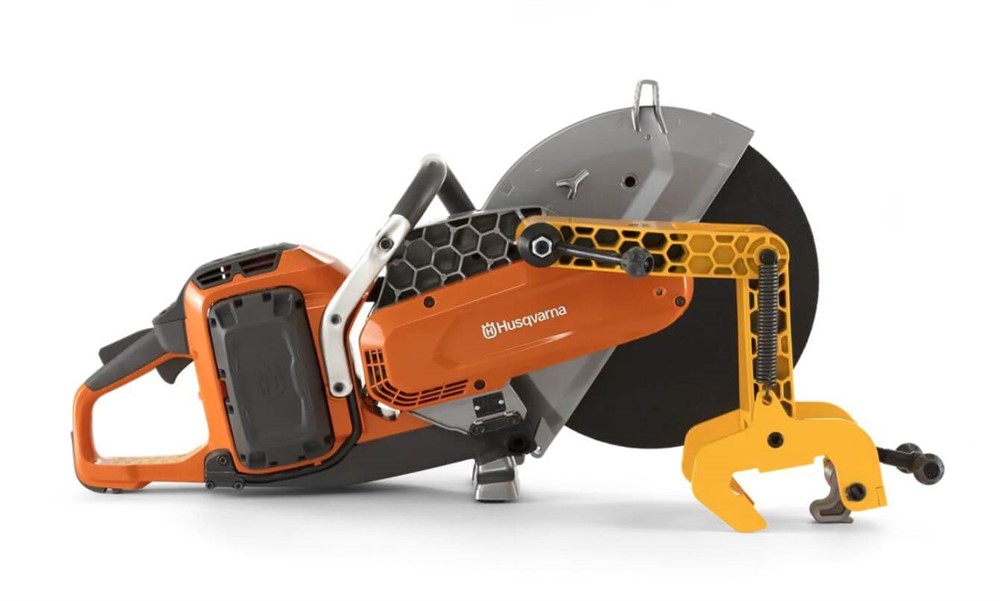

K 1 PACE Rail - Battery Powered Rail Cutting Machine
To efficiently cut rail tracks, power, precision, and speed are essential.
K 1 PACE Rail delivers all this and more by combining efficiency and a powerful motor with advanced technology – all while providing the convenience of battery operation.
The X-Halt™ braking function ensures reliable operation, while the excellent power-to-weight ratio guarantees optimal balance.
K 1 PACE Rail is specifically designed for work on railways, tram tracks, and subway systems. It cuts quickly and precisely, the accessory is easily mounted on the rail, and the dual mounts allow cutting from all angles.
- High performance
- More freedom
- Perfect right-angle cuts
- No carbon dioxide emissions during use
- Work faster
- Convenient batteries
- User-friendliness
- Part of the PACE battery system
- Safe use
Maximum cutting depth: 133 mm
Max. Blade diameter: 356 mm
Technical specification:
| ENGINE |
|
| Power source |
Battery |
| Battery eco system |
PACE |
| CUTTING EQUIPMENT |
|
| Cutting depth, max |
133 mm |
| Blade diameter, max |
356 mm |
| Arbor diameter |
25.4 mm |
| Blade thickness, max |
4 mm |
| Peripheral speed, max |
59 m/s |
| Coolant |
Wet /dry |
| Rail type |
Vignole rails |
| Clamp switch |
Yes |
| DIMENSIONS |
|
| Head width, max |
85 mm |
| Product size length |
656 mm |
| Product size width |
233 mm |
| Product size height |
423 mm |
| Weight (complete product w/o side packed articles) |
8.6 kg |
| SOUND AND NOISE |
|
| Sound pressure level at operators ear |
101 dB(A) |
| VIBRATIONS |
|
| Vibrations left/front handle |
2.8 m/s² |
| Vibrations right/rear handle |
1.7 m/s² |
