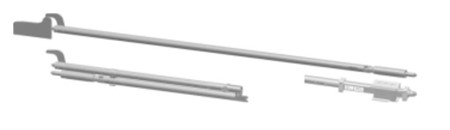

Measuring device for the clearance of the inner rim faces
- Determining the clearance a1 (AR) between the inner surfaces of the wheels in a wheelset
- On installed and removed wheelsets
- Outer diameter of flange as a potential surface for locating the measuring device
Design:
Measuring device with analogue display:
- Distance between the measuring plane and the outer diameter of flange 0 to 40 mm
- Measuring range clearance between inner rim faces a1 (AR) 1,354 to 1,366 mm
Measuring device with digital display:
- Distance between the measuring plane and the outer diameter of flange 0 to 33 mm
- Measuring range clearance between inner rim faces a1 (AR) 1,350 to 1,370 mm
- Transport Open or folding
Ordering instructions:
- The requested design and the measuring range should be declared additional.
