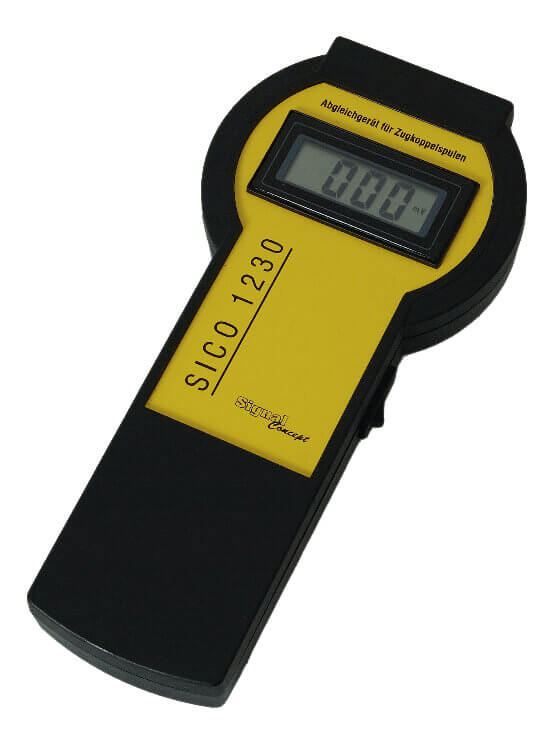

Adjuster for Train Coupling Coils SICO 1230
Voltage meter for the adjustment of ZUB-vehicle coupling coils
Measuring area: 0…250 mV
Technology
-The SICO 1230 adjuster for train coupling coils is suitable for voltage measurements to adjust ZUB-vehicle coupling coils in the frequency range of 50 … 100 kHz
-The device is particularly suited to the adjustment of vehicle coupling coils with a carrier frequency of 100 kHz and the 50 kHz circuit of the ZUB 100 and ZUB 200 systems, for example:
- ZUB 110 / 111
- ZUB 121 / 122 / 123
- ZUB 212 / 222 / 232 / 262GNT
- Rapid and reliable measurement with LCD display
- Compact for mobile operation
- Simple handling

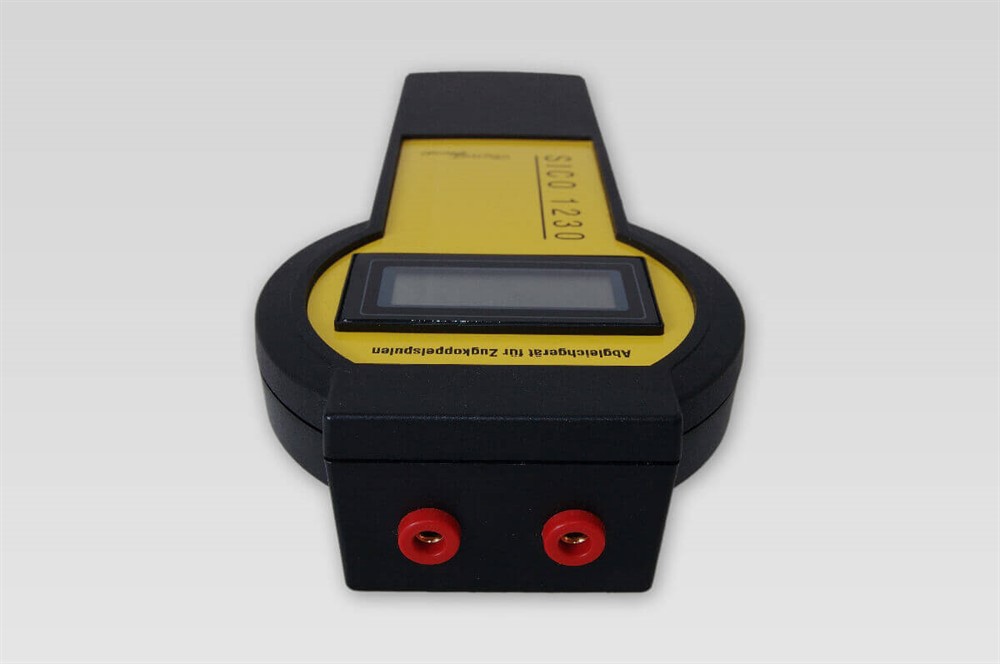

- Measuring object can be connected via two 4mm sockets to the SICO 1230
Data
Input voltage: 0 … 250 mV
Measurement error: ± 2% of rated range value
Input resistance: 1 kOhm
Frequency range of input voltage: 50 … 100 kHz
Display: LCD, 31/2 figures
Power supply: block accumulator 9V or battery
Weight: approx. 200g
Operating temperature range: 0°C … 50°C
IP code: IP40
Protection class: II
Dimensions in mm: 200 x 58/82 x 40
Delivery
- Adjuster SICO 1230 - Tool bag - 1 Rechargeable battery 9V
- 2 Measuring lines 2mm to 4mm, type AK2-F74-B
- Protector (protective casing)
- Manual
- Acceptance test certificate 3.1 according BS EN 10204
