SafeCheck RG-1. Digital 1435mm

Part No 97260100
Weight (kg) 3
E-mail for price
SEK
To order
Product question

What would you like to know about SafeCheck RG-1. Digital 1435mm?

Send

Description

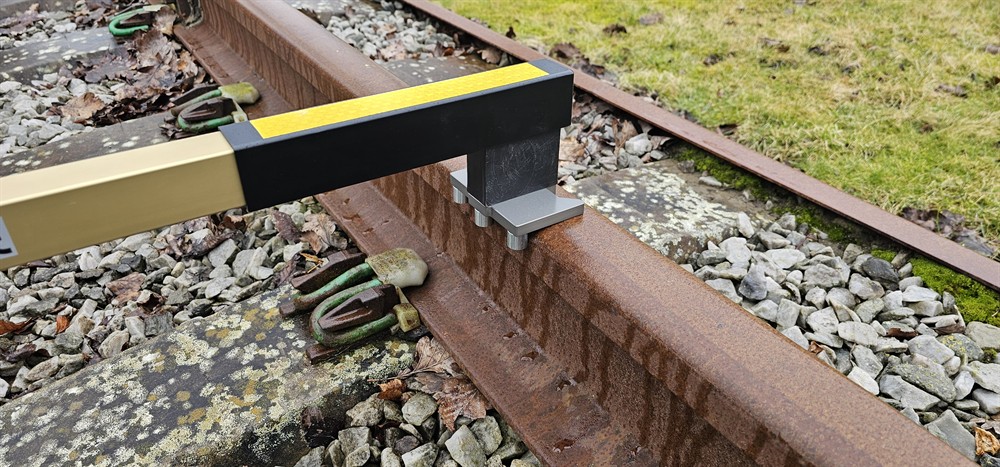

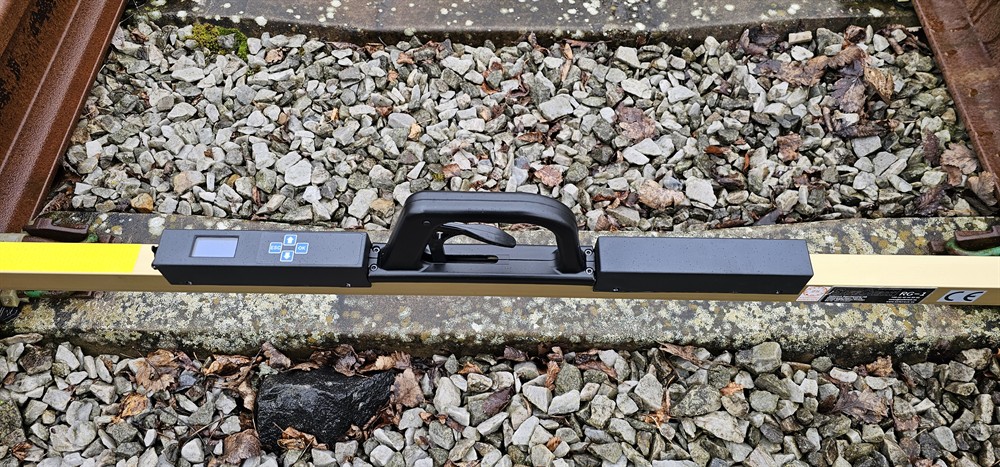

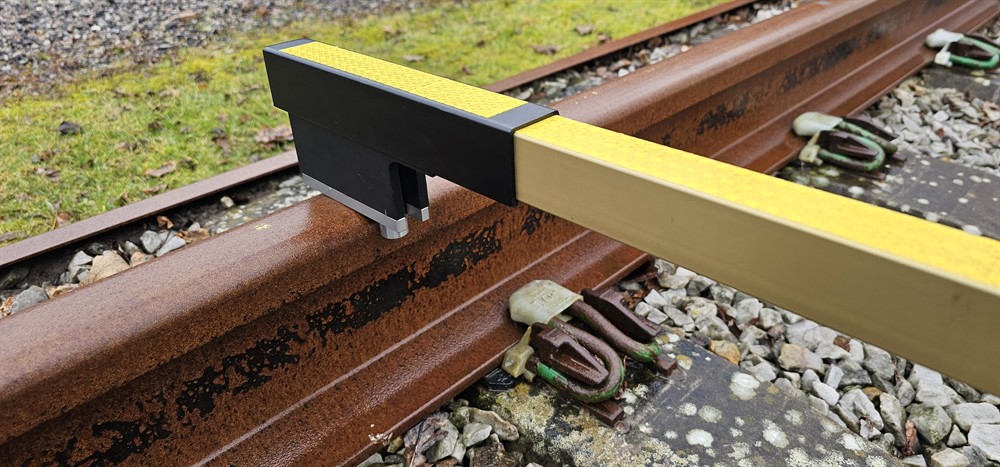

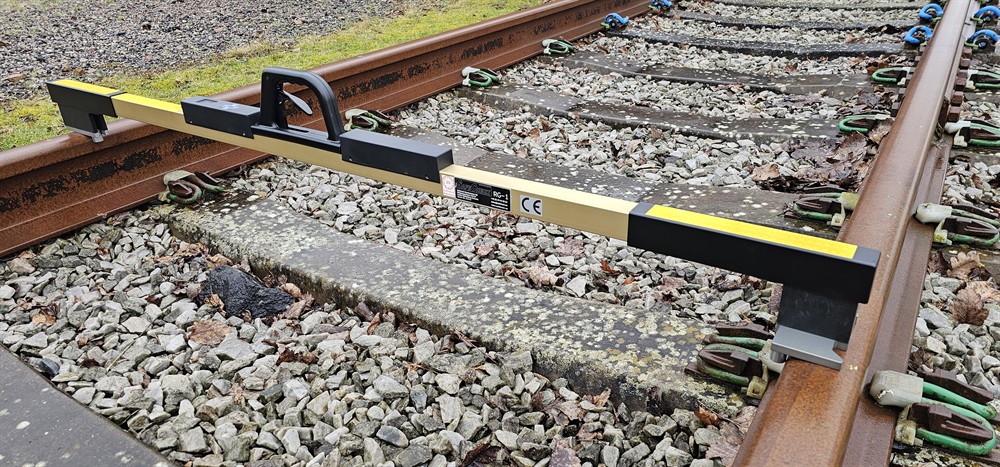

SafeCheck Track Measuring Device RG-1

The digital track gauge RG-1 is mainly used to measure the track gauge, superelevation, check rail gauge, back to back distance and flangeway clearance.

Fast measurement

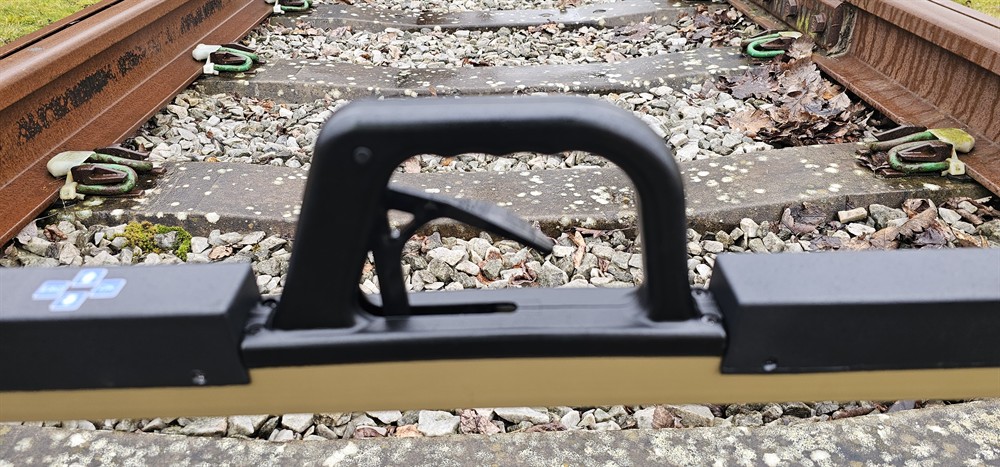

The track gauge is easy to use and measurement is very fast thanks to the unique grip handle.

Excellent display

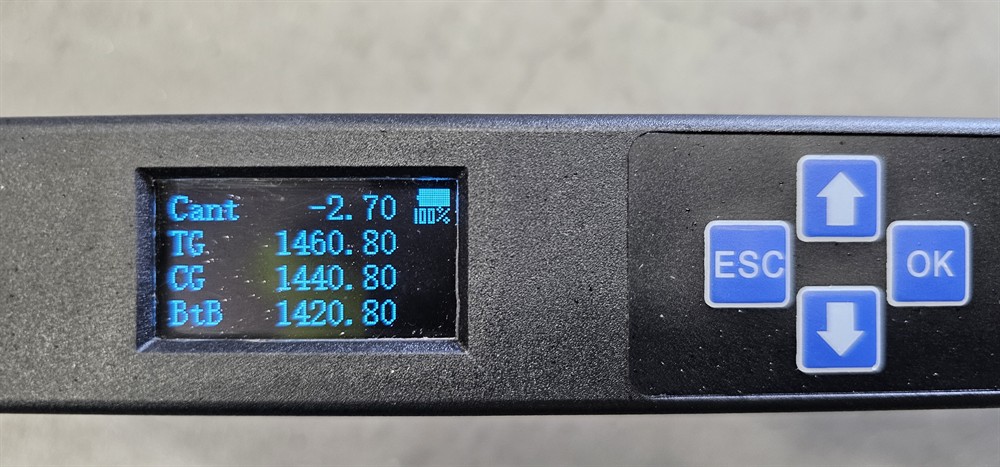

SafeCheck RG-1 can be used both day and night time thanks to its excellent illuminated display and is ideal for railway engineers.

Withstands moisture
Weatherproof encapsulation to prevent problems regardless of weather conditions.

Technical data

RG-1 Scope of use:
1435 mm standard gauge railway with operating speed ≤ 250 km/h

  • Track gauge: 1410 - 1470 mm
  • Check rail gauge: 1381 - 1401 mm
  • Back-to-back: 1338 - 1358 mm
  • Superelevation: -185 - +185 mm
  • Display: OLED
  • Power voltage: 3,4 - 5,2 VDC (Rechargeable battery)
  • Temperature range: -30ºC - +55ºC
  • Insulation performance: > 1MΩ
  • Weight: 2,75 Kg
  • Length: <1600 mm

Minimum measurable dimensions:
Superelevation: 0,1 mm
Track gauge: 0,01 mm
