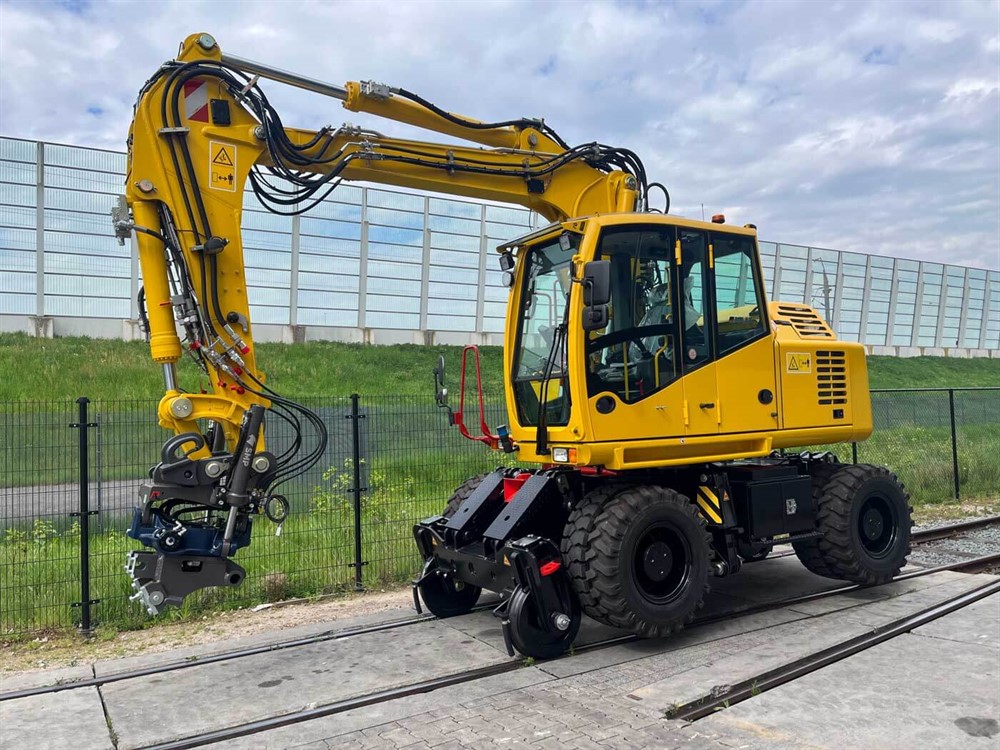

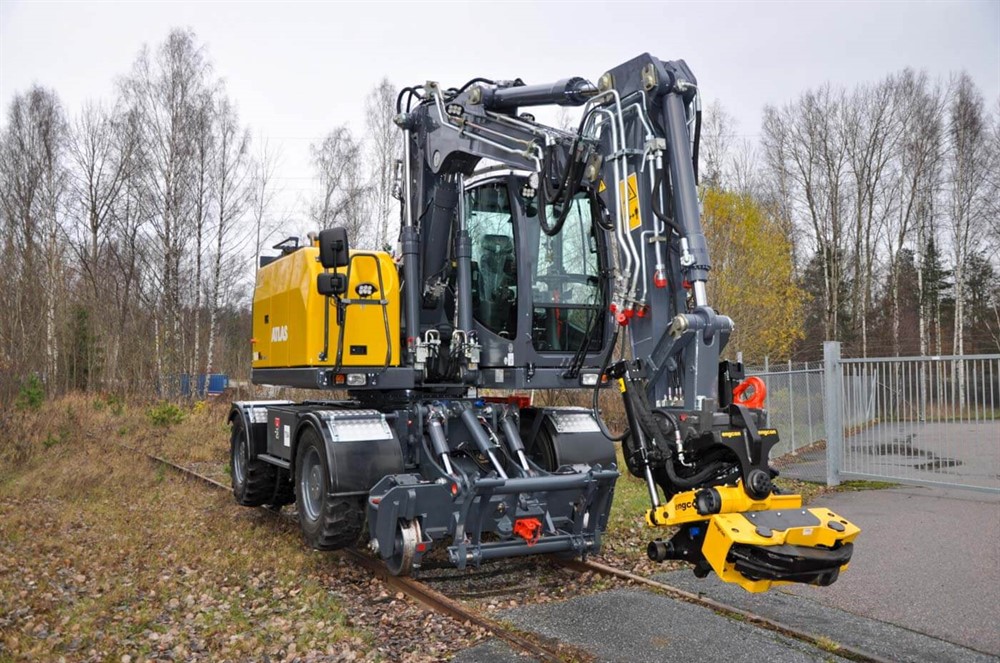

Rail Road Excavator

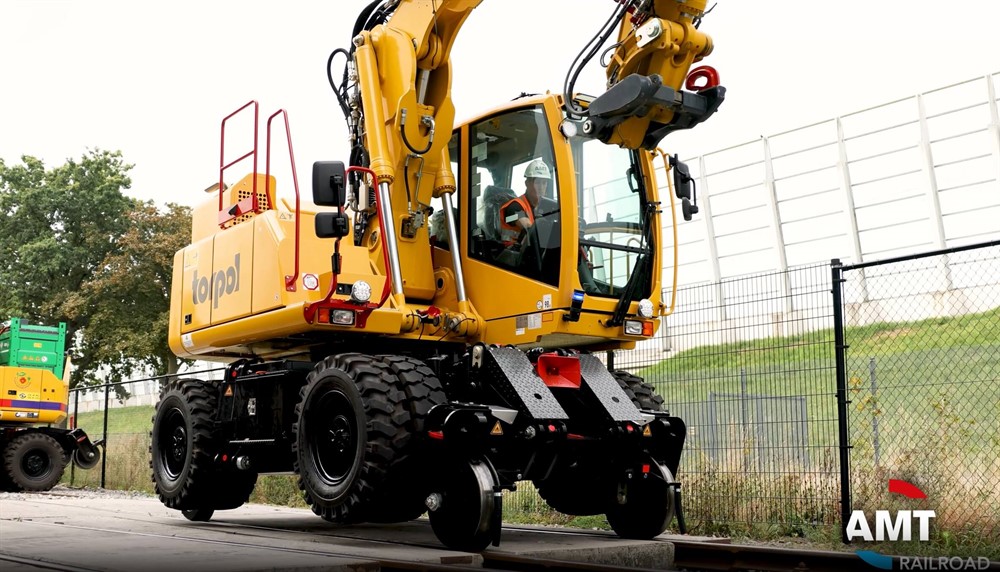

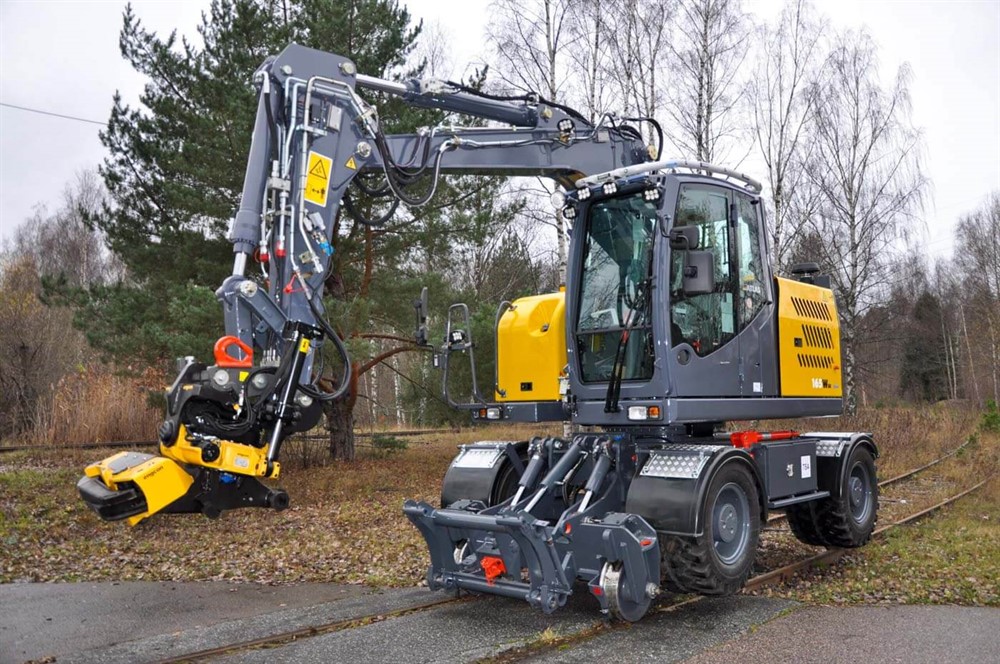

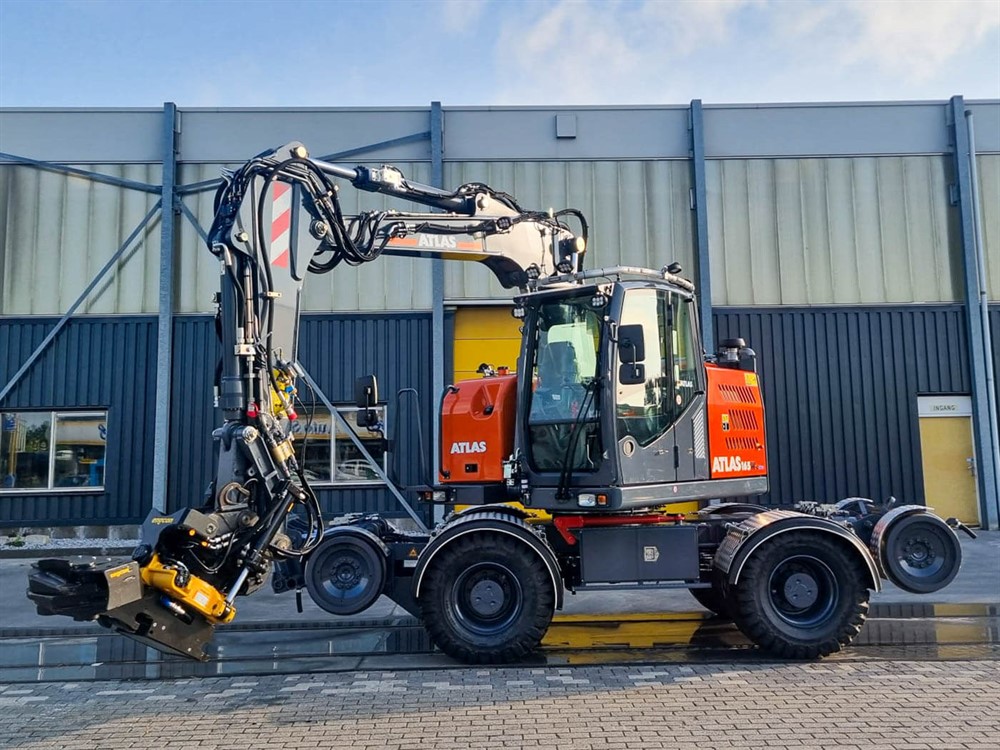

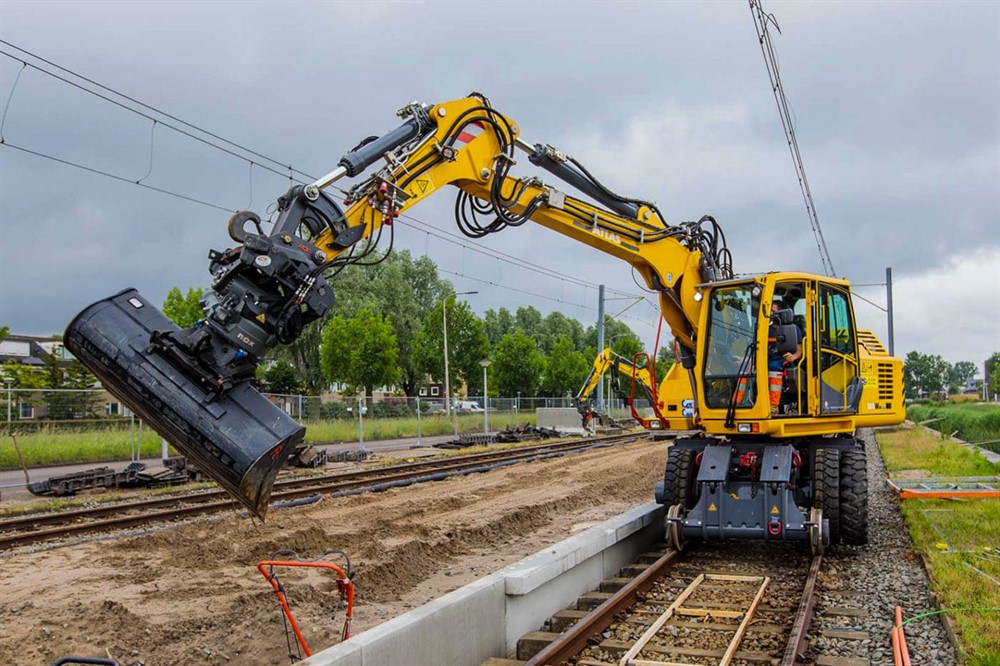

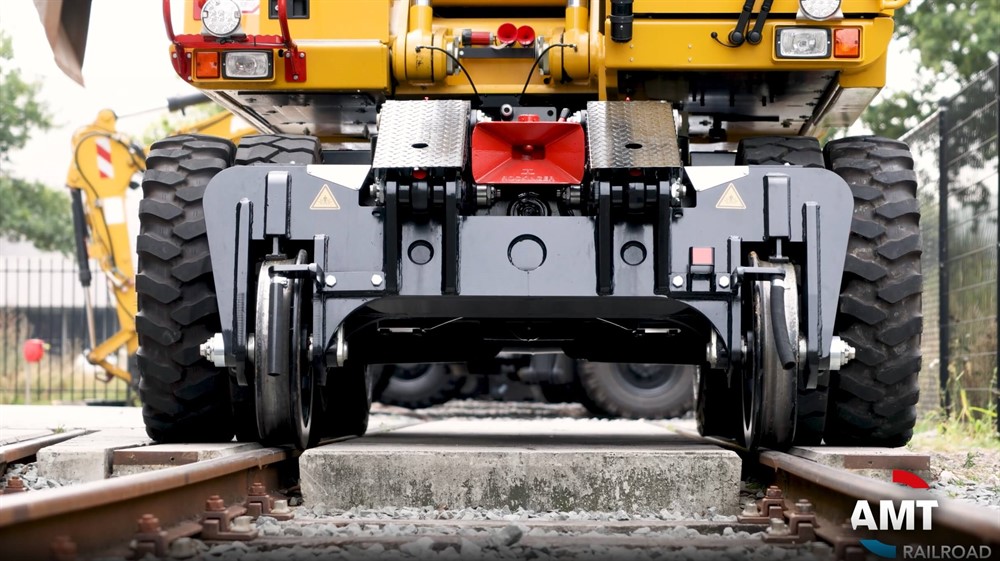

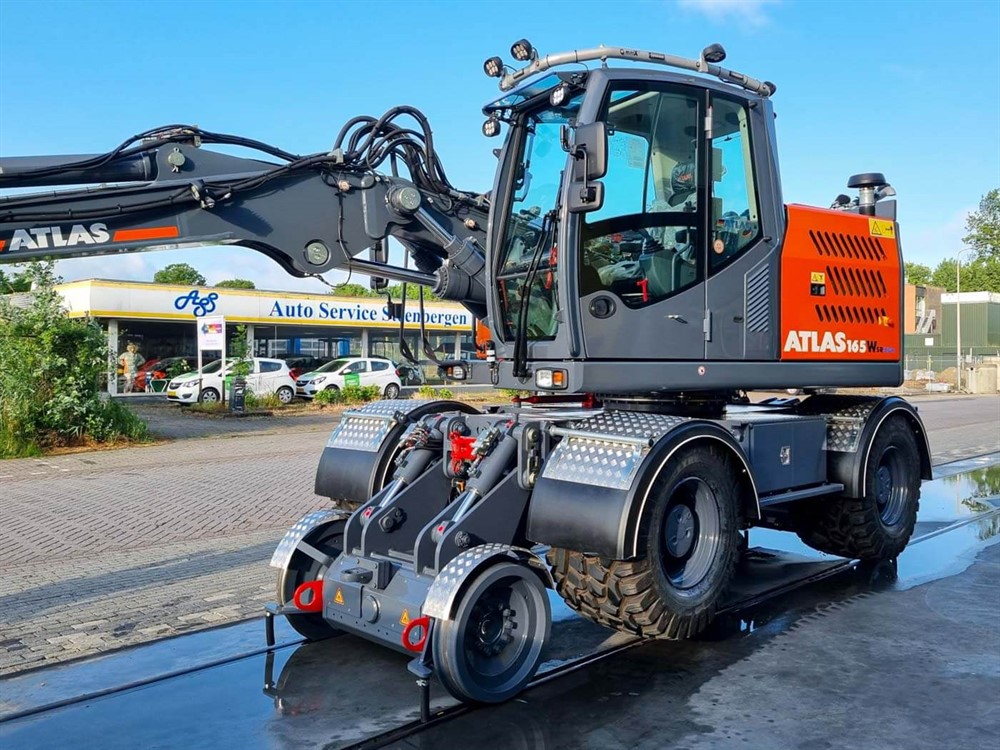

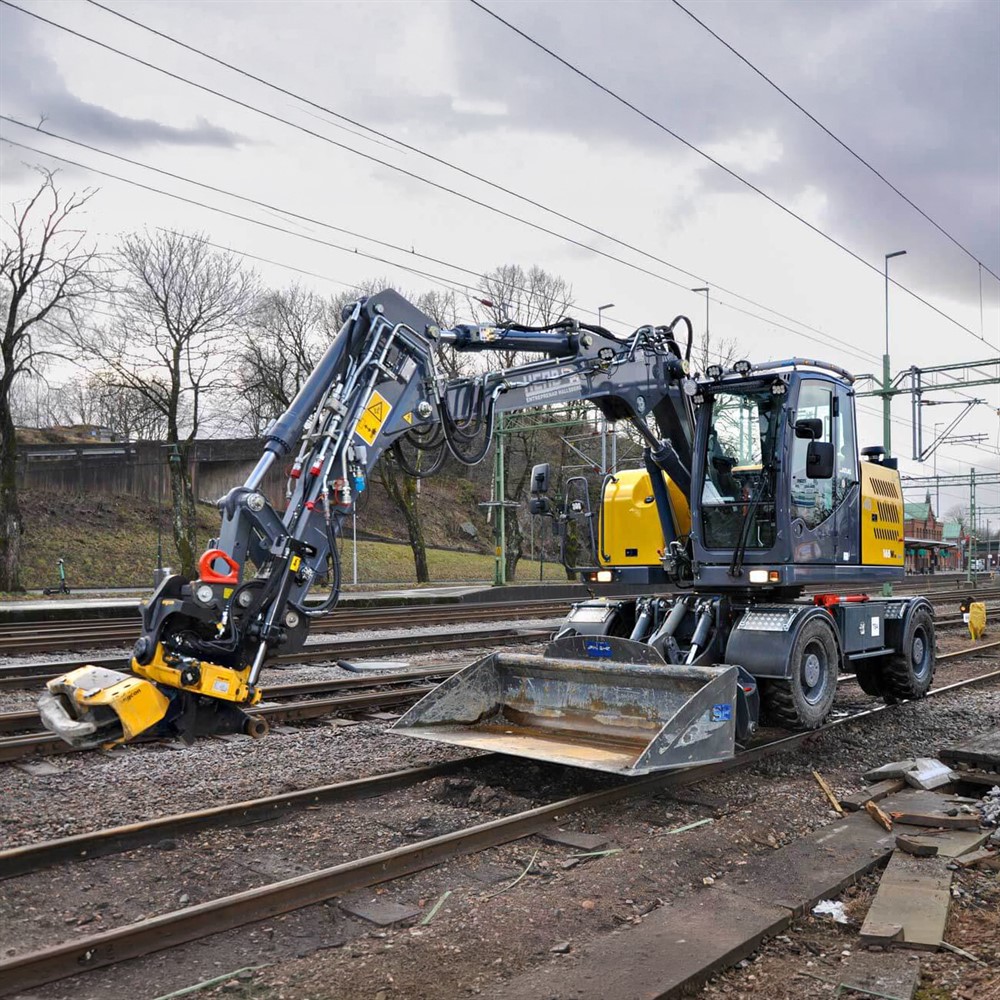

The TW160/165 (20T) and TW180 (22T) rail road excavators are equipped with an exceptionally stable and robust rail gear system, designed for demanding rail infrastructure operations.

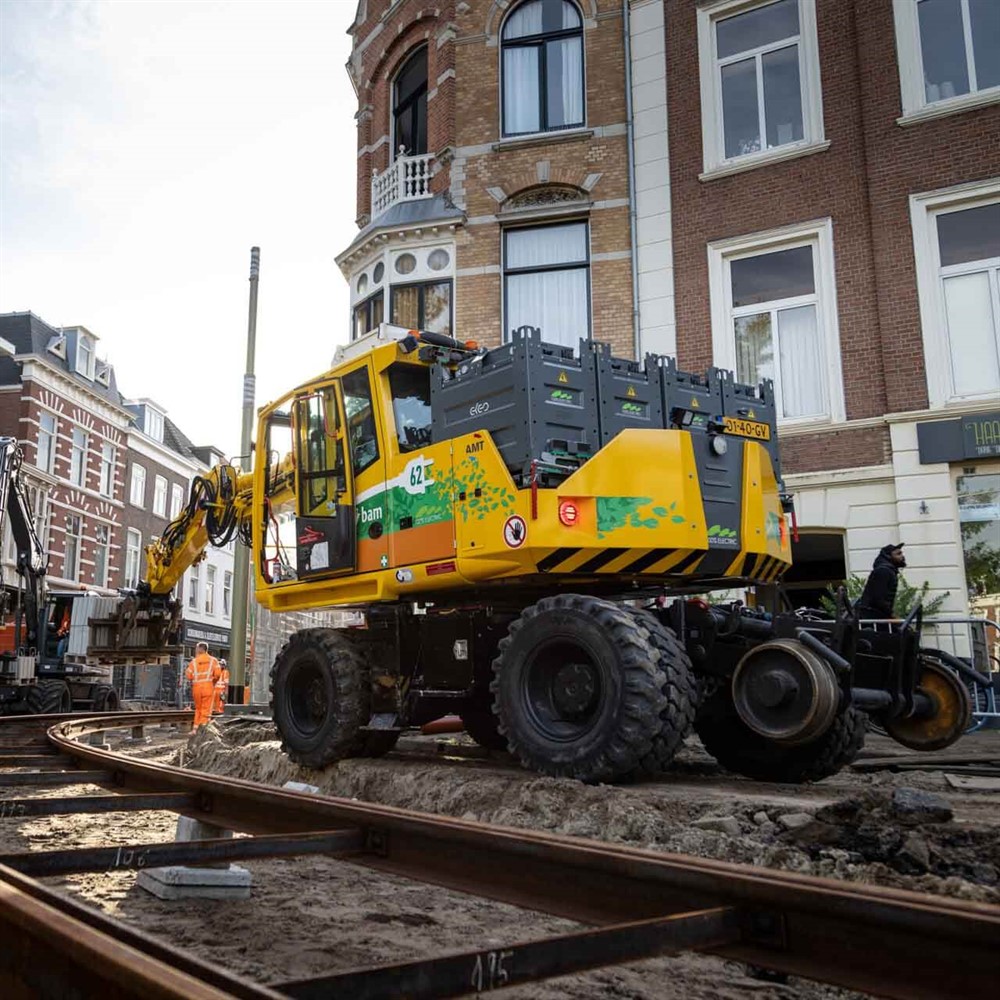

The permanently mounted rail gear can be fitted with an optional quick-change system for meter gauge, standard gauge, and tram tracks, ensuring maximum operational flexibility.
Thanks to their compact design and short counterweight radius, these machines can operate in confined environments while maintaining outstanding stability. The excavators can travel in both high (9B) and low (9C) rail configurations, with optional hydrostatic axles (9A) available.
The front axle features a swing system that can be operated both automatically and manually, ensuring optimal stability under all working conditions.
All rail gear functions — including lifting and lowering — are controlled via a single, intuitive control screen. The display also shows the real-time status of the rail gear, RCI system, and optional camera system.
With the integrated internet module, remote diagnostics, servicing, and software updates can be performed from any location.
The rail gear system is designed and manufactured in accordance with EN 15746, with final assembly compliant with national guidelines such as TCVT, Infrabel, TSA, and BAV.
Our next-generation, field-proven rail solutions ensure high reliability and extended maintenance intervals.
Options
-
Hydraulic drive (9A)
-

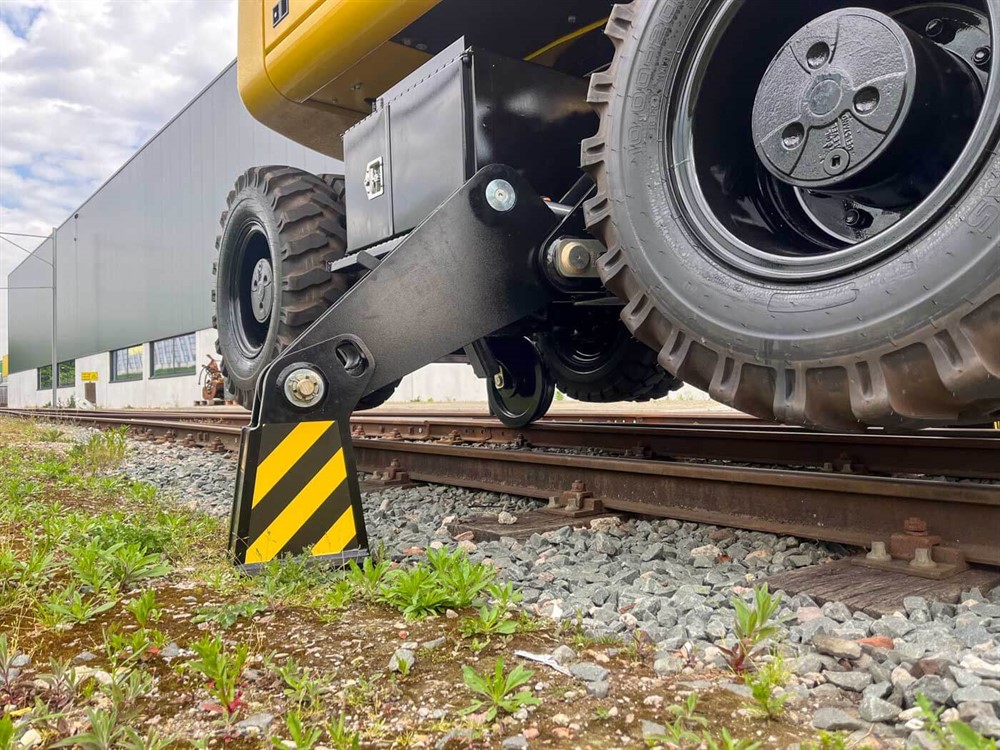

Hydraulic support legs
-
Air or hydraulic trailer braking system
-

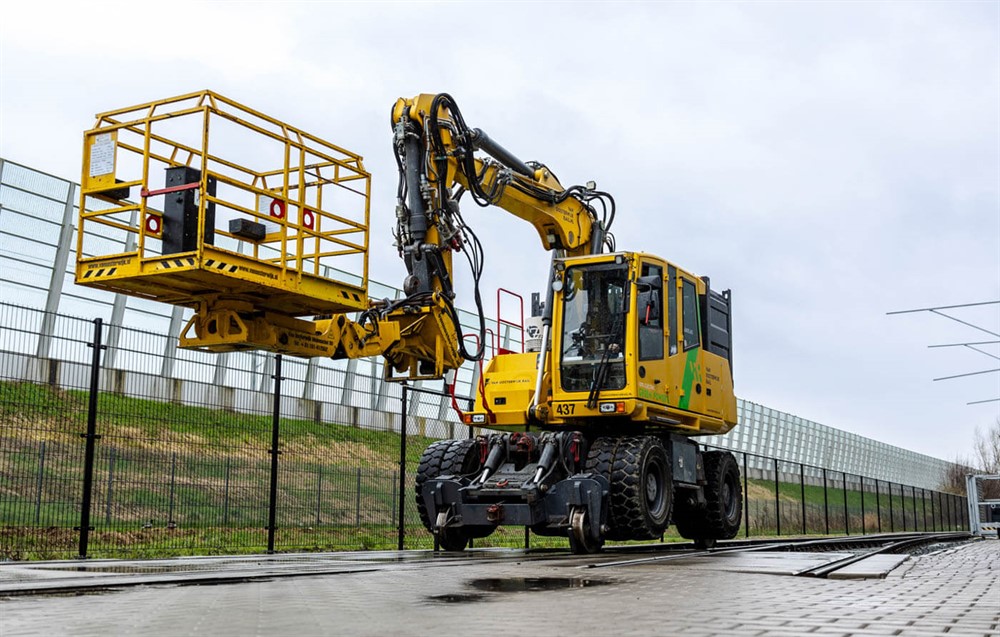

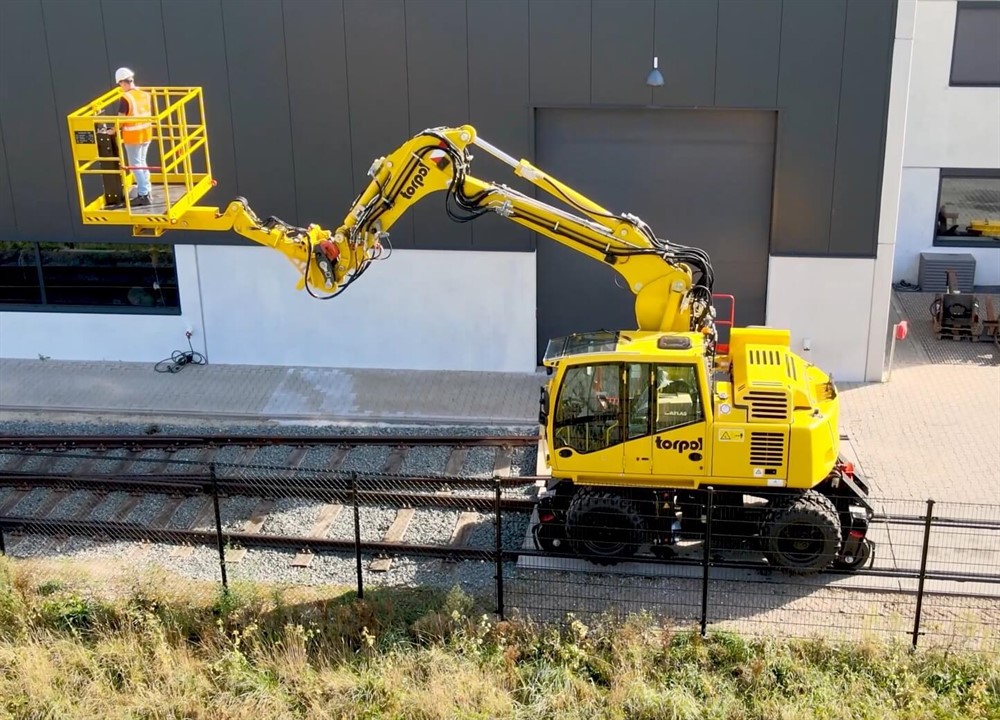

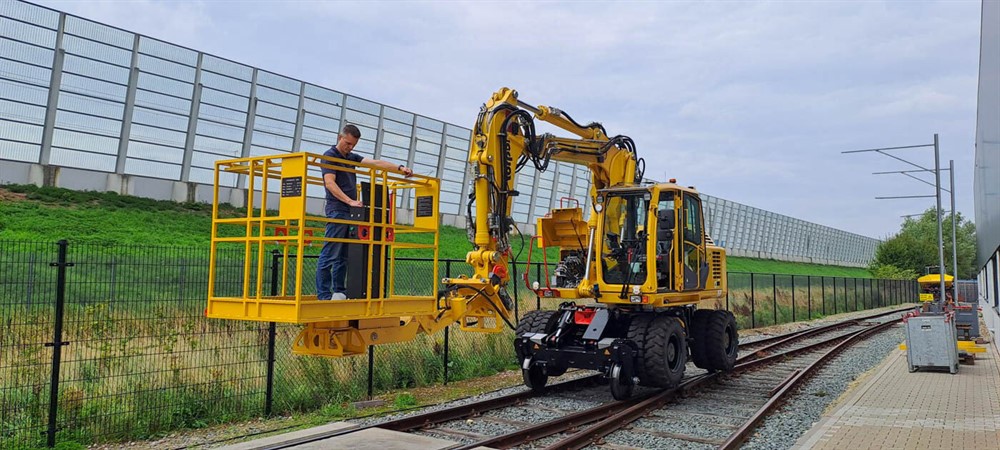

Elevated work platforms
-
Quick-change system for meter gauge, standard gauge, and tram tracks
Technical Specifications
-

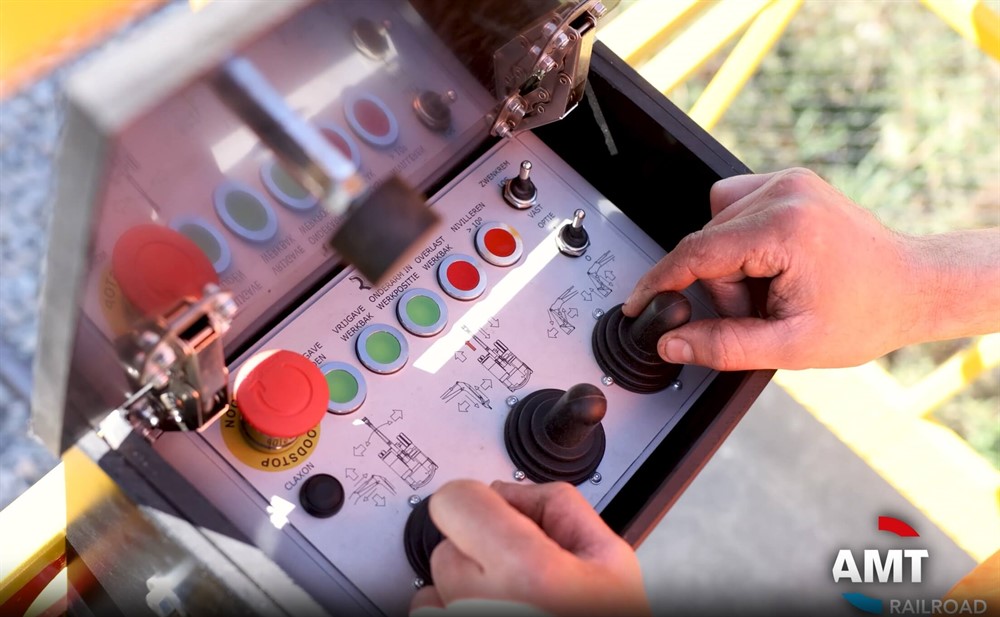

Single integrated control panel for all systems
-
Integrated Load Moment Security system
-
Integrated Height & Swing Security system
-
Short swing radius: 1.57 m – 1.69 m – 2.00 m
-
All cylinders equipped with position monitoring
-
High (9B) and low (9C) rail travel capability
-
Front and rear trailer linkage (Rockinger)
-
Automatic track lighting
-

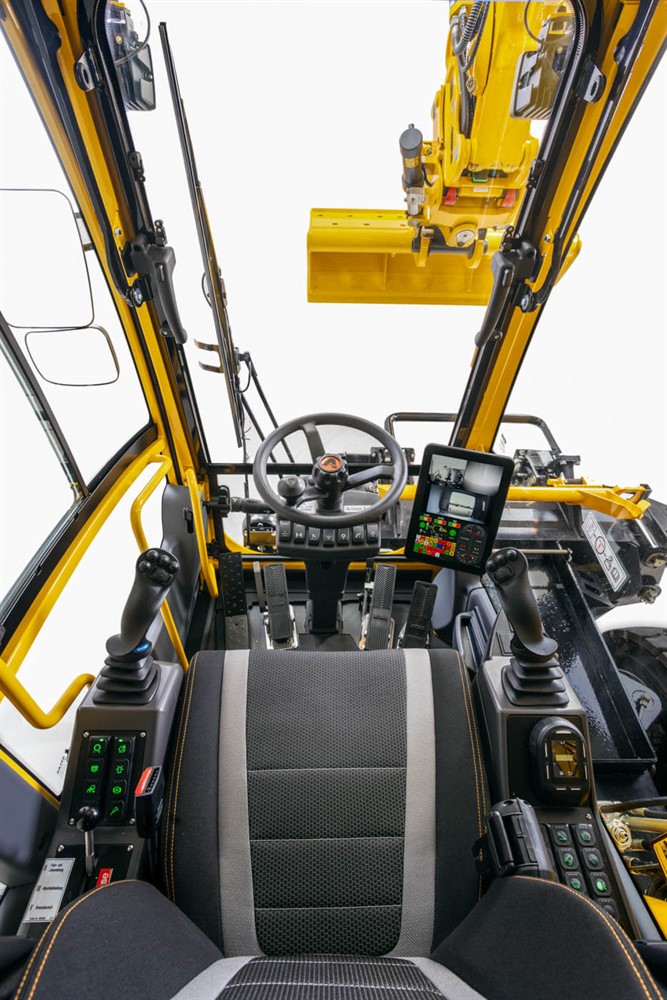

Modern double cab with co-driver seat and emergency controls
-
Comprehensive safety equipment
-
Emergency hand pump for profile release
-
660 Hz air horn and flashing lights
-
Operation up to 60 ‰ gradients and minimum curve radius of 50 meters
