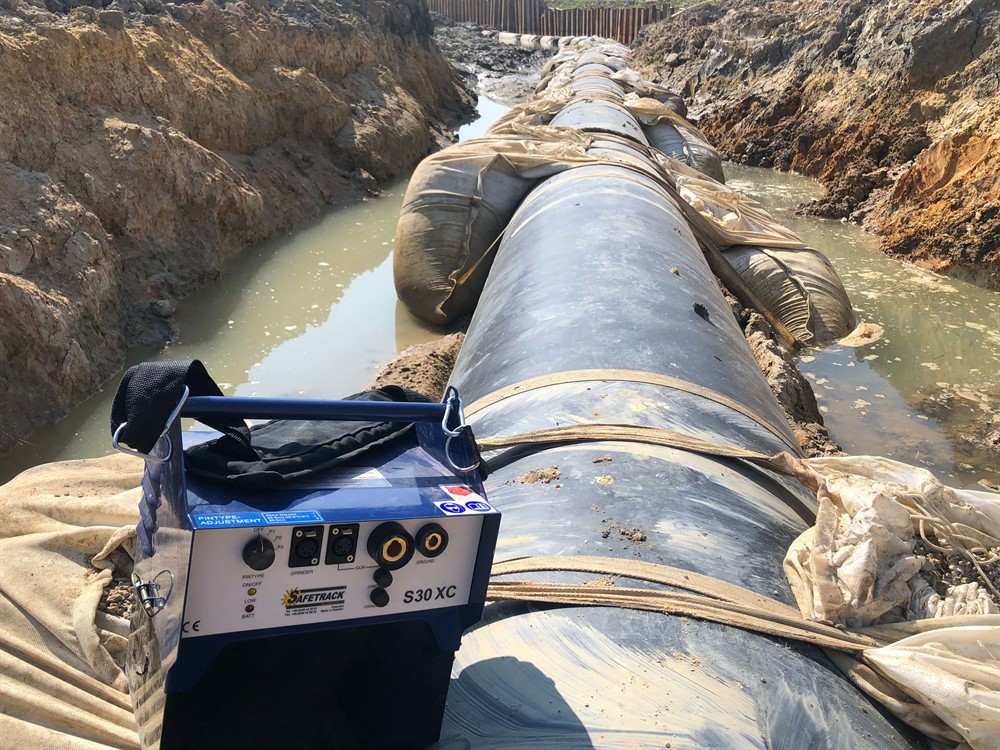

S30 X/C is electronically controlled, driven by 3 pcs of 12 V batteries which is easily exchangeable with a cassette system.

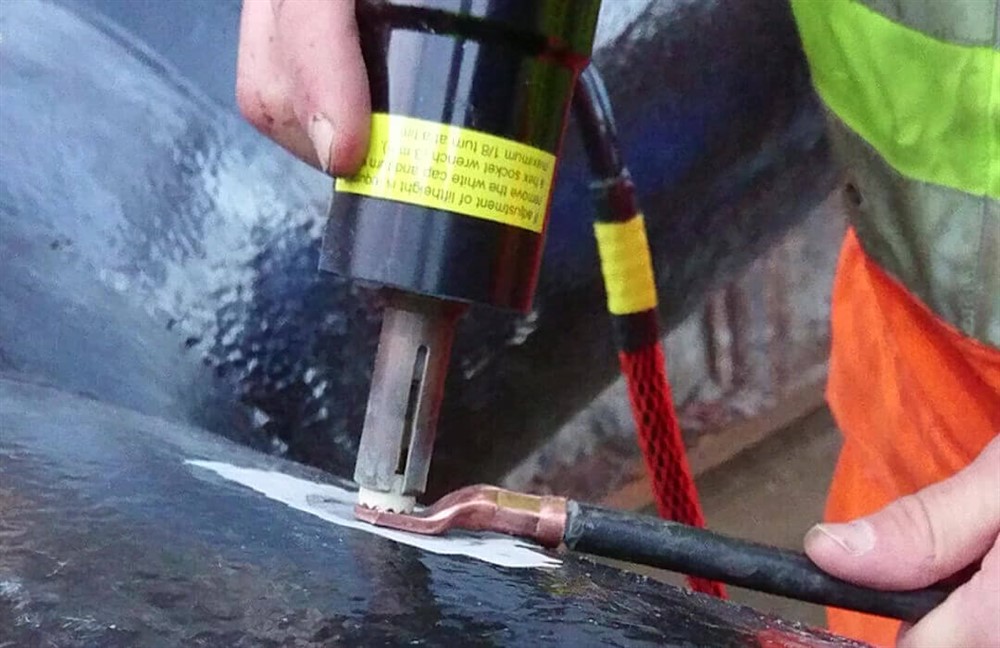

All Safetrack equipment comes with the well reputated, easy to use, automatic (no setting required) S4 brazing gun (patent) and the constant energy electronic that ensure that correct energy is delivered in every brazing, no matter which level of battery voltage. Patent.
This equipment saves a lot of cost since it use brazing pins without fusewire which cost less and one do have no "waste" of misfired brazing pins that the old type with fusewires have.

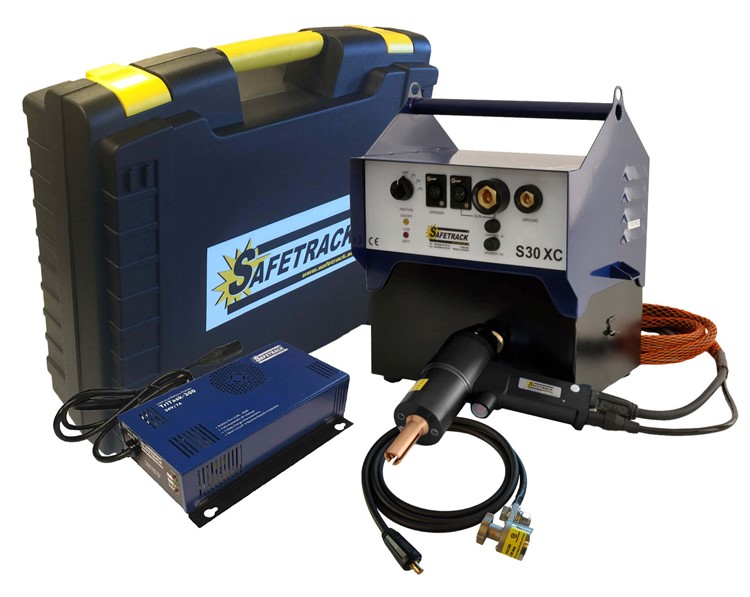

SAFE 9307CP is Delivered with:
Brazing gun S4 Automatic SAFE 9102
(The gun is delivered with a mounted Pin Holder (A) SAFE 9211 and Ring Holder 9202.)
Battery box incl. 3 x 16Ah batteries w.cables SAFE 93201600
Battery Charger 36V/7A-100/240V, SAFE 8049
Ground magnetic, 2,7m OnOff SAFE 80730
Accessory Case SAFE 95240
Shoulder strap SAFE 9523
Protection glasses SAFE 8043
Carbide burr SAFE 8014
Technical Specification:
Voltage 36 V DC
Number of Brazings 50-60
Weight (with 16Ah batteries): 25 kg
Dimensions: Width 230mm, Height 390mm, Length 280mm
Accessories:
Grinding machine BGD800 Makita SAFE 593070
Battery Charger 36V/7A-100/240V, SAFE 8049
Battery charger car use SAFE 8055
High power batteries 13 AH SAFE 8092
High power batteries 16 AH SAFE 8093
Ground w.super magnetic f.CP SAFE 8069
Ground Grip SAFE 8071
Grinding wheel, silicone free SAFE 8025
Carbide burr, Type C SAFE 8014
Carbide burr, Type C extended SAFE 8014XL
Handy 2-rail trolley SAFE 9361
Separate battery box f.16Ah SAFE 9320 exl. batteries. With lid and handle.
Separate battery box f.13Ah SAFE 9321 exl. batteries. With lid and handle.
Battery adapter for charging SAFE 9318 Of Separate battery box
Angle Device for S4 gun SAFE 9232
Pin Holder 8-9.5 (A) SAFE 9211
Pin Holder M8 (B) SAFE 9213
Pin holder M10 (C) SAFE 9215
Pin holder M12 (D) SAFE 9217
Ring Holder 8 to 9.5 SAFE 9202
Ring Holder M8/M10/M12 SAFE 9204
Extension Set for S4 / 8 to 9.5 SAFE 9227
Extension Sets threaded pin SAFE 9229
