Hydr. rälssträck 1-räl FCS MIT 70 LW

Part No 58528000
Weight (kg) 257
E-mail for price
SEK
To order
Product question

What would you like to know about Hydr. rälssträck 1-räl FCS MIT 70 LW?

Send

Description

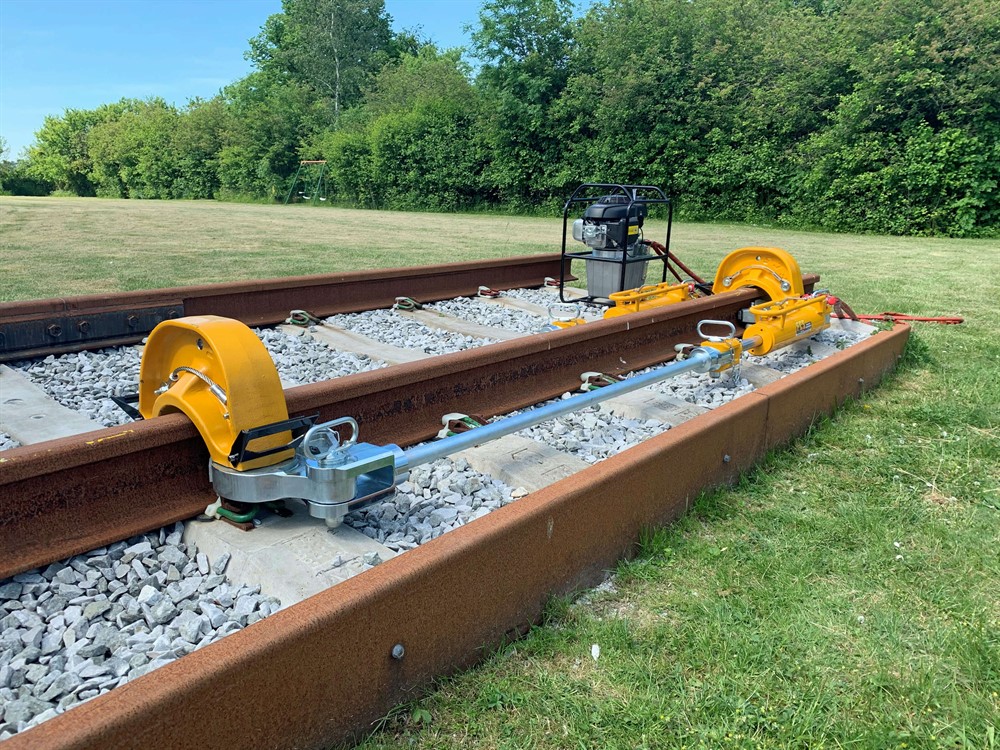

Hydraulic rail stressor MIT 70 LW

Designed to execute totally safety the alluminothermic welding of the rail. It is composed of a strong structure able to withstand the high stresses of the tensile force. 700 kN Traction force.

The Honda engine comands an hydraulic junction box with a low pressure gear pump for the rapid. The petrol Honda engine, controls a hydraulic power unit with a gear pump at low pressure for rapid approach of the rail as a pump radial pin which comes into operation automatically for controlled regulation and calibrated so as to give the maximum pulling force , the control spool valve, 2 valves per cylinder with hydraulic safety lock, 4 stainless steel clamps to lock the rail anchor and dowel bar shooting.

If wanted, the equipment can be supplied with manual hydraulic pump and built-in oil tank of 7.5l.
