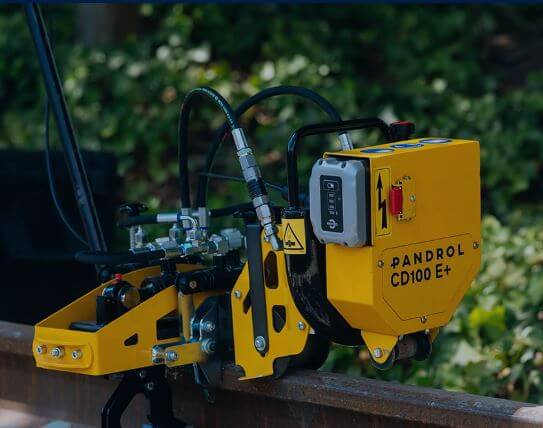

The CD100 B clipping machine is designed for clipping and declipping Pandrol Fastclips. Compact and lightweight, it is suitable for use by a single operator and can be easily carried onto site.
The CD100 B is composed of three parts: a power pack and two clipping tools. As part of its ergonomic design, a weight-bearing wheel runs along the rail, dramatically reducing the physical strain on the operator.
Although optimised for smaller clipping and declipping applications, the CD100 B is versatile and can be coupled quickly and easily to other equipment. If required, it can lift sleepers up to 10mm.Powered by battery, this emission-free clipping machine is suitable for use in tunnels and stations and in densely populated areas where working safely with low noise and clean air is a priority.
TECHNICAL FEATURES:
Advanced battery technology
The CD100 B is equipped with a reliable lithium-ion battery, designed for high-power applications. Capable of hundreds of charges without any loss of power, the battery has a low self-discharge rate.
Modular design

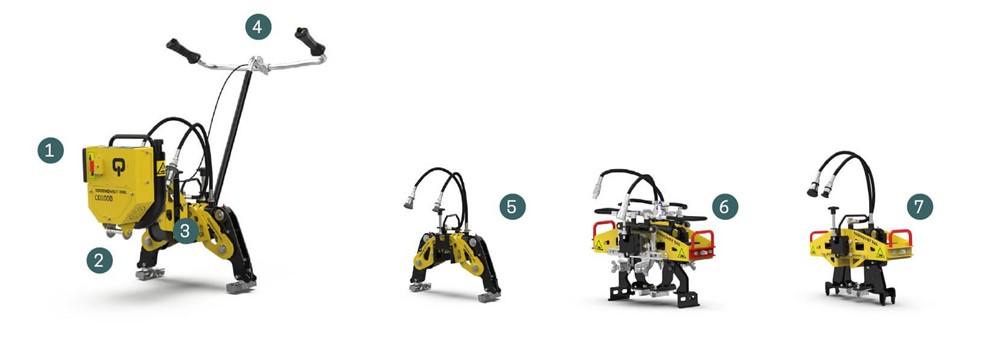

Designed with a quick connect interface, the patented CD100 B comes in three modules: the power pack, the clipping tool and the declipping tool.
Made for Pandrol Fastclip
Compatible with Fastclip FC up to 1500 series of clips (15mm in diameter), Fastclip FE and FCX.
Compact
The powerful tool’s small size means the CD100 B can be stored in the boot of a car and carried onto site by one person for quick intervention and reduced cost.
Up to 10 mm sleeper lift
This small but strong tool can lift a sleeper up to 10 mm when the rail is not in contact, to guarantee a perfect mounting.
Ergonomic features

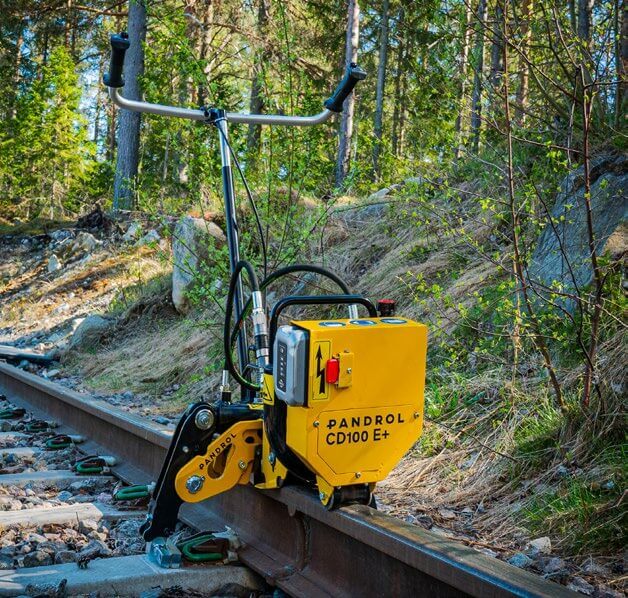

The CD100 B is equipped with an adjustable handle and a weight-bearing wheel that runs along the rail to reduce physical strain on the operator.
ADVANTAGES:
The CD100 B’s compact, portable design means that it can be transported easily and used by a single operator, saving time and labour costs.
The machine’s ergonomic features, including adjustable handle, weight-bearing wheel and light weight, make it safer and more convenient for users.
An environmentally-friendly, battery-powered tool with no exhaust smoke and reduced noise, the CD100 B makes a positive contribution to clean working environments.
Because it is emission-free, it is suitable for use in tunnels, stations and densely populated areas.
The CD100 B replaces the need for manual hand tools for small jobs, eliminating the risk of tools slipping and physical stress injuries.
The tool has been designed to be extremely versatile. It can be coupled to other equipment and is strong enough to lift a sleeper up to 10mm
Technical Specifications
Equipment: CD100 B PowerUnit
Weight: 18,5kg
Height: 400mm
Length: 480mm
Width: 260mm
Max working force: N/A
Capacity: 300 clipping operations
Battery capacity: 6Ah-82v
