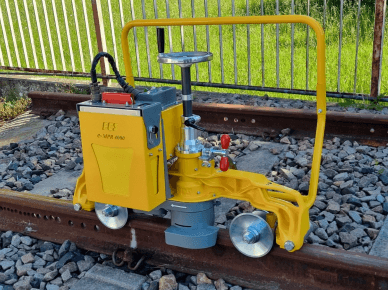

e-MPR 4000 – Battery-Powered Rail Grinding Machine
The e-MPR 4000 is a powerful and modern battery-powered rail grinding machine designed for reprofiling the rail head after aluminothermic welding. It combines high performance, easy handling, and maximum safety – all without the need for fuel or external power cables.
Battery Power for Maximum Flexibility
The machine is equipped with an advanced 48V Li-ion battery (50 Ah, 2400 Wh) providing up to 50 minutes of continuous operation on a full charge. Charging time is approximately 4 hours.
Powerful Brushless Motor
A 7 kW brushless motor delivers 45 Nm of torque and a grinding speed of 3600 rpm, ensuring stable and efficient grinding even under demanding conditions.
Stable and Precise Guidance
-
Ball-bearing mounted guide wheels and durable support rollers
-
Adjustable motor inclination arc for precise grinding positioning
-
Aluminum machine body for reduced weight and long-term durability
Ergonomic and Safe Handling
The machine features a comfortable control handlebar and two integrated grab handles for easy lifting and maneuvering.
Available Accessories
Technical Specifications
| Specification |
Value |
| Motor |
Brushless |
| Motor power |
7 kW |
| Torque |
45 Nm |
| Runtime per charge |
approx. 50 minutes |
| Grinding speed |
3600 rpm |
| Grinding depth / stroke |
60 mm |
| Grinding stone size |
150 × 73 × 57 mm |
| Machine dimensions |
1000 × 910 × 430 mm |
| Dry weight |
73 kg |
| Battery weight |
14 kg |
