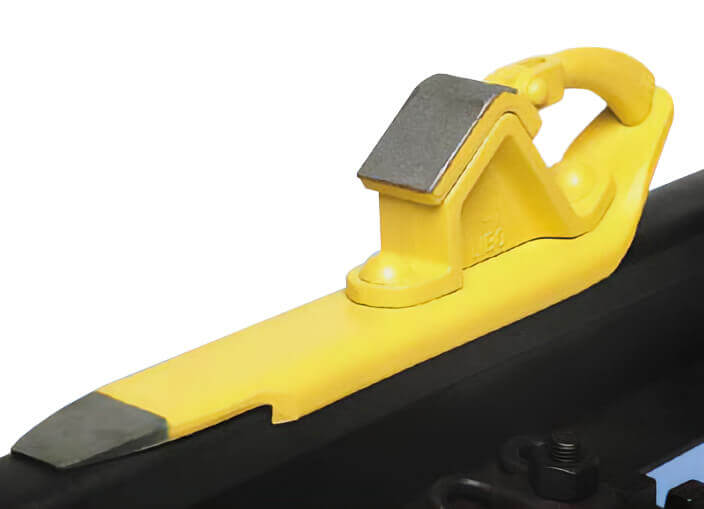

Magnet-fixed brake shoe with left-hand support for SJ 50 and UIC 60
This brake shoe is designed for SJ 50 and UIC 60 rails and features magnets for fixation to the rail. The movable cap automatically adjusts to the wheel's angle to provide an even contact surface during braking.
-
Magnetic fixation: Built-in magnets hold the shoe in place and prevent it from falling off due to vibrations.
-
Self-aligning cap: Adjusts its position according to the wheel to ensure correct alignment.
-
Left-hand support: Geometrically designed with a support edge on the left side for specific track placement.
-
Stable design: Heavy-duty construction ensures the shoe remains in place under load.
The product is used to secure wagons on SJ 50 and UIC 60 rail types. The magnets serve as a safety measure to prevent the shoe from being displaced before the wheel makes contact.
The movable cap on top reduces point loading by centering the pressure from the wheel. This prevents uneven wear and provides more predictable braking during shunting and stabling in rail yards.
The support edge on the left side is adapted to provide correct stability against the rail head in the direction of travel. The yellow signal color makes the component clearly visible to personnel working in the track area.
Technical specifications
-
Product type: Brake shoe with magnet
-
Version: Left-hand
-
Rail type: SJ 50 and UIC 60
-
Support: Left-side support edge
-
Function: Self-aligning cap and magnetic attachment
