Safe and contactless testing of insulated rail joints with direct resistance indication.
No more mistaken removal of faultless joints!
- Unique design and function with safe and contactless testing of insulated rail joints with direct resistance indication.
- Never again does a fault free joint show as defect.
- No more exchanging fault free joints.
- No more mistaken removal of fault free joints
- Measurements is shown as an authentic resistance value, not as in older types where the status was only shown with different coloured LED's.
- Measurements are saved in the instrument.
- Huge cost savings when correctly measuring insulated rail joints
Technical Data
Measuring frequency 28.6 kHz
Protection class II
Protection degree IP 54
Resistance measuring range 0 Ohm # 50 Ohm (display > 50 Ohm)
Measuring tolerance +/-(20% + 1 digit)
Operating temperature range -20°C # +55°C
Display 128 x 64 Pixel, illuminated
Buttons Membrane keyboard, 6 buttons
Power supply Tester 1 accumulator Li-Ion type PA-LH201.K01.R001 or
3 batteries / accumulators size AA; preferred batteries LiFeS2, type Energizer Ultimate Lithium L91 or accumulators NiMH with minimum 2200 mAh
Power supply Generator 1 accumulator Li-Ion type PA-LH201.K01.R001 or 3 batteries / accumulators size AA; preferred batteries LiFeS2, type Energizer Ultimate Lithium L91 or accumulators NiMH with minimum 2200 mAh
Dimensions transport case 420 x 320 x 160 mm
Weight (accessory included) 6 kg
Inspection
It is recommended to have the device inspected every 2 years.
Technology
- In most cases, track circuits of individual track sections are isolated by insulation joints. A precise detection of insulated rail joint bridges is indispensable to ensure safe operation without failure.
- Classic methods of measuring insulated joints are based on dipolar measurements. Measurement follows Ohm’s law, but only the voltage measured over the joint is reliable. Current measurement is realized via a shunt in the tester. This way, currents through the insulated joint and, additionally all parallel current paths close to the insulating joint are measured. Parallel current paths can be caused by faulty insulations of connecting rods and metal parts, as well as by intended connections via impedance bond transformers. That may lead to the display of a resistance being too low and a faulty insulated rail joint.
- The Insulated Rail Joint Tester SICO 2046 offers an innovative solution providing true resistance measurements from insulated rail joints. Current measurement is taken via a separate current transducer and not, as common in most devices via an internal shunt. Just the current through the insulated joint is measured. Parallel current paths close to the insulated joint won't distort the current measurement. The tester separates the current flow from external portions, e.g. current from the impedance bond, connecting line or bedding, and distinguishes between the actual resistance of the joint and parallel loads. In addition to the contactless voltage measurement, the resistance of only the insulated joint is measured. This means no more mistaken removal of faultless joints.

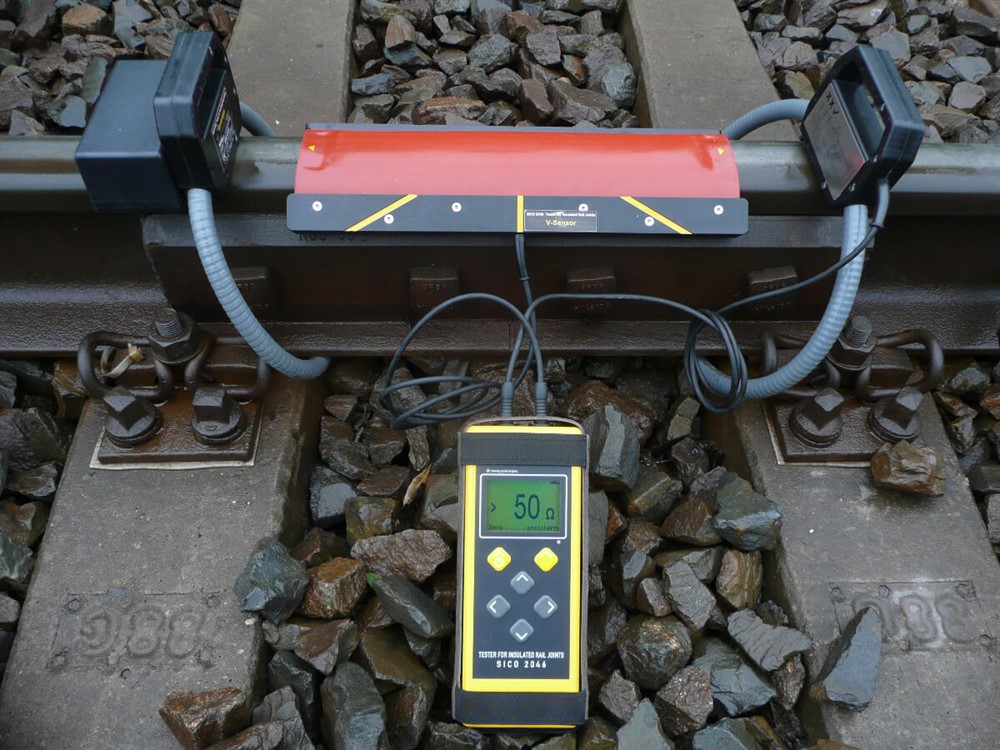

- Measurements are taken contactless. A current transducer measures the current. Voltage is taken via insulated contacts on the tester's bottom.
- A transmitter bound around the rail sends a signal.
- The test results are stored in the device.
Scope of supply:
- SICO 2046 Tester
- SICO 2046 V Sensor
- SICO 2046 C Sensor
- SICO 2046 Generator
- SICO 2046 Test resistor 33 Ohm with test probes
- 2 accumulators Li-Ion PA-LH201.K01.R001
- Charger SICO 5007 for Lithium-Ion Cells type PA- LH201.K01.R001 with manual
- SICO 2046 Protector for tester
- SICO 2046 Transport case
- SICO 2046 Manual
- SICO 2046 Acceptance Test Certificate 3.1 according to DIN EN 10204
